Summary of Contents for Reel EFX RE5

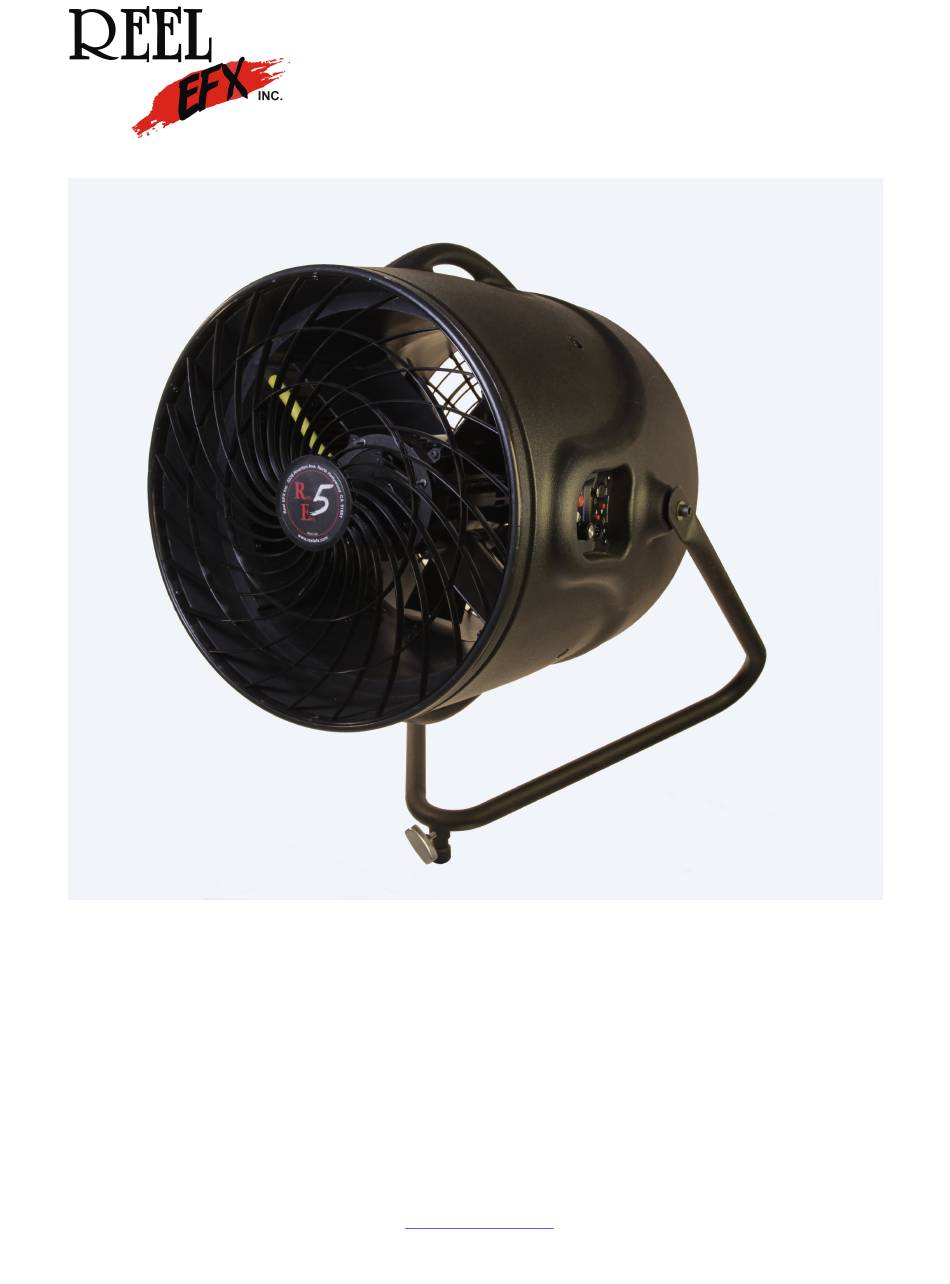

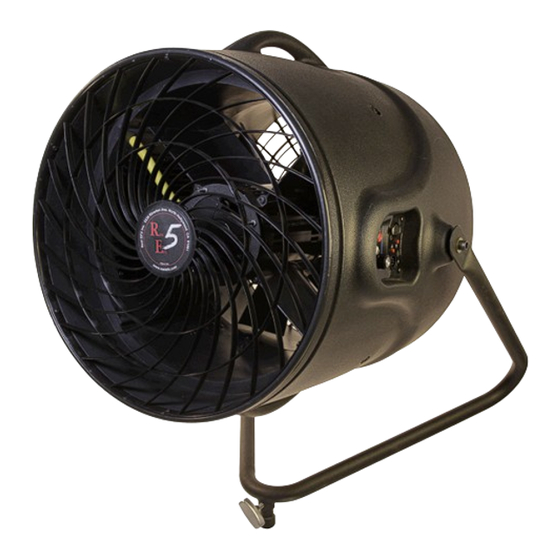

- Page 1 RE5 Fan Owner’s Manual Reel EFX, Inc. 5539 Riverton Ave. North Hollywood, CA 91601 Phone: (818) 762-1710 Fax: (818) 762-1734 www.reelefx.com...
-
Page 2: Table Of Contents
FEATURES ..........................5 SPECIFICATIONS ........................5 CONTROL PANEL ........................6 OPERATION AND SAFETY ......................7 ......................7 NTRODUCTION ........................ 7 PERATION ........................7 AFETY DMX INTERFACE ........................8 PARTS LIST ..........................9 EXPLODED PARTS VIEW…………………………………………………………………………….10 REEL EFX PRODUCTS………………………………………………………………………………..11 www.reelefx.com Page 2 of 11... -
Page 3: Important Safety Instructions
Reel EFX, Inc. RE 5 Fan Manual IMPORTANT SAFETY INSTRUCTIONS When using an electrical appliance, basic precautions should always be followed, including the following: READ ALL INSTRUCTIONS BEFORE USING THIS APPLIANCE. (NOT INTENDED FOR HOUSEHOLD USE) WARNING – TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR INJURY: Do not leave appliance when plugged in. -
Page 4: User Servicing Instructions
TROUBLE SHOOTING & TECHNICAL SUPPORT Read and thoroughly understand owner’s manual and all other safety instructions before Trouble Shooting. Qualified Personnel ONLY Contact: REEL EFX INC 5539 Riverton Ave North Hollywood, CA 91601 Phone: (818) 762 1710 Fax: (818) 7621734 Email: mark@reelefx.com... -
Page 5: Features
Reel EFX, Inc. RE 5 Fan Manual Features: Universal Voltage input Range: 115-240 VAC • Active Power Factor Correction (1.0) pf at Max Load) • Silent Smart Switching eliminates drive noise at low rpm • Performance Improvements • Faster Responding Control System 33% more power than its predecessor! ”The RE4” Improved active brake to stop blades at zero speed Eco Friendly RoHs Compliant Construction Specifications:... -
Page 6: Control Panel
Reel EFX, Inc. RE 5 Fan Manual CONTROL PANEL www.reelefx.com Page 6 of 11... -
Page 7: Operation And Safety
Operation The RE5 can draw from a range of voltage sources: 115 – 240 Vac. When connected to 115-125 Vac, a 20 Amp service should be used as well as 12/3 heavy-duty type extension cords, when required. -
Page 8: Dmx Interface
Reel EFX, Inc. RE 5 Fan Manual DMX INTERFACE Description The DMX interface is fully USITT 1990 compliant, featuring an address range of 1-512 and industry- standard 5-pin XLR connectors. The DMX input is short-circuit protected and will accept voltage up to 120VAC without damaging the interface. Operation The RE 5 Fan uses a single address to provide proportional motor control. -
Page 9: Parts List
Reel EFX, Inc. RE 5 Fan Manual PARTS LIST RE 5 ASSEMBLY ITEM DESCRIPTION Fan body Speed control Stator Strain relief Front grill Rear grill Control panel Triangular stand Leather washer Tee handle (5/16-NC) Stator screw Front/rear grill screw Control panel screw Baldor Premium Efficient motor Blade assembly Front motor mount Rear motor mount... -
Page 10: Exploded Parts View
Reel EFX, Inc. RE 5 Fan Manual www.reelefx.com Page 10 of 11... -
Page 11: Reel Efx Products
RE5 Fan Diffusion In A Can Reel EFX was founded in 1982 to address the special effects needs of commercial and film production companies. Reel EFX provides the following services: 1) Manufacturing and Development of industry-leading equipment for sale through a worldwide distribution network.
