Quick Installation Guide
LPIX15-01-S-ABF

Installation of the Logipix 15 Megapixel ABF camera

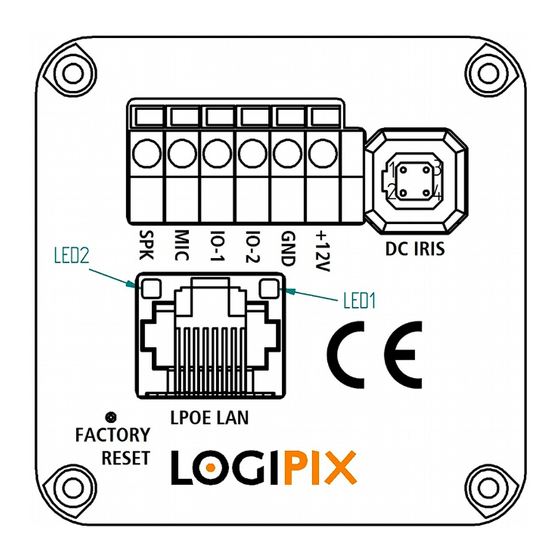

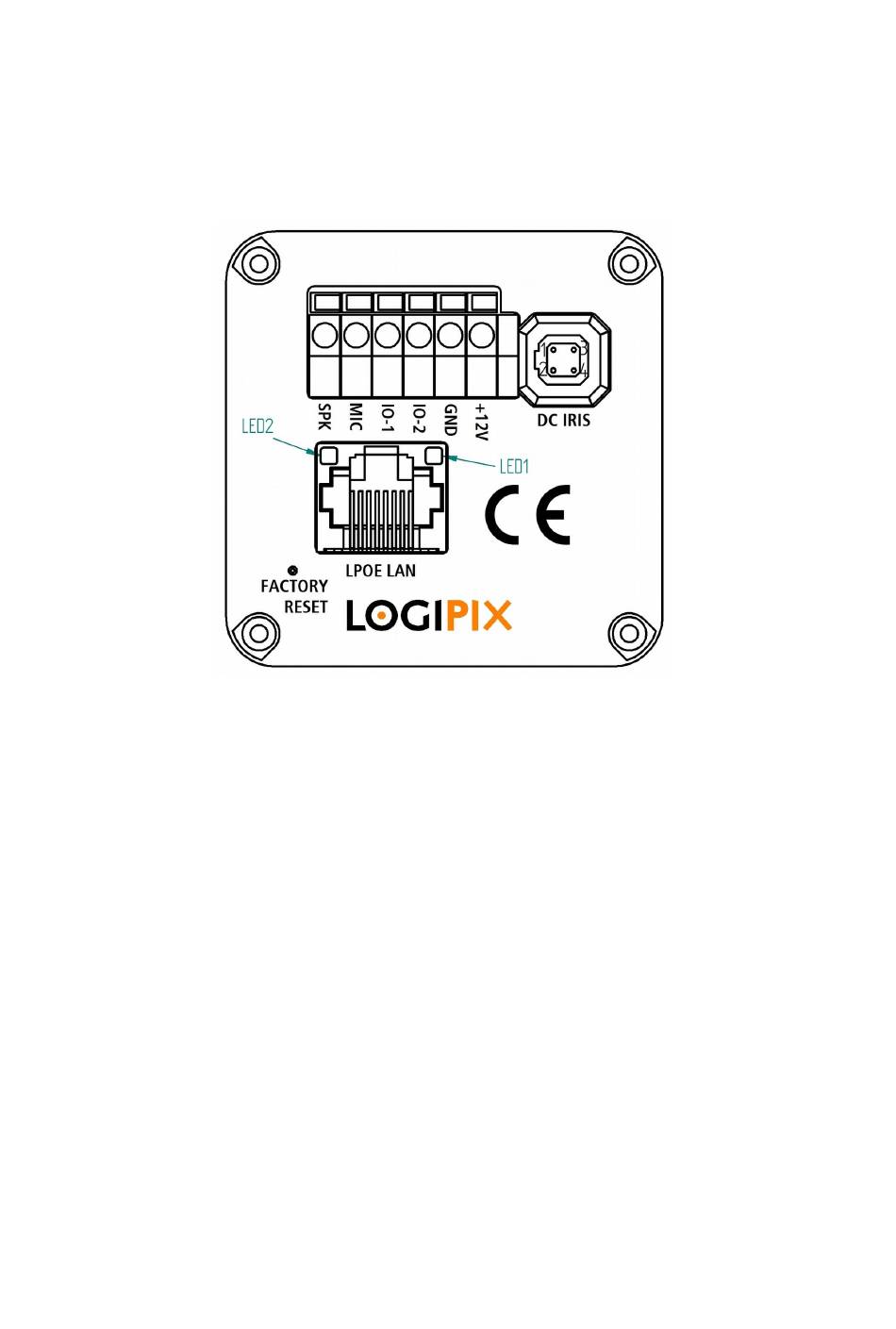

The rear view of the camera
Remove the protective cap and mount the lens
After unpacking the camera, remove the sensor's protective cap and mount
the lens as soon as possible to prevent sensor soiling. Standard CS-Mount lens
types can be connected to the camera. C-Mount lens types can be connected
with an appropriate spacer ring. Rotate the lens clockwise to fix it on the
camera. Connect the iris drive connector to the camera (if the lens has DC or P-
iris feature). The connector can be found at the back of the camera.

Connecting the LAN

Connect the CAT5 Ethernet cable with the RJ45 plug to the LPoE LAN
connector of the camera. The connector can be found at the back of the
camera. Power supply of the camera can be provided over the Ethernet cable if
it is connected to the LPoE router of the Logipix NVR.
1/3

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LPIX15-01-S-ABF and is the answer not in the manual?

Questions and answers

Summary of Contents for Logipix LPIX15-01-S-ABF

  • Page 1 Connect the CAT5 Ethernet cable with the RJ45 plug to the LPoE LAN connector of the camera. The connector can be found at the back of the camera. Power supply of the camera can be provided over the Ethernet cable if it is connected to the LPoE router of the Logipix NVR.

  • Page 2: Connect The Power Cable

    Quick Installation Guide LPIX15-01-S-ABF Connect the power cable When LPoE feature cannot be utilized, a 12V DC external power supply is necessary for the camera. Install ferrules for the copper wires of the power supply. Use a crimping tool to perform this process. Connect the 2×0.5 mm copper wire to the two-pin power connector of the camera (GND and +12V phase).
  • Page 3 Camera Log-in You can find the Logipix Camera’s IP address on a sticker. Start the SCPlayer program, and then connect to the camera by setting its IP address. Enter the default user name and password (admin/admin) in the pop-up password form.
