Summary of Contents for Aquatec Equipment AQUAPRO 02AS510

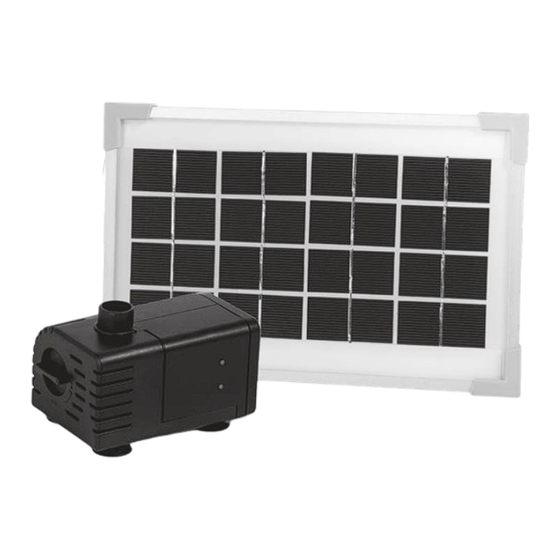

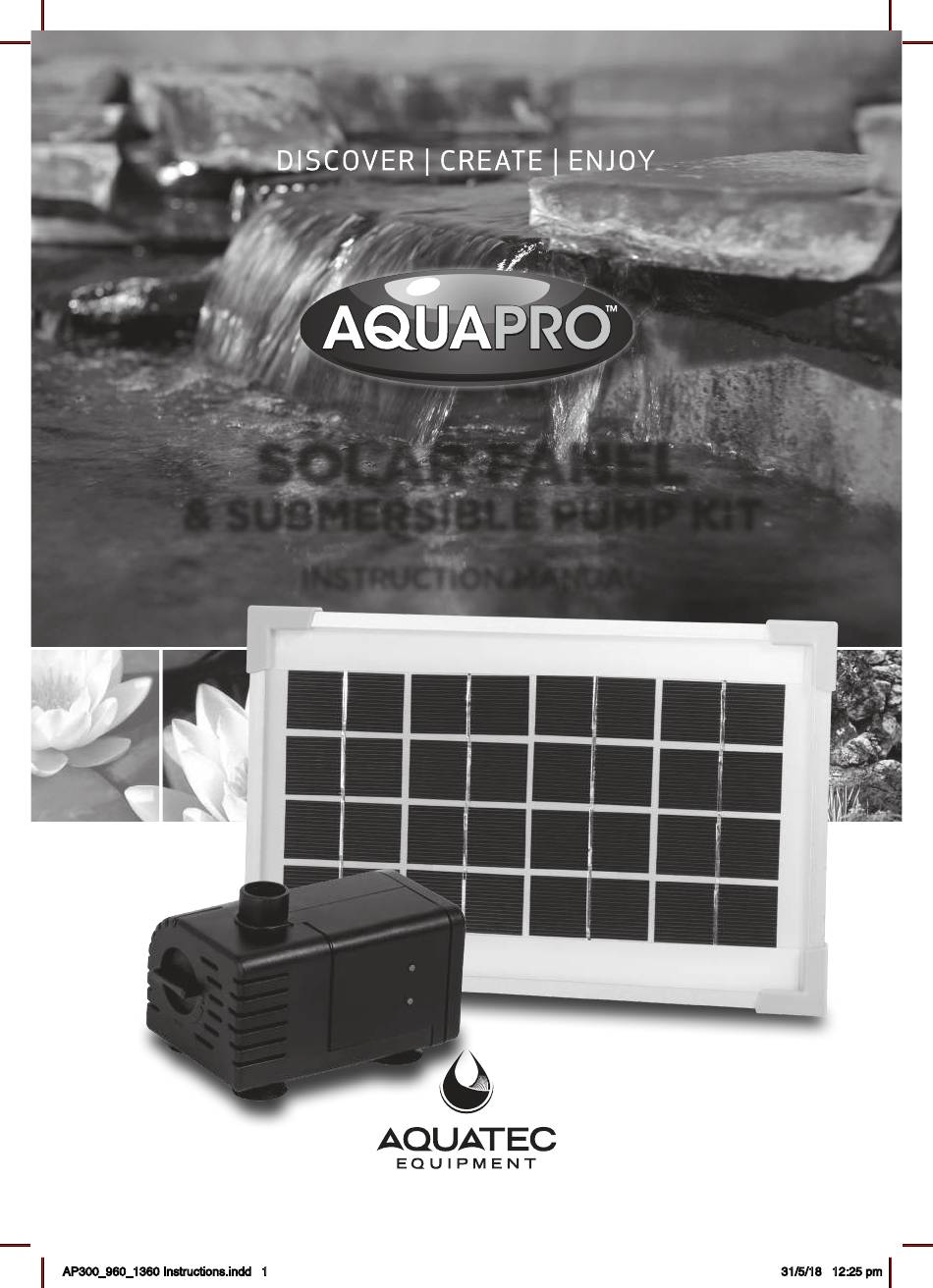

- Page 1 SOLAR PANEL & SUBMERSIBLE PUMP KIT INSTRUCTION MANUAL MODEL 02AS510 02AS512 DATE HOTLINE 1300 AQUATEC OCT 2018 v2.0 02AS514 AP300_960_1360 Instructions.indd 1 31/5/18 12:25 pm...
-
Page 2: Technical Specifications
CONGRATULATIONS ON YOUR PURCHASE OF THIS PRODUCT BY AQUAPRO, THE ANSWERS FOR YOUR WATERGARDEN MADE EASY. TECHNICAL SPECIFICATIONS Description AP300SP AP960SP AP1360SP 310L/H 980L/H 1360L/H MAX WATER FLOW IN FULL SUN 0.8m 1.0m 2.1m MAX PUMP HEAD IN FULL SUN 2.5W 4.5W 10.5W... -
Page 3: Important Safeguards
AP300SP / AP960SP / AP1360SP SOLAR PANEL & SUBMERSIBLE PUMP KIT BENEFITS Aquapro DC Solar Pumps are suitable for use in many different applications including water fountains, water features and bird baths. Your pump has a single moving part (an impeller set) enabling easy cleaning and maintenance. -
Page 4: Installation
PRODUCT SPECIFIC SAFEGUARDS • Do not operate the pump without water at any time, permanent damage may occur. • Be sure the equipment is submerged completely in the water. Do not use this pump in a dry mounted application. • The pump is designed to be used in a fresh water bird bath or water-feature. It is not to be used in any other manner or purpose. - Page 5 AP300SP / AP960SP / AP1360SP SOLAR PANEL & SUBMERSIBLE PUMP KIT ASSEMBLING THE FOUNTAIN KIT • For the application of creating a small fountain, fit a selected nozzle and extension tubes on the top of the pump outlet by pushing or screwing (depending on the model). There are different nozzles for different fountain effects.
-
Page 6: Cleaning Instructions
CLEANING INSTRUCTIONS Begin by ensuring that the power supply is disconnected from the solar panel before attempting any maintenance or adjustment of the unit. Remove the unit from the water. The filter will clog up over time. Please clean regularly (at least once a month) to ensure strong water flow. Failure to maintain the unit will result in a burnt out motor and other damage. - Page 7 AP300SP / AP960SP / AP1360SP SOLAR PANEL & SUBMERSIBLE PUMP KIT A Q U A T E C E Q U I P M E N T . C O M AP300_960_1360 Instructions.indd 7 31/5/18 12:25 pm...
-
Page 8: Spare Parts
SPARE PARTS (NOTE: THESE ARE THE MOST USED) Part No. Description AP300SP AP960SP AP1360SP Filter Housing Flow Adjuster - Removable Kit 12AS060 Kit 12AS061 Impellor Cover Impellor and Shaft Assembly 12AS064 12AS065 Motor Body only Available on Request DC Solar Pump Only - not all parts included with this model 12AS073 12AS074 Solar Panel Only... -
Page 9: Troubleshooting
AP300SP / AP960SP / AP1360SP SOLAR PANEL & SUBMERSIBLE PUMP KIT TROUBLESHOOTING Problem Reason Solution Water Pump Not Check that the plug is connected No Power Working and turned on Impellor is blocked with Clean the Impellor as per sludge or limescale the instructions Submerse the equipment underwater Running without sufficient water... - Page 10 Australia Consumer Law. The Warranty is provided to the original purchaser of the product on the following terms: • The Warranty is given by Chemkay Pty Ltd trading as Aquatec Equipment: PO Box 2087, Seville Grove, WA 6112. Tel 1300 552 202 or email sales@aquatecequipment.com.
- Page 11 AP300SP / AP960SP / AP1360SP SOLAR PANEL & SUBMERSIBLE PUMP KIT NOTES A Q U A T E C E Q U I P M E N T . C O M AP300_960_1360 Instructions.indd 11 31/5/18 12:25 pm...
- Page 12 HOTLINE 1300 AQUATEC AP300_960_1360 Instructions.indd 12 31/5/18 12:25 pm...
