Security Keypad Z-Wave
700
TM
Quick Start Guide
V1.0
Model: 7BA-KP-V-B-C0

Advertisement

loading

Summary of Contents for Leedarson Z-Wave 700 7BA-KP-V-B-C0

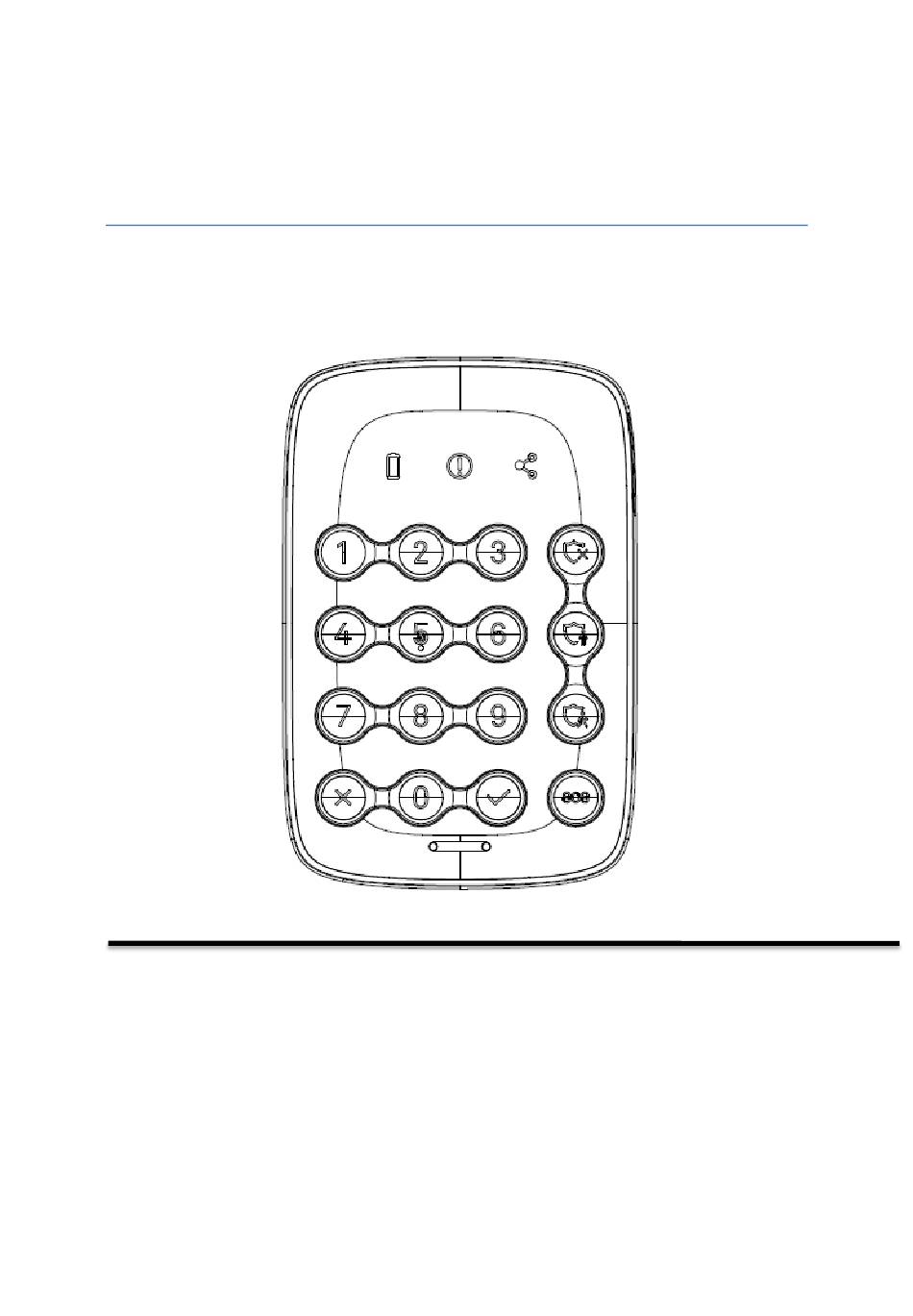

  • Page 1 Security Keypad Z-Wave Quick Start Guide V1.0 Model: 7BA-KP-V-B-C0...
  • Page 2: Safety Information

    1 Safety Information Any battery may leak harmful chemicals which may WARNING: damage skin, clothing or the inside of the alarm. TO AVOID RISK OF INJURY, DO NOT LET ANY MATERIAL LEAKED FROM A BATTERY COME IN CONTACT WITH EYES OR SKIN. Any battery may rupture or explode if put in a fire or otherwise exposed to excessive heat.
  • Page 3 2. CR123A batteries *2 (pre-installed) 3. Bracket *1 4. Installation kit a) screw*2, wall anchor*2 , b) double-sided adhesive tape*1 c) reset pin *1 5. Quick start guide*1...
  • Page 4: Product Description

    3 Product Description The keypad provides a convenient user interface to arm or disarm the security system with a PIN code. 3.1 Components Faulted sensors indicator (bypass) Battery Network indicator indicator Speaker Disarm Number pad Arm stay Arm away Emergency Approaching Sensor Cancel...
  • Page 5 Anti-tamper button Reset button Battery compartment cover Indicator symbol Status Description Battery capacity:  Green for more than 30%,  Yellow more than 11~30%  Red below 11%. There are one or more faulted sensors when arming the system, meaning some door or window is not closed properly. Network connection: ...
  • Page 6 /SOS (red) LED on, finally 0~9+confirm/delete white backlight on,totally it takes about 2 seconds after device power on. Buzzer long beeps 1 time.) Add the Keypad into the Z-Wave network via SmartStart: 1. Add Keypad DSK into the primary controller SmartStart Provisioning List (If you don’t know how to do this, refer to its manual).
  • Page 7 Solid green: Press correct pin code then press disarm button, disarm mode successful, Buzzer will short beep 2 times in 1 seconds.(Beep / beep) If disarm fail, e.g. incorrect PIN code. Disarm button LED will no reaction and Disarm buzzer will have a multiple beeps: long beep one time, short beep twice in 1.5 seconds.
  • Page 8 Entry delay is activated, buzzer will beeps 10 seconds (Count down default is 10 seconds, user can set count down timing by APP. Meanwhile gateway could also have beeps 10 seconds. It will be set by ABUS) But to save keypad power, if user set count time is 30 seconds, the keypad Entry Delay will max beep 10 seconds, and gateway will beep 30 seconds.
  • Page 9 Tamper switch is Not in the network: Notification report will be sent after the next network triggered access. This product can be operated in any Z-Wave network with other Z-Wave certified devices from other manufacturers. All mains operated nodes within the network will act as repeaters regardless of vendor to increase reliability of the network. 5 Functions After the installation, you can easily control the system using the keypad.
  • Page 10  Anti-tamper alarm: After the keypad is paired to a hub and installed on a bracket, the anti-tamper button will be pressed down. Once it is took off the bracket the anti-tamper alarm will be triggered after countdown. Perform the disarm action to stop the countdown.
  • Page 11: Changing The Batteries

    If you use adhesive tape, please clean the mounting surface with a suitable degreaser agent. Please note that some surfaces may be unsuitable for mounting using the adhesive tape. Step 2: Hang the keypad on the bracket. 7 Changing the Batteries When the battery is low the battery LED will be red and you will receive a notification in your App to remind you the battery change.
  • Page 12: Troubleshooting

    Step 4: Hang the keypad back on the bracket. 8 Trouble shooting 8.1 The keypad is not working and the indicator is not lit Make sure the batteries are installed correctly and full of power. If you have done the previous checking and it is still not responding please change a new pair of batteries or try to reset the keypad.
  • Page 13 Association Group Command List Group 1 Command List Support Command Class COMMAND_CLASS_NOTIFICATION_V4(0x71) Command NOTIFICATION_REPORT_V4(0x05) Command Class COMMAND_CLASS_ENTRY_CONTROL(0x6F) Command ENTRY_CONTROL_NOTIFICATION(0x01) Command Class COMMAND_CLASS_BATTERY(0x80) Command BATTERY_REPORT(0x03) Command Class COMMAND_CLASS_DEVICE_RESET_LOCALLY(0x5A) Command DEVICE_RESET_LOCALLY_NOTIFICATION(0x01) Notification Commands Notification Type Notification Event HOME_SECURITY (0x07) (0x00) NO_EVENT (0x03) TAMPERING_COVERING_REMOVED (0x08) MOTION_DETECTION_UNKNOWN_LOCATION Manufacturer Specific Report Parameter...
  • Page 14 Parameter Number Default Reserved Size Configuration Value 1(MSB) Configuration Value 2 …… Configuration Value n(LSB) Parameter Number Definitions (8 bit) Info Parameter Default Size Read- Format Altering Name Number Value Value Value only capabilities The Entry/Exit UNSIGNED_I Will NOT EntryExitD Delay Times (0x01) (0x0A)
  • Page 15 Switch tone (0x08) (0x01) (0x01) (0x00) Read- NTEGER capabilities Turn on: 1 only Turn off: 0 Turn on/off arm UNSIGNED_I Will alters ArmStatus status indicate (0x09) (0x01) (0x01) (0x00) Read- NTEGER capabilities Indicate after wake up only Switch Turn on: 1 Turn off: 0 Notes for special commands Basic Command Class...
  • Page 16 Update complete Network LED - Solid Green for 3s...
  • Page 17 Entry Control Command Class A) Entry Control Key Supported Report Command Description Keypad Number 0 Keypad Number 1 Keypad Number 2 Keypad Number 3 Keypad Number 4 Keypad Number 5 Keypad Number 6 Keypad Number 7 Keypad Number 8 Keypad Number 9 B) Entry Control Event Supported Report Command Data Type: Data Type...
  • Page 18 Stay Mode button is pressed. Keypad will sent entry control notification (event type=0x12)when the 0x12 ALERT_PANIC “SOS” button is pressed. Keypad will sent entry control notification (event type=0x19)when the “x” 0x19 CANCEL button is pressed.
  • Page 19 Indicator Set Command 1. Set display status state to the Keypad, received from a Z-wave gateway 2. Indicator has 1 byte payload that is defined for the keypad in the following manner Status Modifier Status States Status Modifier:  Status Modifier for Entry Delay and Exit Delay is a time field that defines how long to run the state feedback, Defined Time Field Status Modifier use: 0x0 = 0sec...
  • Page 20 Status System response Description States Disarm Mode LED Icon: solid GREEN 0x01 Disarmed Speaker: short beep twice in 1 seconds...
  • Page 21 Away Mode LED Icon: solid BLUE 0x02 Armed Away Speaker: long beep once Home Mode LED Icon: solid BLUE 0x03 Armed Stay Speaker: long beep once. 0x04 Alarming All Mode LED and SOS LED blink Bypass LED: solid yellow. 0x05 Bypass Speaker: long beep one time, short beep twice Entry Delay,...
