User Manual

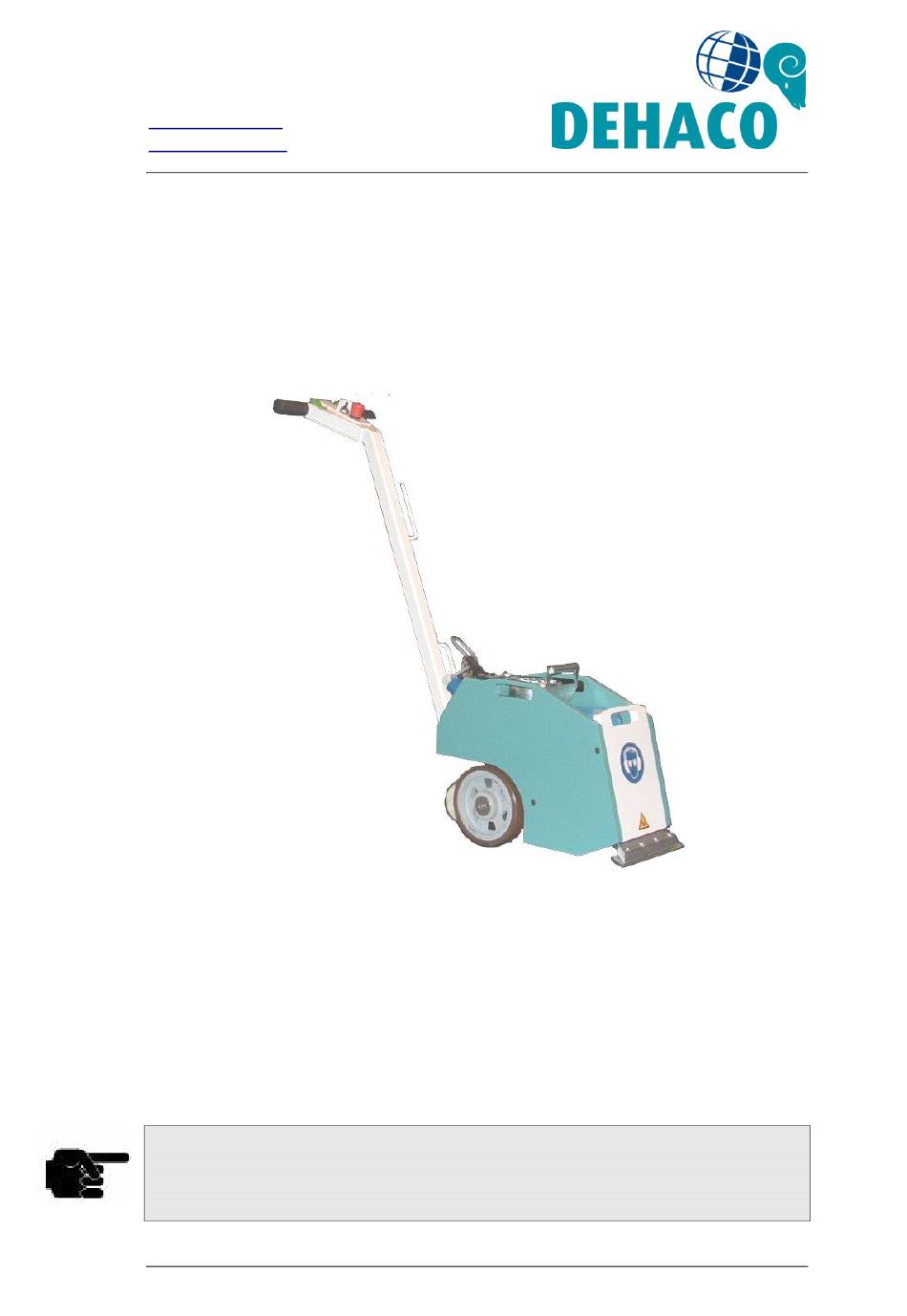

FLOORSTRIPPER
DEHACO DTS-100
Specs - Safety – Use - Maintenance
CAUTION!
All persons involved in the installation, commissioning, operation,
maintenance and repair of this product, should have been given these
instructions!
1
User Manual
-october
-blz
-
Floor stripper DTS-170 v1.0
2011
Advertisement
Table of Contents
Related Manuals for DEHACO DTS-100
Summary of Contents for DEHACO DTS-100
- Page 1 Tel.:+31(0)252 417 950, fax: 418 531 www.dehaco.nl info@dehaco.nl User Manual FLOORSTRIPPER DEHACO DTS-100 Specs - Safety – Use - Maintenance CAUTION! All persons involved in the installation, commissioning, operation, maintenance and repair of this product, should have been given these...
-
Page 2: Table Of Contents
This manual has been compiled with all possible care, but Dehaco B.V. is not responsible for any errors in this manual of the consequences thereof. -
Page 3: Introduction
1. Introduction Thank you for purchasing a Dehaco floor stripper. This gives you a machine available according to the latest state of the art, which you can use for many years trouble-free when used correctly This manual aims to familiarize you with the operation, to give you to work safely, and guidelines for periodic maintenance. -
Page 4: General Description
Tel.:+31(0)252 417 950, fax: 418 531 www.dehaco.nl info@dehaco.nl 3. General Description The Dehaco floor stripper is designed for optimal use, high capacity and long life. We designed a simple but constructive high quality floor stripper, tested in practice and put into production . - Page 5 16 direction control button driving wheel drawbar RESET / ON button half side plate (ballast) power connection front plate (ballast) plug for drawbar User Manual -blz Floorstripper DTS-100 v1.0 October 2011...
-
Page 6: Intended Use
Thee Dehaco floorstripper type DTS-170: Is designed to remove carpet and adhesive residue in a simple manner Is intended for use with the associated Dehaco tempered steel blade Is intended for use on paved ground (inside) ... -
Page 7: Safetey
WARNING!! There is immediate chance of danger on personal injury, damage to the machine and the environment during inexperienced and incompetent use! Keep bystanders at a safe distance from work! User Manual -blz Floorstripper DTS-100 v1.0 October 2011... - Page 8 Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control. l) Consider (besides the above mentioned rules) the local conditions and regulations as well! User Manual -blz Floorstripper DTS-100 v1.0 October 2011...
-
Page 9: Transport And Storage
Is the floor stripper not going to be used for a long time, proceed as follows: Clean the machine. Lubricate the machine according to maintenance schedule (chpt.9) Store the machine in a dry place and cover it. User Manual -blz Floorstripper DTS-100 v1.0 October 2011... -
Page 10: Operation
6 mm Allen Key. If a nut gets loosened at the back: use the supplied spanner 13. Plug the power cable into the socket on the stripper. THE FLOOR STRIPPER IS NOW READY TO BE USED! User Manual -blz Floorstripper DTS-100 v1.0 October 2011... - Page 11 Set the stripmotor to “0/OFF” Remove the blade before transport! CAUTION!! Before pressing the “on / reset” button ALWAYS put the strip motor on “0” to avoid overload power! User Manual -blz Floorstripper DTS-100 v1.0 October 2011...
-
Page 12: Maintenance
Keep the machine clean! This reduces the risk of accidents and works pleasantly! Don’t spray clean the floor stripper! Dry cleaning! lubricate the eccentric bearing on the front. A stroke with a grease gun with standard EP2 grease is sufficient. User Manual -blz Floorstripper DTS-100 v1.0 October 2011... -
Page 13: Failures
10. Failures This chapter provides general guidelines for troubleshooting the machine, not a step-by-step search diagram. The Dehaco floor stripper is solid built and will operate trouble-free for a long time when used within the implicated standards. WARNING! Let electrical defaults be repaired only by a qualified person using only original spare parts. -
Page 14: End Of Lifespan
..These can be handed separately for recycling. 12. Warranty For the Dehaco floor stripper a warranty period of 6 months applies. This warranty means that within this period metal- and manufacturing faults will be repaired free of charge, AFTER REVIEW OF DEHACO B.V. -
Page 15: Declaration Of Conformity
(shielding etc.). c) Inform the user about the residual risks (stickers, manual). 14. Spare Parts All parts required for maintenance or repair of the machine are available from your dealer or Dehaco B.V. 15. Attachments Overview drawing ... -
Page 16: Electrical Schedule
DEHACO B.V. Kruisbaak 25, 2165 AJ Lisserbroek (NL) Postbus 189, 2160 AD Lisse (NL) Tel.:+31(0)252 417 950, fax: 418 531 www.dehaco.nl info@dehaco.nl 16. Electrical schedule User Manual -blz Floorstripper DTS-100 v1.0 October 2011... -
Page 17: Eg Declaration Of Conformity
2002/96/EG AND IS IN ACCORDANCE WITH THE FOLLOWING STANDARDS AND/OR OTHER NORMATIVE DOCUMENTS: NEN-EN 292-1 NEN-EN 292-2 NEN-EN 414 NEN-EN 5509 NEN-EN 60204-1 MADE IN Werkendam, datum: 01-10-2011 Demto B.V. A.K.J.R. Horden. User Manual -blz Floorstripper DTS-100 v1.0 October 2011... -
Page 18: Attachment 1: Parts
DEHACO B.V. Kruisbaak 25, 2165 AJ Lisserbroek (NL) Postbus 189, 2160 AD Lisse (NL) Tel.:+31(0)252 417 950, fax: 418 531 www.dehaco.nl info@dehaco.nl User Manual -blz Floorstripper DTS-100 v1.0 October 2011... - Page 19 Ballastplaat voor DTS170-4750 Stripmotor Frame DTS170-4751 Steunring DTS170-4752 Lagerblok frame DTS170-4753 Krukas DTS170-4754 Trillingdemper 40x30 DTS170-4755 Trillingdemper 30x30 DTS170-4756 Meshouder DTS170-4757 Kikkerplaat alu. DTS170-4758 Lagerblok meshouder DTS170-4759 Lagerblok onderframe DTS170-4760 Onderframe lagerplaat DTS170-4761 User Manual -blz Floorstripper DTS-100 v1.0 October 2011...
