Summary of Contents for THX Razer Mako 2.1

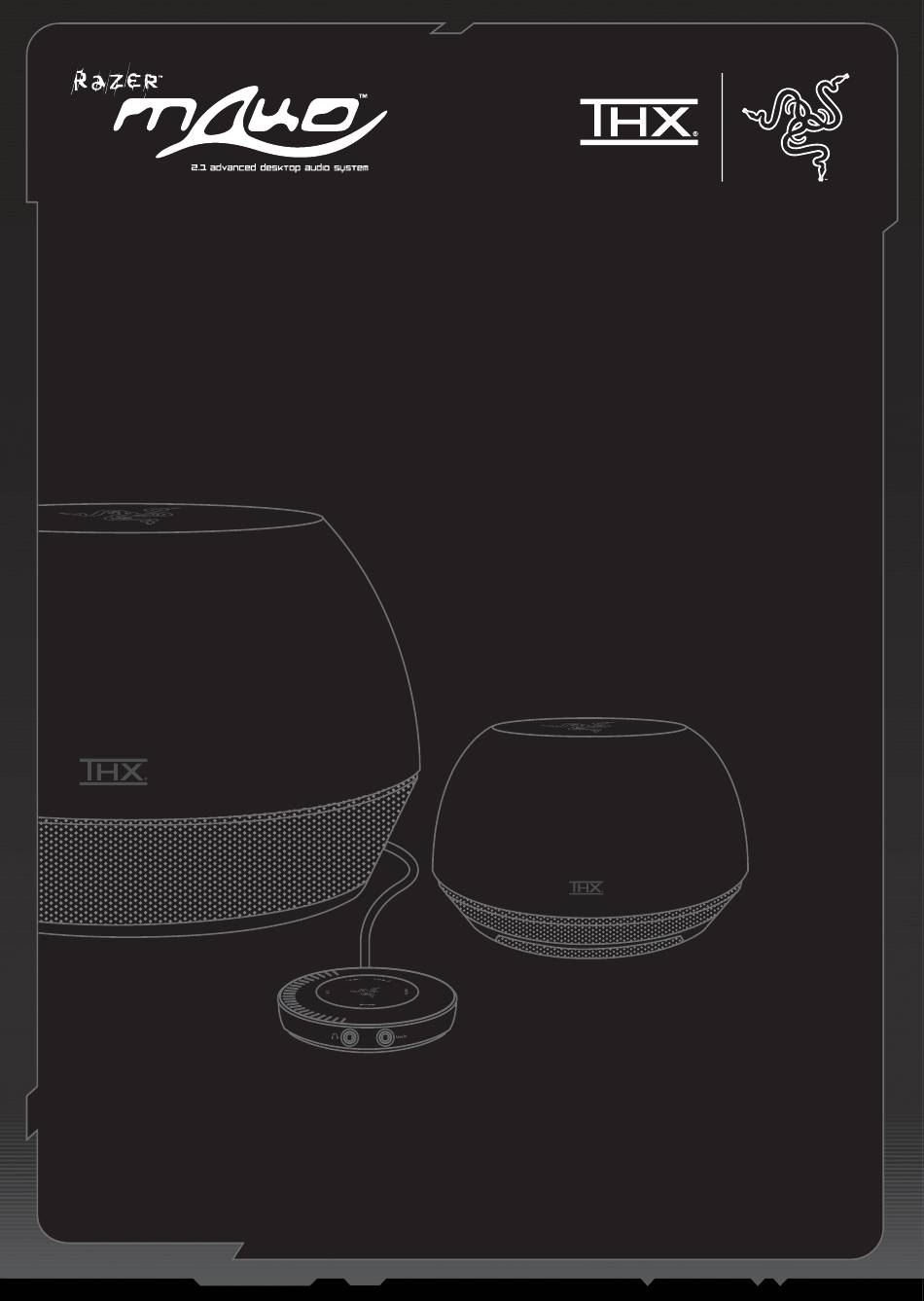

- Page 1 MASTER GUIDE F o r G a ME r s . b Y G a me r s .™ www.razerzone.com w w w .r a ze r zo n e .co m...
-
Page 2: Table Of Contents
The audio scientists from Razer™ and THX have revolutionized the Satellites downward firing speaker design, incorporating THX Ground Plane™ The THX Ground Plane™ technology guarantees best performance and THX Slot Speaker™... -
Page 3: Connecting The Razer Mako™ Components
connectinG the razer mako™ components First locate the Razer Mako™ components and the location of the relevant connections as shown in Figure A. (Figure A) A Satellite speaker ~ left B Subwoofer/amplifier C Control pod D Satellite speaker ~ right (Figure A) E Satellite speaker input F Control pod connector... -
Page 4: Connecting The Sound Source
Next, connect both the satellite speakers and the control pod as shown in Figure B. Ensure that the left satellite is connected to the left jack and the right satellite to the right jack on the subwoofer. NOTE: If either satellite cable is removed while the system is active, the Razer logo on the Control Pod will flash for up to 1 minute. If the problem is not corrected within that time, the system will turn off automatically. -
Page 5: Powering The Razer Mako
powerinG the razer mako™ Use the provided AC power cord to connect the subwoofer to a suitable AC power source. Please read the “Important Safety Information” section at the beginning of this guide carefully before plugging in the Razer Mako™. For US*, Japan and Taiwan - Voltage: 100-120V * Please note that in the United States, a polarized plug is used. -
Page 6: Using The Control Pod
usinG the control pod Touch the Line 1 or Line 2 inputs to select the audio source. The Control Pod incorporates an intuitive touch sensing interface in its laser-etched polycarbonate control surface, instead of traditional mechanical buttons. Lightly touch the surface of the LINE 1 LINE 2 input... -
Page 7: Troubleshooting
United States or other countries. For technical support, please visit www.razersupport.com. THX and the THX logo are registered trademarks of THX Ltd. ClassHD is a registered trademark of Audera. iTunes is a trademark of Apple Inc., registered in the United States and other countries. -
Page 8: Weee
limited one (1) year product warranty or your authorized distributor or dealer. You may be required to assist with the diagnosis process to verify and ascertain any issues which you may be facing with the Product. Service Razer Audio Pte Ltd (hereinafter referred to as “Razer”) warrants options, parts availability and response times may vary the Razer Mako (the “Product”) to be free from defects in depending on the country where in which a claim on the warranty... - Page 9 For G aMErs . bY Gam ers. ™ w w w .r a ze r z o n e .co m...
