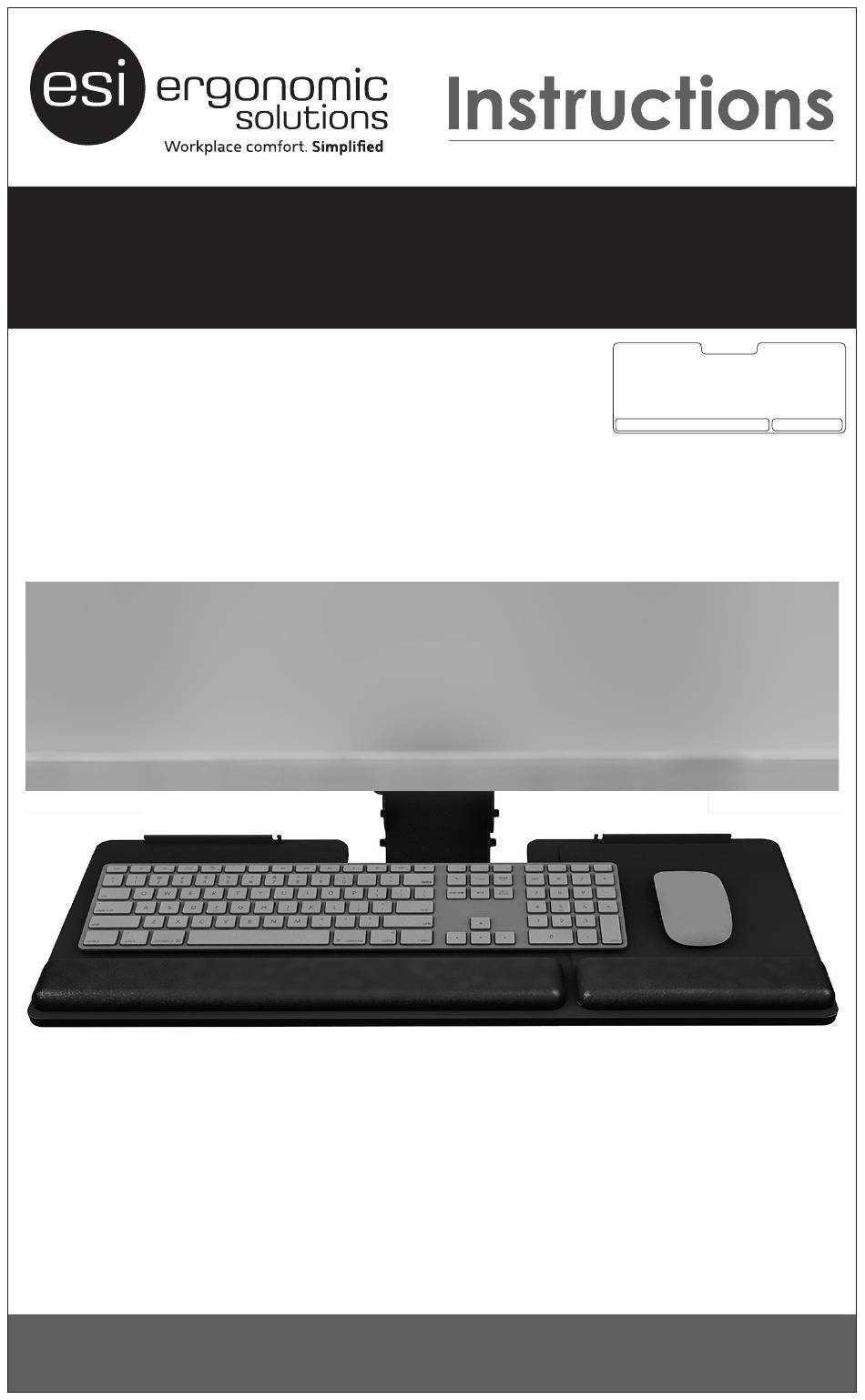

- Page 1 Solution All-Fit ARTICULATING ARM and KEYBOARD PLATFORM Model SOLUTION ALL-FIT SOLUTION ALL-FIT Rev A 4/17 SOLUTION ALL-FIT INSTALLATION AND USE...
- Page 2 SOLUTION ALL-FIT PLEASE REVIEW these instructions before beginning the installation. Check that all parts needed were provided with your order. Contact your supplier if any operates to your satisfaction. Solution 1 combines the AA100 articulating arm with the PL003-27N keyboard platform.
- Page 3 AA100-PTLO ARTICULATING KEYBOARD ARM STEP 2: Attach Track • First attach the track through the four center holes, as shown. Attach Through • Then attach the track Four Center Holes extender through the two Then Attach rear holes. Track Extender •...
- Page 4 SOLUTION ALL-FIT STEP 5: OPERATION To Tilt: • Loosen the ratchet handle, adjust the tilt angle, then tighten the handle. To Telescope: • Lift the front of the platform and slide it inward to stow or outward to access. To Raise: •...
- Page 5 SOLUTION ALL-FIT The keyboard platform for Solution All-Fit is PL003-27N (notched). Although the appearance varies, installation procedures are identical. PL003-25N PARTS PROVIDED Keyboard Platform (1) Palm Rest (1) 1 Each for Keying and Mousing Flathead Screw (4) Flange Nut (4)
- Page 6 SOLUTION ALL-FIT STEP 6: Attach Keyboard Platform • Attach the keyboard platform to the keyboard arm and track assembly IMPORTANT: locked. Use a Phillips screwdriver. Flathead Screw Flange Flathead Screw Flange...
- Page 7 • Grasp both sides of the platform and raise to the desired height. To Lower: • Grasp both sides of the platform, tilt up the front, and move down to the desired height. 800.833.3746 esiergo.com © 2017 ESI Ergonomic Solutions. All rights reserved. SOLUTION ALL-FIT Rev A 4/17...
