ASSEMBLY & INSTALLATION MANUAL
T r i m K i t f o r E v o A f f i n i t y 2 5 G

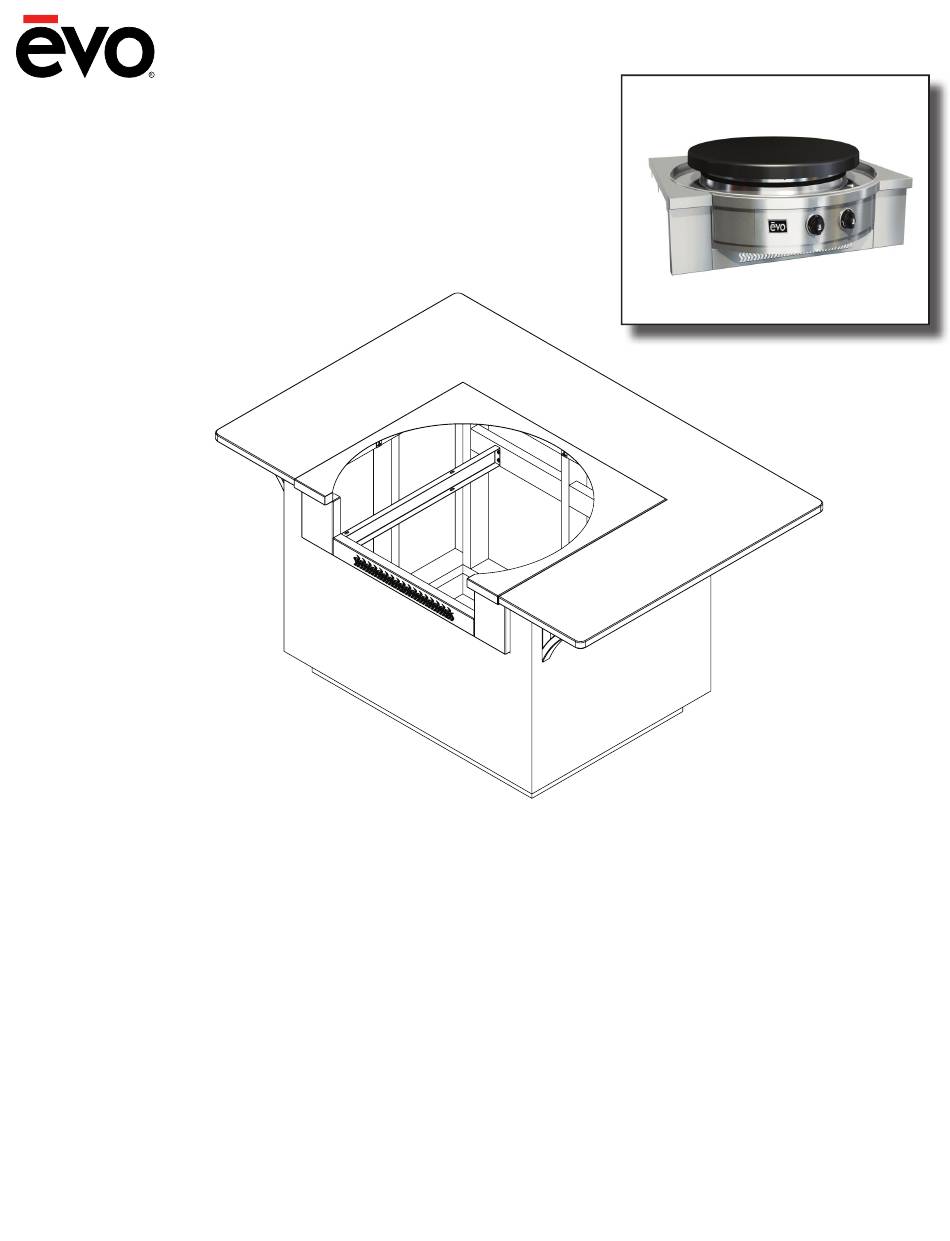

Trim Kit for Evo Affi nity 25G
( Shown installed to granite topped cabinet )
Evo, Inc., 20560 SW 115th Ave., Tualatin, OR 97062 USA
Phone 503.626.1802 | Fax 503.213.5869 | www.evoamerica.com | support@evoamerica.com
Copyright © 2019
Advertisement
Related Manuals for Evo 11-0126-ATK
Summary of Contents for Evo 11-0126-ATK
- Page 1 T r i m K i t f o r E v o A f f i n i t y 2 5 G Trim Kit for Evo Affi nity 25G ( Shown installed to granite topped cabinet ) Evo, Inc., 20560 SW 115th Ave., Tualatin, OR 97062 USA Phone 503.626.1802 | Fax 503.213.5869 | www.evoamerica.com | support@evoamerica.com Copyright © 2019...
- Page 2 Keep these instructions for future reference. Complete Now For Future Reference Date Purchased ________________________ Location Purchased _______________________ Date Installed __________________________ Location Installed _________________________ Evo, Inc., 20560 SW 115th Ave., Tualatin, OR 97062 USA Phone 503.626.1802 | Fax 503.213.5869 | www.evoamerica.com | support@evoamerica.com...
- Page 3 INSTALLATION CHECKLIST PAGE # TRIM KIT COMPONENTS TRIM KIT DIMENSIONS 5 - 6 TRIM KIT ASSEMBLY & INSTALLATION 7 - 11 Evo, Inc., 20560 SW 115th Ave., Tualatin, OR 97062 USA Phone 503.626.1802 | Fax 503.213.5869 | www.evoamerica.com | support@evoamerica.com...
-
Page 4: Trim Kit Components
TRIM KIT COMPONENTS The Trim Kit for the Evo Affi nity 25G is shipped partially assembled and requires installation and fi nal assembly. Included in the kit are six (6) separate stainless steel metal components and one (1) package of... -
Page 5: Trim Kit Dimensions
T r i m K i t f o r E v o A f f i n i t y 2 5 G TRIM KIT DIMENSIONS LINE OF SYMMETRY Evo, Inc., 20560 SW 115th Ave., Tualatin, OR 97062 USA Phone 503.626.1802 | Fax 503.213.5869 | www.evoamerica.com | support@evoamerica.com... - Page 6 T r i m K i t f o r E v o A f f i n i t y 2 5 G TRIM KIT DIMENSIONS 9.68 26.32 34.5 29.0 23.875 1.75 26.43 Evo, Inc., 20560 SW 115th Ave., Tualatin, OR 97062 USA Phone 503.626.1802 | Fax 503.213.5869 | www.evoamerica.com | support@evoamerica.com...
-
Page 7: Trim Kit Assembly & Installation
STEP 1: Prepare cabinet construction using either wood or steel framing. It is recommended to have a cutout measuring 29 1/8” depth by 34 1/5” width by 9 5/8” height. Evo, Inc., 20560 SW 115th Ave., Tualatin, OR 97062 USA Phone 503.626.1802 | Fax 503.213.5869 | www.evoamerica.com | support@evoamerica.com... - Page 8 (2) 1/4” - 20 x 1/2” SS Phillips Head Screws with Nyloc Nuts. STEP 3: Repeat same process for opposite side. Evo, Inc., 20560 SW 115th Ave., Tualatin, OR 97062 USA Phone 503.626.1802 | Fax 503.213.5869 | www.evoamerica.com | support@evoamerica.com...
- Page 9 fl ush with the front cabinet construction. Attach Support Beam to Back Wall Brace using suitable construction screws (not included). Evo, Inc., 20560 SW 115th Ave., Tualatin, OR 97062 USA Phone 503.626.1802 | Fax 503.213.5869 | www.evoamerica.com | support@evoamerica.com...
- Page 10 For more stability, secure Trim Kit with up to eleven (11) more screws (not included) in provided holes as shown. Evo, Inc., 20560 SW 115th Ave., Tualatin, OR 97062 USA Phone 503.626.1802 | Fax 503.213.5869 | www.evoamerica.com | support@evoamerica.com...
- Page 11 STEP 6: Remove two (2) mounting brackets with 7/16” Open End Box Wrench installed on Evo Affi nity 25G Cooktop. STEP 7: To install the Evo cooktop into the assembled and installed Trim Kit, follow the installation instructions in the Affi nity 25G Owner’s Manual. It is recommend to seal the gap between Trim Kit and countertop with silicone (not included).
