RAZEL R99-E SYRINGE PUMP
USER'S MANUAL
DOC-227
Rev. 1.5
Copyright © 2017
All Rights Reserved
Razel Scientific Instruments
www.razelscientific.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RAZEL R99-E and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for MED Associates RAZEL R99-E

Summary of Contents for MED Associates RAZEL R99-E

  • Page 1 RAZEL R99-E SYRINGE PUMP USER’S MANUAL DOC-227 Rev. 1.5 Copyright © 2017 All Rights Reserved Razel Scientific Instruments www.razelscientific.com...

  • Page 2: Table Of Contents

    R A Z E L S C I E N T I F I C I N S T R U M E N T S R 9 9 - E M A N U A L TABLE OF CONTENTS Chapter 1 ....................
  • Page 3 R A Z E L S C I E N T I F I C I N S T R U M E N T S R 9 9 - E M A N U A L Available Flow Rates..................16 Pump Motor .....................

  • Page 4: Pump Overview

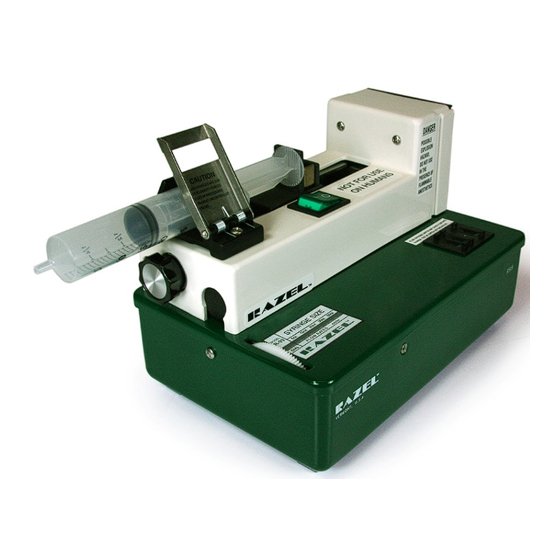

    R 9 9 - E M A N U A L Pump Overview The Razel R99-E multiple speed syringe pump is compatible with syringe sizes from 5 to 50 cc and includes a safety shut-off switch that stops the pump when the end of the syringe is reached.

  • Page 5: User Interface

    R A Z E L S C I E N T I F I C I N S T R U M E N T S R 9 9 - E M A N U A L User In terface Figure 1.3 –...

  • Page 6: Chapter 1

    R A Z E L S C I E N T I F I C I N S T R U M E N T S R 9 9 - E M A N U A L Figure 1.7 - Pump Mechanism Components Figure 1.8 - Syringe Components Labeled - 3 - DOC-227 Rev.

  • Page 7: Automatic Shut-Off Switch

    R A Z E L S C I E N T I F I C I N S T R U M E N T S R 9 9 - E M A N U A L Automatic Shu t-Off Switch The automatic shut-off switch stops an infusion if the pump reaches the end of the syringe.

  • Page 8: Loading A Syringe

    R A Z E L S C I E N T I F I C I N S T R U M E N T S R 9 9 - E M A N U A L Loading a Syringe Care should be exercised so that the syringe is positioned correctly.

  • Page 9: Chapter 3

    R A Z E L S C I E N T I F I C I N S T R U M E N T S R 9 9 - E M A N U A L B OPTION ONLY: Ensure that the syringe tabs are properly inserted between the syringe clamp, and the retaining posts.

  • Page 10: Specialty Syringes

    R A Z E L S C I E N T I F I C I N S T R U M E N T S R 9 9 - E M A N U A L Specialty Syringes Glass Syringes Extra caution is needed when using glass syringes with a ground glass plunger.

  • Page 11: R99-E Operating Instructions

    R A Z E L S C I E N T I F I C I N S T R U M E N T S R 9 9 - E M A N U A L R99-E Operating Instructions This chapter includes operating instructions that apply to all R99-E pumps, regardless of which options are included.

  • Page 12: Selecting And Setting The Rate Using Bd Multifit

    R A Z E L S C I E N T I F I C I N S T R U M E N T S R 9 9 - E M A N U A L Selecting and Setting the Rate Using BD Multifit Syringes The movable chart on the R99-E contains the flow rates in cc/hr that correspond with five sizes of BD Multifit...

  • Page 13: Option-Specific Operating Instructions

    R A Z E L S C I E N T I F I C I N S T R U M E N T S R 9 9 - E M A N U A L Option-Specific Operating Instructions This chapter includes operating instructions for R99-EJM pump equipped with the option for extended flow rates (JM).
  • Page 14 R A Z E L S C I E N T I F I C I N S T R U M E N T S R 9 9 - E M A N U A L Figure 4.2 – Using x10 Speeds Assume the desired flow rate is 250 cc/hr using a 30 cc BD Multifit syringe.

  • Page 15: Chapter 6

    R A Z E L S C I E N T I F I C I N S T R U M E N T S R 9 9 - E M A N U A L CHAPTER 6 Using Other Syringe Brands and Sizes Common Syringe Brands and Size s When using the R99-E with a syringe that is not a BD Multifit , or is a size that is not included...

  • Page 16: Other Syringe Brands And Sizes

    R A Z E L S C I E N T I F I C I N S T R U M E N T S R 9 9 - E M A N U A L Other Syringe Brands and Sizes Syringe brands and sizes not included in Figure 0.1 may also be used with the R99-E.
  • Page 17 R A Z E L S C I E N T I F I C I N S T R U M E N T S R 9 9 - E M A N U A L Figure 0.4 – Syringe Cross-Sectional Areas MULTIFIT , glass HAMILTON...

  • Page 18: Chapter 7

    R A Z E L S C I E N T I F I C I N S T R U M E N T S R 9 9 - E M A N U A L CHAPTER 7 Options B and F Option B Option B allows the pump to operate in reverse.

  • Page 19: Technical Specifications

    R A Z E L S C I E N T I F I C I N S T R U M E N T S R 9 9 - E M A N U A L APPENDIX A Technical Specifications Accuracy The R99-E Syringe Pump is accurate within 2% and is calibrated at 115 volts A.C.

  • Page 20: Pump Motor

    R A Z E L S C I E N T I F I C I N S T R U M E N T S R 9 9 - E M A N U A L Pump Motor The R99-E pushes a syringe by imparting linear motion through the rotation of a stainless steel lead screw.

  • Page 21: Maintenance Instructions

    R A Z E L S C I E N T I F I C I N S T R U M E N T S R 9 9 - E M A N U A L Maintenance Instructions Care and Use Care should be exercised to prevent fluids from coming in contact with the switches.

  • Page 22: Flow Rate Validation

    R A Z E L S C I E N T I F I C I N S T R U M E N T S R 9 9 - E M A N U A L Flow Rate Vali dati on Begin by setting all of the switches to ‘0’...

  • Page 23: Warranty Information

    R A Z E L S C I E N T I F I C I N S T R U M E N T S R 9 9 - E M A N U A L APPENDIX D Warranty Information Limited Warranty Razel Scientific Instruments Division of Mansfield Research and Development, LLC (Razel) warrants the products bearing its name and trademark against all defects in material,...
