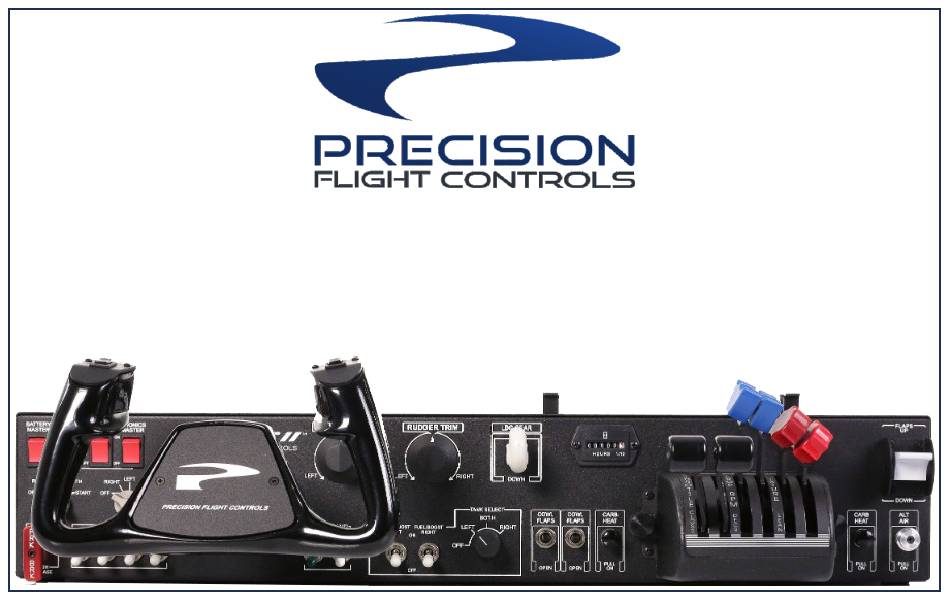

CIRRUS II DESKTOP FLIGHT CONSOle
setup and operations guide

Advertisement

loading
Need help?

Need help?

Do you have a question about the CIRRUS II and is the answer not in the manual?

Questions and answers

JD Olson
July 10, 2025

I am 82 years old and recently I had to move into easier quarters. Years ago, when I sold my last airplane because of my age, not the planes, I bought a Cirrus II simulator so I could continue. When I moved, people thought they needed to "help" me so I had put all of the manuals, cables, and DVD is a separate box but the "Helpers?" insisted on loading. Now no one can find that box. Is there a way for me to replace those things, so I can get back to flying, or do I just have to appreciate it as a fixture. Thank You.

0

Related Manuals for Precision Flight Controls CIRRUS II

Summary of Contents for Precision Flight Controls CIRRUS II

  • Page 1 CIRRUS II DESKTOP FLIGHT CONSOle setup and operations guide...

  • Page 2: Table Of Contents

    CONTENTS 1 PRECAUTIONS AND WARNINGS 2 INTRODUCTION 3 SET UP AND CONNECTION INSTALLATION OF PFCUSBHID PLUGIN FOR X-PLANE 9.70 5 SWITCHING QUADRANTS 6 SWITCHING TO VERNIER CONTROLS USBHIDPLUGIN OPTIONS 8 LIMITED WARRANTY INFORMATION...

  • Page 3: Precautions And Warnings

    THE DEVICE IS NOT A TOY. CHILDREN SHOULD NOT OPERATE IT WITHOUT ADULT SUPERVISION. ELECTRIC SHOCK / FIRE HAZARD. USE ONLY THE POWER SUPPLY PROVIDED BY PRECISION FLIGHT CONTROLS. MAKE SURE THAT THE DEVICE IS ON A FLAT STABLE SURFACE. FAILURE TO SO MAY RESULT IN THE DEVICE FALLING WHICH MAY RESULT BODILY INJURY, DEATH AND DAMAGE TO THE DEVICE.

  • Page 4: Introduction

    USB: UNIVERSAL SERIAL BUS (CONNECTION USED BY THE CIRRUS II TO THE COMPUTER) COMPATIBILITY THE CIRRUS II IS FULLY COMPATIBLE WITH X-PLANE 9.70. BETA DRIVERS MAY BE AVAILABLE FOR LATER VERSION OF X-PLANE. THE CIRRUS II CONSOLE IS NOT COMPATIBLE WITH FS9, FSX OR PREPAR3D OR PREPAR3D V4.

  • Page 5: Set Up And Connection

    THE CARRIER AND PFC TECHNICAL SUPPORT. TAKE CLEAR PICTURE OF ANY DAMAGE AND EMAIL THE PICTURES TO techsupport@flypfc.com. 2. IF CIRRUS II IS UNDAMAGED. CAREFULLY LIFT THE CIRRUS II OUT OF THE BOX. 3. SET THE CIRRUS II ONTO YOUR DESK.
  • Page 6 4 SOFTWARE INSTALLATION THE CIRRUS II CONSOLE REQUIRES TWO SOFTWARE FOR PROPER OPERATION. THE SWITCHES ON THE CIRRUS II CONSOLE WORKS WITH X-PLANE BY INSTALLING THE PFC USBHIDPLUGIN. THIS GUIDE ASSUMES THAT YOU HAVE PROPERLY INSTALLED THE X-PLANE AND THAT YOU HAVE RUN IT AT LEAST ONCE PRIOR TO INSTALLATION OF THE PLUGIN.
  • Page 7 7. AFTER SELECTING THE FOLDER, CLICK ON NEXT. 9. NOW CLICK ON FINISH. 8. CLICK ON INSTALL IN THIS WINDOW...

  • Page 8: Switching Quadrants

    5 SWITCHING QUADRANTS THERE ARE 2 MAIN STYLES OF POWER CONTROL FOR THE C2PRO. THE QUADRANT STYLE AND VERNIER STYLE. PFC MANUFACTURES DIFFERENT QUADRANTS AND VERNIER CONTROLS FOR PISTON SINGLE AND TWIN, SINGLE AND TWIN TURBO PROP, ONE, TWO, THREE AND FOUR ENGINE JETS. SWITCHING TO STANDARD QUADRANT STYLE 1.

  • Page 9: Switching To Vernier Controls

    6 SWITCHING TO VERNIER CONTROLS 1. INSTALL A TWIN NON-VERNIER QUADRANT. (SEE SECTION 5 FOR STEPS) 2. REMOVE THE FOUR (4) SCREWS AROUND THE PANEL. 3. CAREFULLY PULL THE ASSEMBLY OUT. 4. DISCONNECT THE RJ-45 CABLE. 5. CONNECT THE RJ-45 CABLE TO THE VERNIER UNIT. 6.

  • Page 10: Usbhidplugin Options

    USBHIDPLUGIN OPTIONS THE USBHIDPLUGIN HAVE USER CONFIGURABLE OPTIONS. THE OPTIONS LISTED BELOW WORKS WITH CIRRUS II. ALT AIR SWITCH CHANGE ALT AIR FUNCTION FROM ALTERNATE STATIC SOURCE TO ALTERNATE ENGINE AIR SOURCE. PILOT YOKE BUTTON CHANGES THE AUTOPILOT BUTTON ON THE YOKE FROM AUTOPILOT DISCONNECT TO PUSH TO TALK BUTTON.
  • Page 11 PFC ALT AIR SWITCH THE PFC ALT AIR SWITCH CAN BE CHANGED BETWEEN ALTERNATE STATIC SOURCE OR ALTERNATE ENGINE AIR SOURCE. TO CHANGE IT : 1. FROM THE PLUGINS MENU CHOOSE “PFC ALT AIR SWITCH” 2. FROM THE SELECTION WINDOW, CHOOSE THE OPTION YOU PREFER. PILOT YOKE BUTTON THE PILOT YOKE BUTTON REFERS TO THE AUTOPILOT DISCONNECT BUTTON ON THE YOKE.
  • Page 12 PFC STANDARD THROTTLE QUADRANTS THE CIRRUS II CAN BE MATED WITH ANY OF THE PISTON, TURBO PROP AND JET QUADRANTS AS WELL AS ANY OF THE VERNIER STYLE CONTROLS THAT PFC MANUFACTURES. THE PFC STANDARD THROTTLE QUADRANT OPTION WILL ALLOW YOU TO CHANGE THE PLUGIN SETTING TO MATCH THE QUADRANT OR VERNIER CONTROL YOU HAVE INSTALLED ON THE CONSOLE.
  • Page 13 PFC STANDARD THROTTLE QUADRANTS CONTINUED 3. TO DOUBLE CHECK THE SELECTION, GO BACK TO THE PLUGINS MENU AND CHOOSE “PFC STANDARD THROTTLE QUADRANTS.” 4. FROM THE SELECTION WINDOW YOU SHOULD SEE THE CHECKMARK ON THE QUADRANT YOU SELECTED. NOTE: THE QUADRANT SELECT SHOULD ALWAYS MATCH THE LEVER YOU HAVE INSTALLED AND NOT THE AIRCRAFT MODEL...

  • Page 14: Limited Warranty Information

    8 LIMITED WARRANTY INFORMATION WHAT'S COVERED BY OUR LIMITED WARRANY PRECISION FLIGHT CONTROLS, INC. (HEREAFTER “PFC”) WARRANTS ITS HARDWARE PRODUCTS TO THE ORIGINAL OWNER TO BE FREE FROM DEFECTS IN WORKMANSHIP AND MATERIALS WHEN USED PROPERLY FOR A PERIOD OF ONE (1) YEAR FROM THE DATE OF DELIVERY.
  • Page 15 WHAT WILL PFC DO IN THE EVENT OF A WARRANTY CLAIM (CONTINUED): IF PRODUCT IS RETURNED WITHIN THE WARRANTY PERIOD, BUT THE RETURN IS NOT RELATED TO DEFECT, A Ÿ REFUND WILL BE ISSUED LESS A FIFTEEN PERCENT (15%) RESTOCKING FEE. OBTAINING WARRANTY EVALUATION &...
  • Page 16 WITHOUT LIMITING THE FOREGOING, SELLER IS NOT LIABLE FOR BUYER'S IMPROPER USE, INSTALLATION, ACCIDENTS, OPERATION OR MAINTENANCE OF ANY PRODUCT OR OTHER ITEMS MANUFACTURED BY SELLER. Precision Flight Controls, Inc. | 2747 Mercantile Drive | Suite 100 | Rancho Cordova CA 95742 | T: 916.414.1310...
