Summary of Contents for Hored R1
- Page 1 User Manual Wireless Router - R1...
- Page 2 User Manual Brief Introduction Wireless Router R1 Product Specification> mainly introduces the product, hardware connection, usage method and usage suggestions of Hored R1 wireless router. Chapter 1: Product Overview. Product characteristics, hardware and software specifications and appearance. Chapter 2: Hardware Connections. Refers to the connection between the gateway and other devices.
-
Page 3: Chapter1: Product Overview
Chapter1: Product Overview R1 is a dual-band wireless router developed by Hored. It supports 2.4G and 5G dual WiFi, wireless maximum speed up to 1200Mbps. With independent wireless PA, the wireless coverage without dead angle. Full Gigabit Ethernet port, which is more suitable for laying more than 200M fiber places. - Page 4 Megabyte limitation, to get faster Internet access. Independent PA, External high gain antenna Independent wireless PA with high-gain antenna, easily to cover 100 ㎡ rooms Support 30 devices online at the same time With the latest MU-MIMO technology and unique multi-capacity access technology, 30 devices can be securely connected to the Internet at the same time.
- Page 5 1.2Product specifications Hardware Specification Qualcomm high performance chip, frequency 775MHz Flash 16MB 128MB DDR QCA8337 Ethernet WAN:1*10/100/1000Mbps Adaptive LAN:4*10/100/1000Mbps Adaptive 2.4GHz：QCA9563 2x2 MIMO IEEE802.11b/g/n 2.4GHz(300Mbps)20dBm WiFi chip 5GHz：QCA9886 2x2 MIMO IEEE802.11a/n/ac...
- Page 6 5.8GHz(867Mbps)20dBm WiFi Working 2.4GHz、5GHz，Support 5G in priority frequency Transmission Up to 1200Mbps rate Wireless power Maximum 20dBm 3 external omnidirectional 5dBi rod Antenna antennas Buttons RST button、Zigbee button Receiving Receive sensitivity up to -98dBm sensitivity Reset button（Long press for 5~10 seconds Button to restore the factory default configuration.）...
- Page 7 Software specification Linux Working humidity：10%~ 90%,No 1. PPPoE dialing; condensation External network 2. Dynamic IP; Input：100-240V 50/60HZ Power access 3. Static IP; DC 12V/1A Performance Ensure 30 devices with stable Internet access specification at the same time Wireless routing mode Operating mode AP mode...

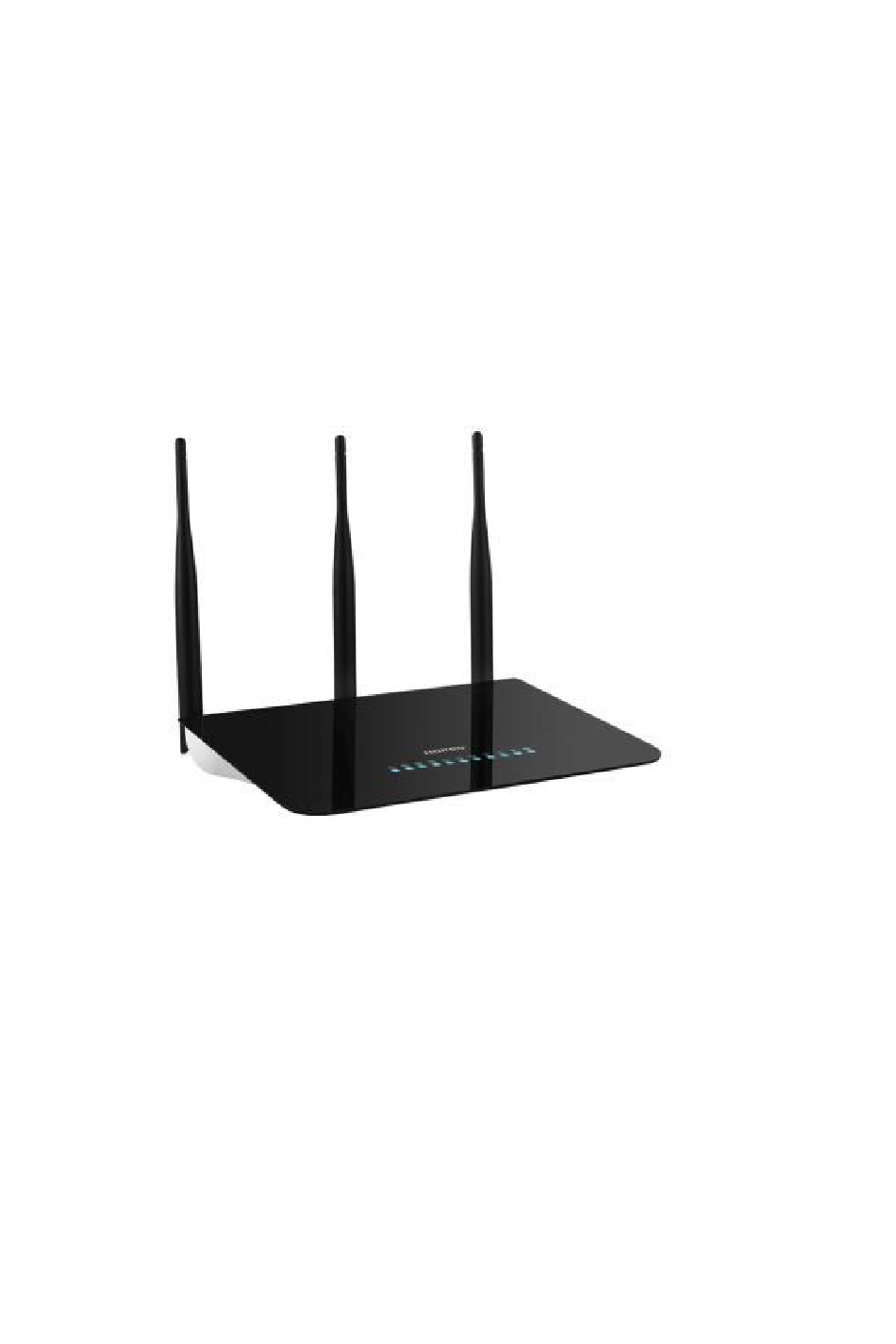

- Page 8 Wireless encryption and activation 1, Log statistics; 2,Backup and restore configuration; System Management 3, local upgrade 4. Remote upgrade; 1.3 Appearance Appearance...
- Page 9 Indicators Indicator lights： Icon Name Status Description The device is normal / The device is turned on Power The adapter is not connected / The power Indicator adapter is powered abnormally. Device system normal System indicator Device system abnormal Corresponding port is not connected / connection is abnormal.
- Page 10 LAN port Corresponding device connection is normal On/Flas Internet access is normal hing WANport(I nternet Not connected to the WAN port or abnormal indicator) Internet access 2.4G WiFi 2.4G WIFI working Normally 2.4G WIFI is off or abnormal 5G WiFi 5G WIFI working Normally 5G WIFI is off or abnormal Bluetooth:...
-
Page 11: Chapter 2. Hardware Connection
Chapter 2. Hardware connection Product connection diagram... -
Page 12: Chapter 3: Product Guide
Chapter 3: Product Guide Log in to the R1 Wireless Router Management page 1. After connecting to the router, enter the address: 192.168.108.1 to enter the management interface: 2. Enter the account number: admin, password: admin, to enter the management interface... - Page 13 Operation management page 1. System information System Information: Overview Router Version Information and LAN Port Status 2. wireless information Basic settings: View and operate the basic settings of 2.4G, 5G WIFI...
- Page 14 WDS：Wireless bridging allows the ZB100 to connect with other wireless devices 3. LAN port settings LAN port address: modify the router login address...
- Page 15 DHCP server: Set to enable and disable the DHCP server to provide IP addresses for internal network devices. 4. External network（WAN） Internet settings: set the WAN uplink type to achieve Internet access...
- Page 16 5. System Management System Settings: Reset Router Login Password Operation mode: Set the routing mode and AP mode of the wireless router. Routing mode: In this mode, the ZB100 shares the wireless network to the LAN client and device through networking. At this time, the NAT, firewall and DHCP server are enabled by default.
- Page 17 Firmware upgrade: Complete the router firmware upgrade by uploading the version file...
- Page 18 Restore/Export/Upload Settings: Complete the upload and export of settings, and restore the factory default configuration 1） System record General log file: export/view of system log files...
- Page 19 Wireless users: View basic information about wireless users DHCP lease: View the MAC, IP, and lease time of the device...
- Page 20 Routing table: View the specific routing status...
-
Page 21: Chapter 4: Packaging And Use Recommendations
Chapter 4: Packaging and Use Recommendations 4.1 Open the package and check the list below Item Quantity Description R1 wireless router Power cable For power supply Warranty Card For after-sales maintenance Product specification Used to guide users to install and use the router 4.2 Recommendations... - Page 22 5. Please turn on the power after the line connection is completed; 6. In the state of power-on of the product, please do not plug and unplug the cable if non special case; 7. Do not use it in places with excessive dust and electromagnetic radiation.
