    Industrial applications thus allowing for deeper, richer sound experiences. Despite its compact design, the MOVER packs a serious punch, Visit our website: www.powersoft.com allowing for scalability in larger projects, as well as miniaturization 6 : 1.Disposal of the packing material...

  • Page 12: Important Safety Precautions

    Risk to damaging the unit. Warranty void if open or altered. STORAGE When not in use, keep MOVER adequately protected, in a dry place. If possible use its original package to store MOVER. CONNECT WIRE WITH RIGHT POLARITY Rating label attached to one side of MOVER, shows the direction of the moving mass if a DC current is applied.

  • Page 13: Technical Data

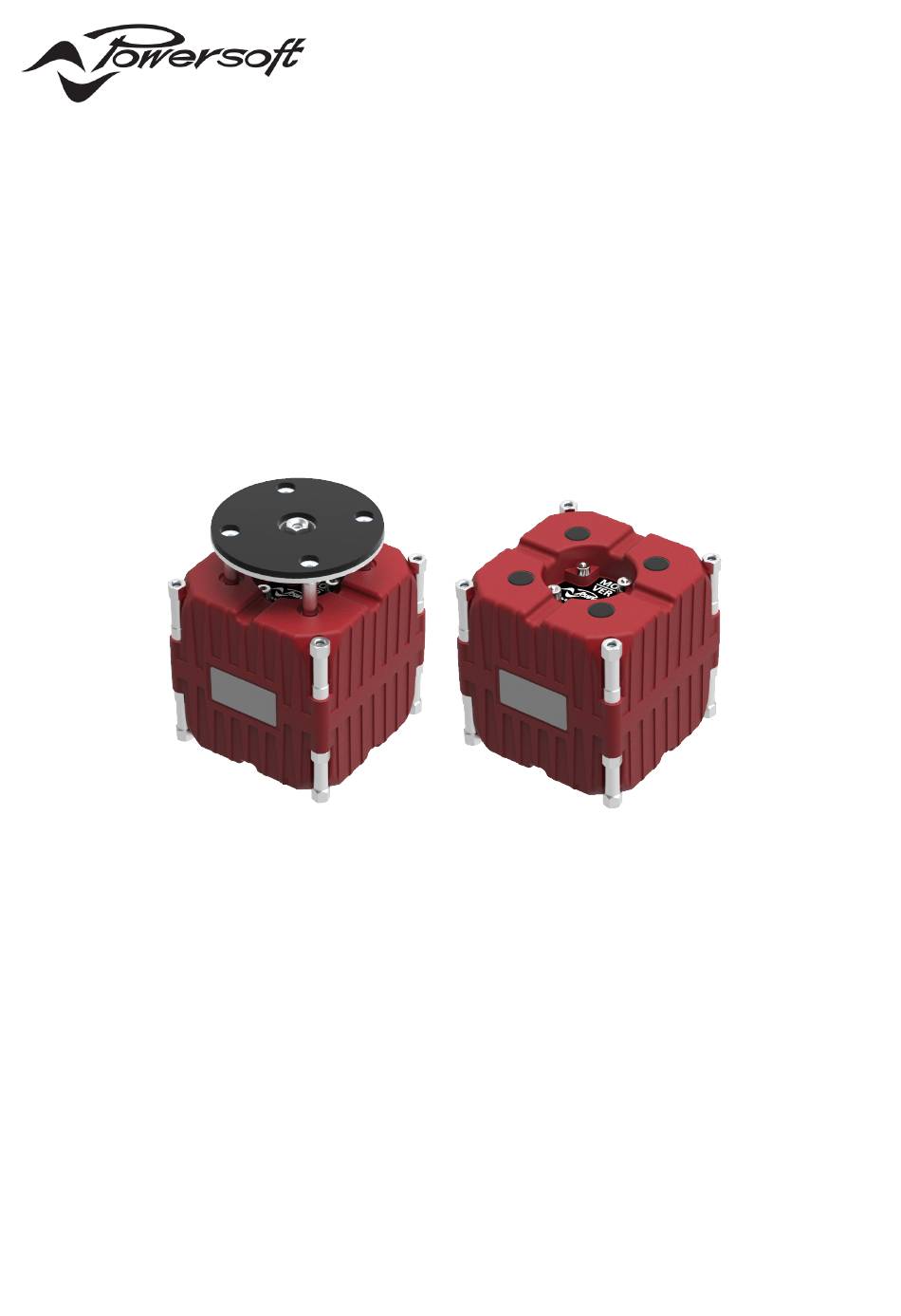

    The Mover is available in the market in 4 versions: 4 Ω 4 Ω Direct Drive MOVER With Direct Drive Mover (DD) the object to be moved is connected to the mover through its top plate. Inertial Drive MOVER With Inertial Drive Mover (ID) the mover is connected to the surface to be mover and transmits its vibrations directly through the unit’s body.

  • Page 14: 1.Technical Datasheet (1,2)

    PRELIMINARY 8 : 1.Technical Datasheet (1,2) Direct Drive MOVER Inertial Drive MOVER Parameter Symbol Unit 4 Ω - DD HiZ - DD 4 Ω - ID HiZ - ID Total Mass 2570 2460 5.67 5.42 Moving Mass 1385 1275 3.05 2.81 Mms/Mtot 0.54...

  • Page 15: 2.Glossary

    There is no specific rule to calculate how many Movers you will need, because this number is strongly dependant on the desired effect, on loads acting on the Movers and other factors. It is usually suggested to use at least one Mover DD/ID each 350 kg (770 lbs) if a strong vibration/movement effect is required. Technical Data | 5...

  • Page 16: Wiring And Amplification

    Example 2 - In phase Movers Section of wires depend on current load CLASS3 WIRING Remember polarity when installing more than one unit in the same system. Example 3 - Error! Mover's phase is 180° one from the other 6 | MOVER | User guide...

  • Page 17: Amplification And Power Handling

    Both 4Ω and HiZ are rated for 625 W (AES2-2012). The recommended to amplify the Mover. Following figures shows applicable max average power and Powersoft DSP amplifiers allow to handle the sub-harmonic max RMS voltage to one Mover. generation, as explained in following dedicated paragraph.

  • Page 18: 3.Armoníaplus | Harmonics

    If you do not have sound below 100 Hz, no worries, we generate it for you! Just be sure to use our amplifiers and ArmoníaPlus! How to enable Harmonics The Harmonics feature is only active when a speaker type Mover is selected. The corresponding menu will appear in the Speaker Eq section, flanking the Speaker menu, as shown in following figure.
  • Page 19 Figure below is a schematic representation of the “Sub-Harmonics” workflow in ArmoniaPlus. 1. Sub-Harmonic generator (octaver) Switches the sub-harmonics generator on. Switches the sub-harmonics generator off (Default). a. Frequency Range Selector: Using proper sliders, hi-pass and lo-pass filters can be set: resulting frequency band-width is processed with sub-harmonics.

  • Page 20: Mover Id - Integration Instructions

    Centre-to-centre distance: 80 mm or 3 5/32 in (see Mechanical Drawings for more details) 3. WIRING Fix wires to the structure where the Mover ID. This is to avoid damages on wires due to vibrations. Keep in mind what explained in previous section Polarity.

  • Page 21: Mover Dd - Integration Instructions

    Mover DD - Integration instructions 12 : 1.Introduction and general rules Mover DD it is unique, not as any other shaker in the market, because it physically pushes and pulls objects, generating a real punch sensation and force perception, when needed. Its external connection plate is joined to the Mover’s moving mass,...
  • Page 22 Thanks to its mechanical solutions, the Mover presents wide range of possible integrations, without orientation limits. The figure below shows some samples of integration for the Mover DD: only a cinema application is shown, but same integration principles further explained are valid for all kind of application you are thinking about: •...

  • Page 23: 2.How To Integrate Your Mover Dd

    12 : 1.1. Fixed part A fixed part is mandatory to use the Mover DD, it is part of your project and it can be whatever you want, but it must be immovable (e.g. a concrete floor or concrete steps, the chassis of a roller coaster). This part must be relatively fixed with respect of the connection plate of the Mover DD itself, that in fact moves.

  • Page 24: 3.Practical Instructions And Precautions

    Diameter must be suitable for metric M6 screws Centre-to-centre distance (2.a): 80 mm or 3 5/32 in (see Mechanical Drawings in ANNEX 3 and 4 for more details) 3. WIRING Keep in mind what explained in previous section Polarity. 14 | MOVER | User guide...
  • Page 25 Mover •MAX TORQUE: 8 Nm (70 lbf·in) TOP VIEW • 4 x M5 metric screws required to fix the Mover to an immovable object from too connection points • MAX TORQUE: 4 Nm (35 lbf·in) BOTTOM VIEW • 4 x M5 metric screws required...

  • Page 26: Annex 1 - Spring Constant Calculator

    = spring constant [N/mm]; x = displacement from equilibrium point [mm]. It is easy to find the spring constant k: same spring with different loading condition => k is CONSTANT. k = F/x [N/mm] k = F [N⁄mm] 16 | MOVER | User guide...

  • Page 27: Annex 2 - Suspension System Calculator

    14  Annex 2 - Suspension system calculator 14 : 1.Introduction Following figure shows how to read following charts, with a scheme and a sample. This method is only a suggestion: each project presents its peculiarity and appropriate evaluations must be done by designers. First graph refers to the required total stiffness of your suspension system and it is a good starting point for calculating your project.
  • Page 28 TYPE Base diameter Height 30.0 mm 1.2 in 30.0 mm 1.2 in 40.0 mm 1.6 in 40.0 mm 1.6 in 50.0 mm 2.0 in 50.0 mm 2.0 in NORMAL MOUNT SHEAR MOUNT 18 | MOVER | User guide...
  • Page 29 Metric Units k = 0.5 load Annex 2 - Suspension system calculator | 19...
  • Page 30 Imperial Units k = 12.7 load 20 | MOVER | User guide...

  • Page 31: Annex 3 - Mover Dd Mechanical Drawings

    15  Annex 3 - MOVER DD Mechanical drawings Annex 3 - MOVER DD Mechanical drawings | 21...

  • Page 32: Annex 4 - Mover Id Mechanical Drawings

    16  Annex 4 - MOVER ID Mechanical drawings 22 | MOVER | User guide...
  • Page 33 Page intentionally left blank Annex 4 - MOVER ID Mechanical drawings | 23...
