Summary of Contents for EZYFIX Classic Bathroom Basin Set

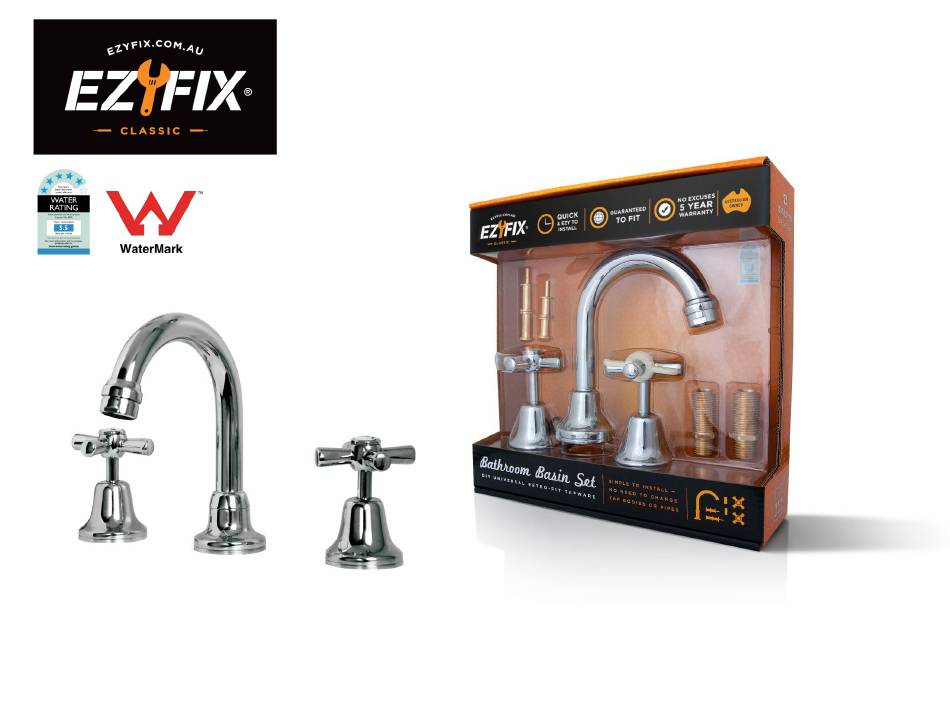

- Page 1 Installation guide Classic Bathroom Basin Set...
- Page 2 Features and Benefits • Convert old plastic taps to sparkling chrome • Timeless classic design • Durable solid brass construction • 15 minute installation • 1300 EZYFIX DIY Helpline * See full warranty statement at the end of these instructions...
- Page 3 EZYFIX works. New Nipple will adapt your spout to either 5/8” or 1/2” existing breech piece nipple. Replace O-ring Spindle Extension We strongly recommend replacing If needed for deep the old existing o-ring seated tap bodies. on your breech piece.
- Page 4 Tools you need to install this EZYFIX tap set. Adjustable spanner Pliers...
- Page 5 Tools you may need to remove your old taps Rubber strap wrench Ideal for undoing dress fittings on old taps or any component that doesn’t have flat surfaces to lock a spanner onto. Pointed nose pliers Great for pulling out old worn tap washers which tend to swell over the years making them tricky...
- Page 6 Stage 1. Remove old taps and spout 1. Turn off the water at your meter and 2. Remove the old buttons, handles, flanges, drain your system by opening the spindles and jumper valves. The rubber strap lowest hot and cold outlet in your wrench is ideal for undoing tight dress flanges.
- Page 7 Stage 2. install your new EZYFIX taps 1. Select the correct adaptor to match the length of your existing spindle. EZYtip: Wind the spindle up first before screwing in with a spanner to avoid damage to your new washer 2. Screw on the tap flange, handle and buttons. Tighten the button with...
- Page 8 Stage 3. install your new EZYFIX spout 1. Select the correct sized adaptor, slide flange onto the spout then apply thread tape to the short end of the adaptor and screw into spout. Must put thread tape on clockwise. 2. Push on the new spout and re-tighten locknut beneath basin.
- Page 9 Job done! Job done ! Now make sure you tell your friends about it on our facebook page! www.facebook.com/EZYFIX Need help still? Call 1300 EZYFIX DIY helpline See how we have revolutionised showers too www.ezyfix.com.au...
- Page 10 Job done ! Now make sure you tell your friends about it on our facebook page! www.facebook.com/EZYFIX See how we have Need help still? revolutionised showers too Call 1300 EZYFIX www.ezyfix.com.au DIY helpline...
- Page 11 NO EXCUSES - 5 YEAR WARRANTY – WHAT DOES IT MEAN? It means that anyone can install EZYFIX tapware as per our instructions and still be covered by our full 5 year warranty. Most other tapware manufacturers void your warranty if their products are not installed by a licensed plumber.
