Four Power Four P4 Crossover User Manual

Electric wheelchair for roads and paths
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
P4 Crossover
Electric Wheelchair for roads and paths
USER GUIDE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the P4 Crossover and is the answer not in the manual?

Questions and answers

Related Manuals for Four Power Four P4 Crossover

Summary of Contents for Four Power Four P4 Crossover

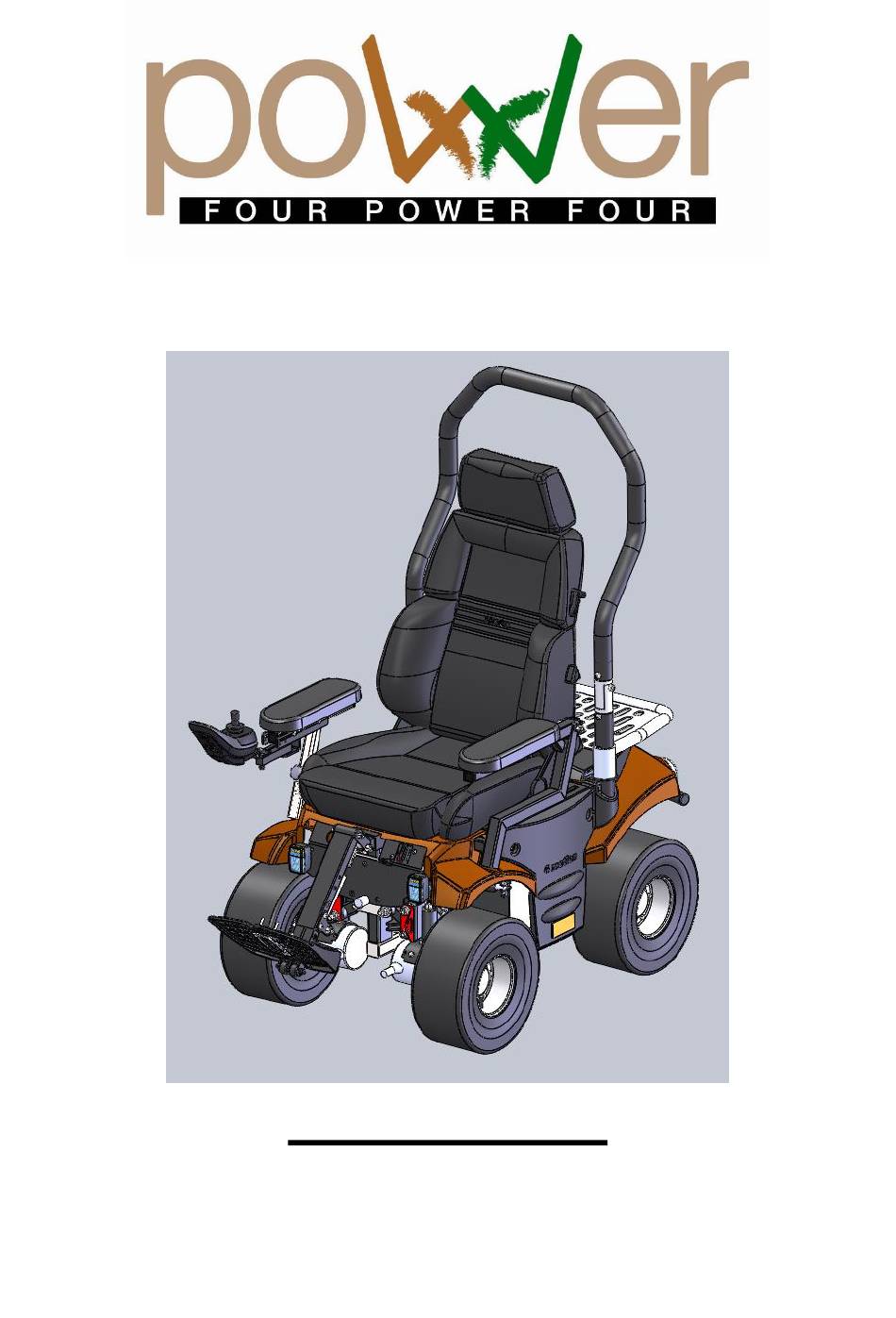

  • Page 1 P4 Crossover Electric Wheelchair for roads and paths USER GUIDE...

  • Page 2: Table Of Contents

    INTRODUCTION ..........................4 A - Taking delivery of your chair ....................... 4 B - Guarantee ..........................4 Presentation of the P4 CROSSOVER all road wheelchair ............... 5 Chapter I : Safety ..........................6 1 - Driving recommendations ......................6 1.1 – General operating instructions..................... 6 1.2 - Speed ...........................
  • Page 3 Chapter VIII : Standards and Certification ..................33 8.1 - Electromagnetic compatibility ..................... 33 8.2 - EC Standard tested ......................33 8.3 - Waste management ......................33 P4 CROSSOVER CERTIFICATE OF GUARANTEE ..............34 P4 CROSSOVER SERVICING LOGBOOK ................... 35...

  • Page 4: Introduction

    Advice on use and maintenance will ensure you better safety. Electric wheelchair all way, the P4 Crossover has been designed to facilitate outdoor travel. If it passes where most other traditional chairs stop, it remains a vehicle any way and not any terrain.

  • Page 5: Presentation Of The P4 Crossover All Road Wheelchair

    Presentation of the P4 CROSSOVER all road wheelchair This P4 CROSSOVER powered All-Road wheelchair has been designed for greater functionality and optimum quality of life. This power wheelchair has been designed for both indoor use (house, flat, workplace …) and outdoors (leisure, public roads) with the ability to clear pavements and obstacles of up to 12 cm.

  • Page 6: Chapter I : Safety

    Chapter I : Safety 1 - Driving recommendations 1.1 – General operating instructions. There is a risk of injury if the chair is not used as described in this manual. Switch off the wheelchair, with the engine brakes engaged, before transferring to the wheelchair. Do not drive this chair under the influence of drugs, drugs, alcohol or any other substances that may affect the safety of the user as well as those around him.

  • Page 7: Collision

    1.5 - Collision After a collision involving your chair, it is imperative that each feature be checked before re-use. In the event of a serious collision, contact your dealer at once, even if damage is not apparent. 1.6 - Safety belt For safety purposes, the chair brakes rapidly.

  • Page 8: Chapter Ii : Adjusting The Wheelchair To The User's Needs

    Chapter II : Adjusting the wheelchair to the user’s needs. The adjustments below are to be made about the user’s build so as to ensure best possible use of the wheelchair. 2.1 - Seat adjustment 2.1.1 - Seat depth For increased comfort, the seat can be adapted to the user’s thigh length. Adjustment to be made while the chair is unoccupied: Loosen the screws (1), slide the footrests (2) forwards to obtain the desired seat depth and replace the screws.

  • Page 9: Adjusting The Tilt And The Width Of The Backrest

    2.1.2 - Adjusting the tilt and the width of the backrest For good support and comfort, tilt and width of the backrest can be adapted to the user’s build. Adjustments to be made with the user in place : The front part of the seat moves forwards or backwards. Just press the handle below the front seat. The knob (2) allows you to adjust the backrest tilt.

  • Page 10: Footrest Unit

    2.2 - Footrest unit 2.2.1 - Footrest height and depth adjustment. The aluminium footrest is height adjustable. To do this, remove the support fitting screws and position the support at the desired height then replace the screws. As a guide, good adjustment allows the best possible pressure distribution under the thigh. 2 : legrest depth adjustment 1 : footrest height 2.2.2- Footplate angle...

  • Page 11: Footrest Tilt

    2.2.3 - Footrest tilt spring lever To adjust the footrest tilt, manoeuvre the lever which is incorporated in the support. 2.2 4– Gas spring adjustment It may happen that all do not want to stay in the low position. In this case, a simple adjustment of the gas cylinder nuts will solve the problem. This procedure is described in a video available on the link: www.youtube.com/watch?v=8L--r312B7c...

  • Page 12: Armrest Unit

    2.3 - Armrest unit 2.3.1 - Armrest height Knob screws Loosen the armrest knob, adjust armrest to the desired height and re-screw the knob. 2.3.2 - Armrest spacing Knob screws...
  • Page 13 Loosen the armrest guide track knob, adjust to the desired spacing and re-screw the knob.

  • Page 14: Armrest Depth

    2.3.3 - Armrest depth Holding screws Remove the armrest holding screws, adjust the armrest to the desired depth, and screw in position. 2.4 – Joystick remote Knob srews To adjust the joystick remote depth, loosen the knob and position at the required depth. Note: the joystick remote unit is suitable for right handed or left handed use.

  • Page 15: Chapter Iii: First Contact

    Chapter III: First contact 3.1 - Getting in and out of the wheelchair Your doctor and/or therapist will show you how to transfer depending on your way of life and your state of health. For ease of lateral transfer, this wheelchair is equipped with removable or backwards flip-up armrests according versions.

  • Page 16: Linx Joystick Remote Operation

    3.3. LinX joystick remote operation 3.3.1. “Driving” functions of the remote Batteries charge indicator Speed dimmer On/Off Selected button speed Functions selector : Speed Tilt in space profile - Steering lock Horn Right indicator & Left indicator road light and hazard button button...

  • Page 17: Tilt-In-Space " Function

    3.3.2 « Tilt-in-space » function. Choose « tilt-in-space » function. « Legrest» indicator turns to yellow. Caution: The use of the seated sitting function modifies the balance (especially when moving on a slope in reverse) and the size of the chair. A learning phase is therefore necessary to become aware of the possibilities of the chair in this position: - Downhill the risk of sliding forward is high especially when braking.

  • Page 18: Steering Lock " Function

    3.3.3 « Steering lock » function. Choose « steering lock » function. « Legrest» indicator turns to yellow. The steering lock is very useful when moving on muddy, snowy, sandy or rocky surfaces or even to keep the vehicle straight while climbing ramps. After selecting the "tilt"...

  • Page 19: Chapter Iv - Driving

    Chapter IV – Driving 4.1 – A safe environment Before each ride, check 3 essential points: Make sure all controls can be easily reached. Make sure the batteries are charged enough for the ride. Make sure the safety belt is in good condition. Choose the lowest speed (Profile «...

  • Page 20: Range Of The Wheelchair

    4.4 - Range of the wheelchair The range of your wheelchair depends on the batteries capacity of the wheelchair. To summarize, on flat ground is about 20 km with 110 Amp. This range is subject to the influence of various factors. In practice the road condition, inclines, driving mode, use of lights, tyre pressure, total transported weight, outdoor temperature are some of the elements to be considered.

  • Page 21: Top Case

    4.6 – Top case The top case is mounted on a swivel chassis allowing you to rotate the case sideways. The capacity of the suitcase is 39 litres and its contents must not exceed 7 lbs. Inside the top case, you will find : your wheelchair charger a second key for your «...

  • Page 22: Chapter V : Maintenance

    Chapter V : Maintenance 5.1.1 - Batteries Your wheelchair is equipped with sealed, maintenance-free deep cycle batteries that are in conformity with air transport standards DOT and IATA. These batteries have been developed especially for propulsion of power wheelchairs: « cycle » means that they are able to provide saved energy over a long period of time, compared to starter batteries which provide a high quantity of energy for only a few minutes.

  • Page 23: Complete Charge

    Battery almost full Battery half full, drive to a charger Battery low, recharge soon Battery almost empty, recharge now Battery empty, recharge immediately The remaining battery capacity does not translate directly to remaining physical range of the power chair. The remaining physical range depends on the ambient temperature, the capacity, age and state of the battery, the driving style of the operator and the terrain that the power chair is being used in.

  • Page 24: Long Term Storage Of The Wheelchair When Not In Use

    5.3: Long term storage of the wheelchair when not in use The batteries should be kept fully charged, but they discharge by themselves naturally, gradually losing capacity. Turn off the circuit breaker to avoid this happening. If the chair is not used for a long period of time, we recommend that it either be fully charged at least once a month before disconnecting or left permanently connected.

  • Page 25: Wheels And Motors

    5.4 – Wheels and motors 5.4.1 - Engaging and disengaging the motors The motors of your chair can: be disengaged to allow the wheelchair to be propelled in freewheel mode or be engaged for electromotor mode The levers are located on the side of the motors away from the wheel. Engagement lever Engaging: (to be repeated for each motor)

  • Page 26: Changing A Wheel

    5.4.2 - Changing a wheel Before handling, the electronic controls should be switched off. Nuts + washers Valve Completely empty the tyre of air using the valve. If you remove a wheel which is still inflated, the air will release the wheel rims from the motor with force. This can cause serious injury. Because blue Locktite was applied to the screws at assembly use a hair dryer to soften it before unscrewing the 6 nuts.
  • Page 27 & lock nut Steering arm Ball joint • 2 - Remove the covers. • 3 - Loosen the 2 nuts located on either side of the steering arm. • 4 - Repeat for each of the four wheels. • 5 - Place the alignment bar in contact with the sides of the 2 front and rear tires. •...

  • Page 28: Cleaning

    5.5 - Cleaning Regular cleaning of your electric wheelchair is highly recommended both for hygienic reasons and for its proper operation. Painted parts : clean with soapy water. Saddlery : use a soft and slightly damp cloth. WARNING ! After use in rain, dry the chair carefully with a soft cloth. WARNING ! Do not use rough or corrosive products, or high-pressure hoses which damaged the electronics and degrease the ball bearings.

  • Page 29: Chapter Vi : Transport

    Chapter VI : Transport 6.1 – Anchorage point This wheelchair is equipped with anchoring systems (see photos below) enabling it to be secured in a specially equipped vehicle (a system of rails and safety straps front and rear keeping the wheelchair safely secured).

  • Page 30: Folding Safety Rollbar (Optional)

    6.2 – Folding safety rollbar (optional). Seat folded Folding rollbar without headrest Remove the armrests. Remove the headrest. Tip the backrest forward. Lift the rollbar vertically and tip it forward.

  • Page 31: Chapter Vii : P4 Crossoverv2 Specifications Data

    Chapter VII : P4 CROSSOVERv2 specifications data 1 - Specifications particular to the wheelchair Frame : Rigid, stainless and aluminium steel. Seat : Adjustable for seat depth, backrest tilt and backrest width. Recaro “Expert M” black Dinamica interior and imitation black leather exterior. Saddlery : Armrests : Foldaway.

  • Page 32: Electric Wiring

    7.5 – Electric wiring Ensure this assembly diagram is followed as otherwise use of the wheelchair is dangerous. Special care should be taken when charging the batteries. They must be correctly placed to obtain 24 volts from the two 12 volts batteries.

  • Page 33: Chapter Viii : Standards And Certification

    Chapter VIII : Standards and Certification 8.1 - Electromagnetic compatibility This wheelchair has been tested in accordance with European and international standards. However in certain cases there may be a risk of malfunctioning due to electromagnetic fields. WARNING! Electric and electronic devices (TV, radio, industrial machine, electronic medical appliances, mobile phone …) may cause electromagnetic interference likely to affect the correct operation of the electric wheelchair.

  • Page 34: P4 Crossover Certificate Of Guarantee

    P4 CROSSOVER CERTIFICATE OF GUARANTEE TO BE KEPT BY THE USER Wheelchair serial number N° : ...........…………...  The off-road wheelchair you have just acquired is guaranteed, as from delivery, in the following way : TWO years against any manufacturing defect, excluding the tyres and saddlery which are not covered by the guarantee.

  • Page 35: P4 Crossover Servicing Logbook

    P4 CROSSOVER SERVICING LOGBOOK Yearly maintenance of your chair by your dealer will allow you to preserve optimum performance levels. This maintenance guarantees high safety levels. Delivery note number : Chair identification number : Dealer’s name and address : Purchase date :...
  • Page 36 Year #1 Intervention and maintenance report : ………………………………………………………………………………………………………………… ………………………………………………………………………………………………………………… ………………………………………………………………………………………………………………… ………………………………………………………………………………………………………………… ………………………………………………………………………………………………………………… ………………………………………………………………………………………………………………… …………………………………………………………………………… Technician : Date et signature : ………………………………… …………………………………… Year #2 Intervention and maintenance report : ………………………………………………………………………………………………………………… ………………………………………………………………………………………………………………… ………………………………………………………………………………………………………………… ………………………………………………………………………………………………………………… ………………………………………………………………………………………………………………… ………………………………………………………………………………………………………………… …………………………………………………………………………… Technician : Date et signature : …………………………………...
  • Page 37 Year #4 Intervention and maintenance report : ………………………………………………………………………………………………………………… ………………………………………………………………………………………………………………… ………………………………………………………………………………………………………………… ………………………………………………………………………………………………………………… ………………………………………………………………………………………………………………… ………………………………………………………………………………………………………………… …………………………………………………………………………… Technician : Date et signature : ………………………………… …………………………………… Year #5 Intervention and maintenance report : ………………………………………………………………………………………………………………… ………………………………………………………………………………………………………………… ………………………………………………………………………………………………………………… ………………………………………………………………………………………………………………… ………………………………………………………………………………………………………………… ………………………………………………………………………………………………………………… ………………………………………………………………………………………………………………… ………………………………………………………………………………………………………………… ………………………………………………………………… Technician : Date et signature : …………………………………...
  • Page 38 Year #7 Intervention and maintenance report : ………………………………………………………………………………………………………………… ………………………………………………………………………………………………………………… ………………………………………………………………………………………………………………… ………………………………………………………………………………………………………………… ………………………………………………………………………………………………………………… ………………………………………………………………………………………………………………… …………………………………………………………………………… Technician : Date et signature : ………………………………… …………………………………… Year #8 Intervention and maintenance report : ………………………………………………………………………………………………………………… ………………………………………………………………………………………………………………… ………………………………………………………………………………………………………………… ………………………………………………………………………………………………………………… ………………………………………………………………………………………………………………… ………………………………………………………………………………………………………………… …………………………………………………………………………… Technician : Date et signature : …………………………………...
  • Page 39 Year #10 Intervention and maintenance report : ………………………………………………………………………………………………………………… ………………………………………………………………………………………………………………… ………………………………………………………………………………………………………………… ………………………………………………………………………………………………………………… ………………………………………………………………………………………………………………… ………………………………………………………………………………………………………………… …………………………………………………………………………… Technician : Date et signature : ………………………………… …………………………………… Year #11 Intervention and maintenance report : ………………………………………………………………………………………………………………… ………………………………………………………………………………………………………………… ………………………………………………………………………………………………………………… ………………………………………………………………………………………………………………… ………………………………………………………………………………………………………………… ………………………………………………………………………………………………………………… …………………………………………………………………………… Technician : Date et signature : …………………………………...
  • Page 40 Customer Satisfaction Enquiry Dear Customer, You recently acquired a P4 CROSSOVER Off-Road Electric Wheelchair, and we thank you for your trust in our products. We would appreciate your remarks or suggestions as a P4 CROSSOVER user. By filling in this questionnaire and returning it to us, you will help us to match our products and services to your needs.
  • Page 41 Ordering and installing 6) The delivery deadline given was ______ days. 7) Did this seem to you :  Too long  Normal  Short  Very short 8) Was this deadline met ?  YES  NO, exceeded by _______ days. 9) The adjustments were made by : ...
  • Page 42 4 poWer 4 Rue Baron de Castro 16 B-1040 Brussels Belgium Tél. +32 (0) 2735 1101 – Fax +33 (0) 2735 2202 www.4power4.com e-mail : info@4power4.eu...
