One product, multiple features:
• Signal converter: adapt encoder output voltage levels to devices inputs
(PLC, variable frequency drive ...)
• Unipolar / differential converter
• Splitter: send encoder signals to multiples devices (4 outputs per
module, unlimited numbers of chained devices)
• Insulator: galvanic isolation between encoder and module outputs, and
between module outputs themselves.
•
Multiplexer: Choice of the source encoder signal (using two chained
modules at least)
PDF Manual PDF available at: www.3cconcept.fr/tcusb
3C Concept S.A.S

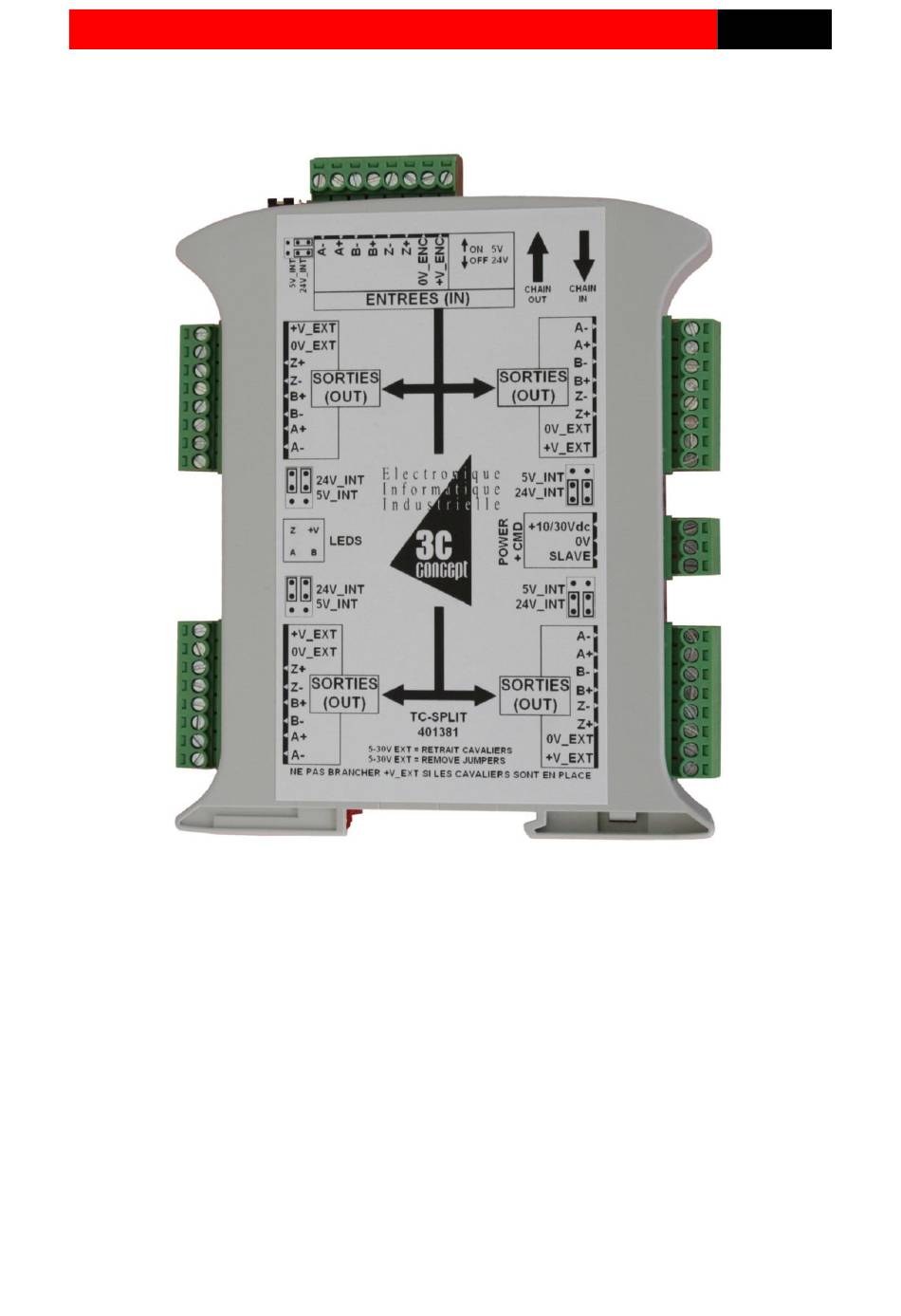

TC-SPLIT USER MANUAL
1
1
TC-SPLIT
TC-SPLIT_MANUEL_EN_105.DOCX
Advertisement
Summary of Contents for 3C Concept TC-SPLIT
- Page 1 TC-SPLIT USER MANUAL TC-SPLIT One product, multiple features: • Signal converter: adapt encoder output voltage levels to devices inputs (PLC, variable frequency drive …) • Unipolar / differential converter • Splitter: send encoder signals to multiples devices (4 outputs per module, unlimited numbers of chained devices) •...
- Page 2 TC-SPLIT USER MANUAL 1 – Overview TC-SPLIT Module allows connection of 4 devices on the same incremental encoder (or similar devices). It can be chained in order to obtain 8,12,16 outputs. 3 independent channels (A,B,Z) are available on each device output Encoder input signals can be configured as RS422/TTL/HTL unipolar or differential.
-
Page 3: Technical Characteristics
TC-SPLIT USER MANUAL 2 – Technical Characteristics Parameter Type Pinout Value Unit Module P3.1 10 à 30 V_EXT Pn.8 4.5 à 30 Max supply current P3.1 Power Supply current @24V (1) P3.1 Max supply current, 5V (+V_ENC) P1.8 supply current V_EXT (1) Pn.8... - Page 4 TC-SPLIT USER MANUAL 3 - Configuration and encoder cabling (P1) 3.1 – Differential encoder (RS422 or HTL differential outputs), not isolated Jumper pos. for powering encoder with 5Vdc Jumper pos. for powering Encoder or signals encoder with 24Vdc source 0V_EXT...
- Page 5 Wiring colours used above are not standardized, double check datasheet of the encoder for correct wiring After module power up, it is possible to check the operation by slowly moving the encoder axis, the 3 leds on the side of the TC-SPLIT should blink. 3C Concept S.A.S TC-SPLIT_MANUEL_EN_105.DOCX...
- Page 6 TC-SPLIT USER MANUAL 4 - Configuration and module outputs cabling (P5 P6 P7 P8) 4.1 – Differentials outputs (RS422 or HTL differential) Examples with and without power supply from external device Variable-frequency drive(VFD) with differentials inputs and power output (5 to 30Vdc)
- Page 7 TC-SPLIT USER MANUAL Example with power supply separated from the main device (isolated output) Programmable logic controller with differentials inputs 0V_EXT +V_EXT +10/30V SLAVE External power from PLC: NO jumpers Outputs are isolated External independent power supply (12 or 24Vdc)
- Page 8 TC-SPLIT USER MANUAL 4.2 – Unipolar outputs (TTL 5V or HTL 10-30V outputs) Variable-frequency drive(VFD) with unipolar inputs and power output (5 to 30Vdc) 0V_EXT +V_EXT External power from VFD: NO jumpers, Output are isolated +10/30V Internal power: SET Jumpers as decribed,...
- Page 9 TC-SPLIT outputs are sourced from Chained (Slave) Chain IN input (which comes from a > 10V master module, Chain OUT) SLAVE input must be left floating if TC-SPLIT is used in the standalone mode 5.2 –LEDS identification 3C Concept S.A.S TC-SPLIT_MANUEL_EN_105.DOCX...
- Page 10 TC-SPLIT USER MANUAL Notes: 3C Concept S.A.S TC-SPLIT_MANUEL_EN_105.DOCX...
- Page 11 TC-SPLIT USER MANUAL Notes : 3C Concept S.A.S TC-SPLIT_MANUEL_EN_105.DOCX...
- Page 12 TC-SPLIT USER MANUAL 3C Concept S.A.S TC-SPLIT_MANUEL_EN_105.DOCX...
