A Ø4 x 14 218 un.
E 180 un.
I 8 un.
M Int. 20 un.
M Ext. 40 un.
Q 8 un.
FERRAMIENTAS
HARDWARE
FERRAMENTAS
Rua Nelson Carraro, 2001 - Bento Gonçalves - Rio Grande do Sul -Brasil - Cep: 95700-000
Fone: (55) 54 3455 12 12 - Fax: (55) 54 3455 12 11 www.carraro.com.br - Cód. Manual: 43297 - Agosto 2014

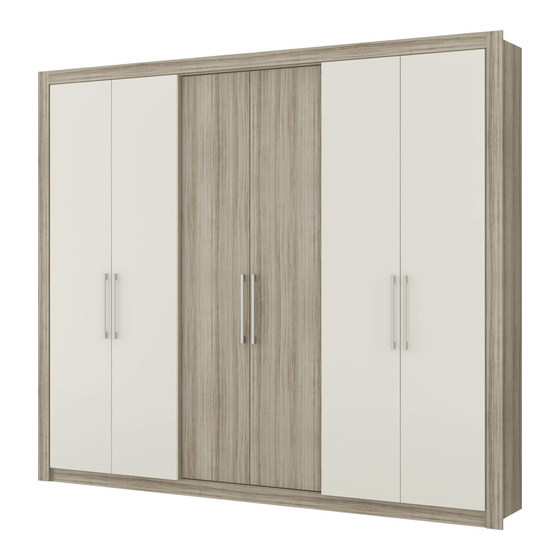

Ropero 6 Puertas / 6-Door Wardrobe / Roupeiro 6 Portas
ACESSORIOS / HARDWARE / ACESSÓRIOS
B Ø4 x 25 12 un.
F Ø6 x 30 26 un.
J 6 un.
N 4 un.
R 6 un.
C Ø4 x 35 10 un.
G Pegamento / Glue / Cola 1 un.
K 8 un.
O 24 un.
PERSONAS NECESSARIAS PARA EL MONTAJE
PEOPLE REQUIRED FOR ASSEMBLY
PESSOAS NECESSÁRIAS PARA A MONTAGEM
Ref. 1052
D Ø4,5 x 50 66 un
H 24 un.
L 17 un.
P 16 un.
