Hunter BTT Series Quick Start Manual

ENGLISH
Please read and keep all safety and use instructions. For more
information, visit hunterindustries.com/BTT.
Important Safety Instructions
1. Only use attachments/accessories specified by the manufacturer.
2. Use a Hose Vacuum Breaker where required to prevent backflow to the
water supply.
3. Use a pressure regulator where required to control the output of
water. (Model No. PRLG203FH3MH for 20 PSI (1.4 bar/138 kPa),
PRLG253FH3MH for 25 PSI (1.7 bar/172 kPa), PRLG303FH3MH for 30
PSI (2 bar/207 kPa), PRLG403FH3MH for 40 PSI (2.8 bar/276 kPa))
Warnings and Cautions
• Do NOT make unauthorized alterations to this product.
• Keep the product away from fire and heat sources.
• Do not expose products containing batteries to excessive heat (e.g.,
from storage in direct sunlight, fire, or the like).
• The product label is located on the back of the product.
• Replace only with same or equivalent battery type. Dispose of used
batteries according to instructions.
• Do NOT mix old and new batteries, or mix different types or makes
of batteries.
Connecting the Batteries
1. Squeeze the battery compartment tabs
with two fingers to withdraw the battery
compartment.
2. Insert the included 2x AA standard alkaline
batteries into the terminals. Observe +
position.
3. Replace the battery compartment.
4. Test power to the controller by pressing the
manual button on the front of the controller
and listen for a click sound. Press again to
turn off. NOTE: Manual button mode runs for a
maximum 60 minutes and then shuts
off watering.
Connecting to Water Supply
BTT-100/200 Instructions:
1. Connect the controller only to a standard
¾" (19 mm) threaded water supply/hose
faucet outlet.
2. Hand-tighten until secure.
3. Connect a ¾" (19 mm) inlet hose or drip
adapter (Model No. BTT-LOC) to the
BTT outlet.
4. Hand-tighten until secure.
Connecting to Water Supply
1. Connect the controller only to a standard ¾" (19 mm) threaded water
supply/hose faucet outlet. Unscrew the grey adapter to use the
1" (25 mm) BSP inlet option.
2. Hand-tighten until secure.
3. Connect a ¾" (19 mm) inlet hose, drip adapter (Model No. BTT-LOC)
or quick connect adapter (included) to the BTT outlet.
4. Hand-tighten until secure.

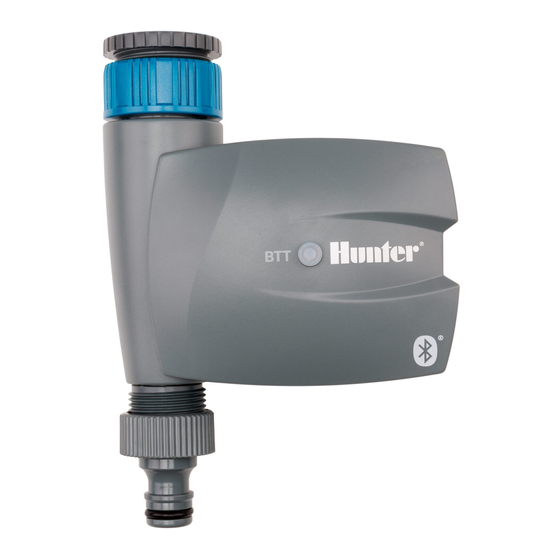

BTT
Battery-Operated
Bluetooth® Tap Timer
Quick Start Guide
Low-Battery Indicator
Low-Battery Indicator
BTT-101/201 Instructions:
Download Mobile App
1. Download the free Hunter BTT app to a
smartphone device from the App Store
for iOS® devices, or Google Play™ store
for Android™ devices.
•
•
2. Be within 32' (10 m) of the controller.
3. Turn on Bluetooth on the smartphone device.
4. Press the SCAN button and select Hunter BTT.
Timer Mode Programming
Timer mode allows for watering at four
different start times from 1 second to 6
hours,
per watering day.
1. Press Schedule
tab.
2. Water Days: Select the desired water
days. Save and Confirm.
3. Start Times: Set START TIME 1 and
optional START TIME 2-4. Save and
Confirm.
4. Run Time: Set the desired RUN TIME
from 1 second to 6 hours. Save and
Confirm.
Cycling Mode Programming
Cycling mode allows the Run Time to repeat
continually after the scheduled interval
(Soak Time) from a Start Time to an End Time.
1. Press Schedule
tab.
2. Water Days: Select the desired water
days. Save and Confirm.
3. Start Times: Set START TIME 1 and
optional START TIME 2. Save and
Confirm.
4. End Times: Set END TIME 1 and optional
END TIME 2. Save and Confirm.
5. Run Time: Set the desired RUN TIME
from
1 second to 24 hours. Save and Confirm.
6. Soak Time: Set optional SOAK TIME, the
time between each Run Time interval,
from 1
second to 24 hours. Save and Confirm.
Manual Watering
1. For manual watering, press Schedule
Manual Button
, press the Play button, select a zone
or Run All. Enter a runtime up to 360
minutes and press Run.
2. Set Manual Start Button Run Time: In
controller settings under zones, select
zone(s), set run time from 1 to 60
minutes. Save and Confirm.
Additional Settings
Manual Buttons
1. Renaming your BTT: Press More
select controller, select controller and
serial number and enter a name in
Nickname section. Save and Confirm.
2. Creating a Passcode: In controller
settings, enter a 4-digit code in the
Create a Passcode section. To disable, press Disable Passcode.
Save and Confirm.
3. Changing the Language: Press More
iOS Compatibility: Requires
iOS 9.0 or later. Compatible
with iPhone®.
Android Compatibility:
Requires Android 4.4 or
above.
and select the Timer
and select the Cycling
,
, select App Settings,
