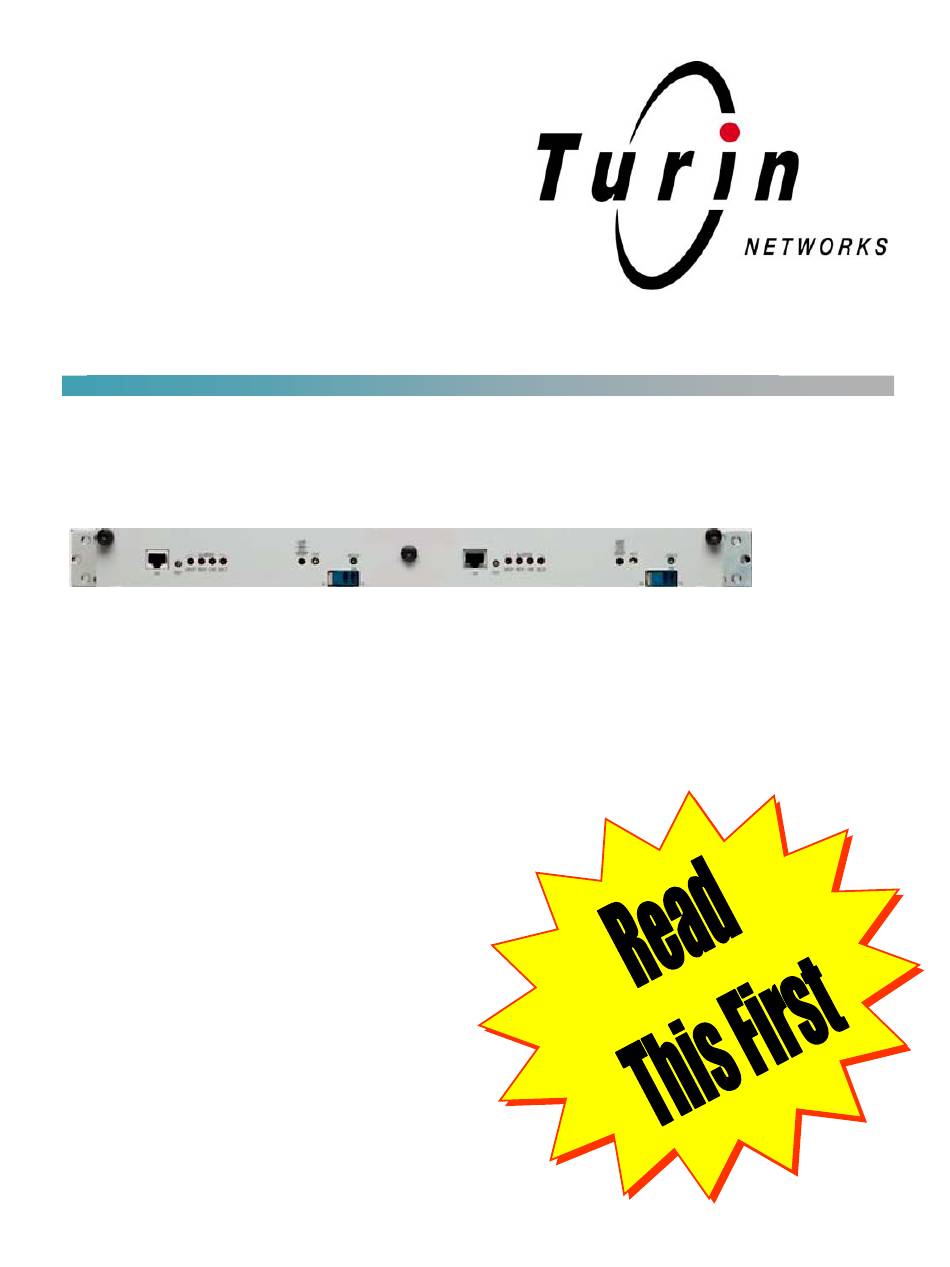

TransAccess 155
Quick Start Guide
Congratulations on your purchase of the TransAccess 155. This Quick Start Guide describes the steps
necessary to unpack, install, and initialize your new equipment. It is strongly recommended that you read this
entire document before proceeding.
This document is supplemental to the full
Operations Manual for the TransAccess 155.
______________________________________________________________
______________________________________________________________
04/21/05
Rev. A
940-00012-003
Advertisement
Summary of Contents for Turin Networks TransAccess 155
-
Page 1: Quick Start Guide
TransAccess 155 Quick Start Guide Congratulations on your purchase of the TransAccess 155. This Quick Start Guide describes the steps necessary to unpack, install, and initialize your new equipment. It is strongly recommended that you read this entire document before proceeding. - Page 2 Step 1 Unpack & Mount the TransAccess 155 Carefully Contents of the box may vary remove depending on options ordered. all items from the box. Inventory all items against the packing list. Install the The shelf mounting ears may already be attached.
- Page 3 All 4 holes must line up. Use four #12-24 screws. Leave space above and below the TransAccess 155 if airflow would otherwise be restricted. ____________________________________________________________________________________________________________________________ 04/21/05 Rev. A...
- Page 4 Install Office Wiring Connect Office Connect "A" and/or "B" Battery. -48V at the rear of the TransAccess 155 shelf. (Refer to Chapter 2 in the Operations Manual. Use up to 12 gauge wire (14 gauge recommended). Do not turn the power on.
- Page 5 Connect T1 Connect T1 connections and/or E1 using the Turin Networks cable assembly (part facilities. number 815-00089- XXX). Connect the Connect the customer fiber port supplied fiber cables to the fiber ports of the OMX84 module. ____________________________________________________________________________________________________________________________ 04/21/05 Rev. A...
- Page 6 Terminal) to the User System Interface (USI) port on the OMX84 Module. Note: the UID may be connected to either OMX84 module. Use Turin Networks cable 815-00011-XXX. See Chapter 4 of the Operations Manual for more information. ____________________________________________________________________________________________________________________________ 04/21/05 Rev. A...
- Page 7 Launch the Start the VT100 terminal program. terminal (Settings are VT100 emulation, Data Bits = 8, Parity = none, Stop program on Bit = 1, Flow Control = none, Baud the UID. Rate = 1200 up to 115,200). Press "Enter" twice to initiate communications.
- Page 8 OC-3 facility connections. the circuits. Verify error-free transmission through each OMX84 service module. If errors occur, check the configuration and retest. Turin Networks, Inc. 1415 N. McDowell Blvd. Petaluma, CA 94954 USA Phone: (707)-665-4400 Fax: (707)-792-4949 www.turinnetworks.com ____________________________________________________________________________________________________________________________ 04/21/05 Rev.
