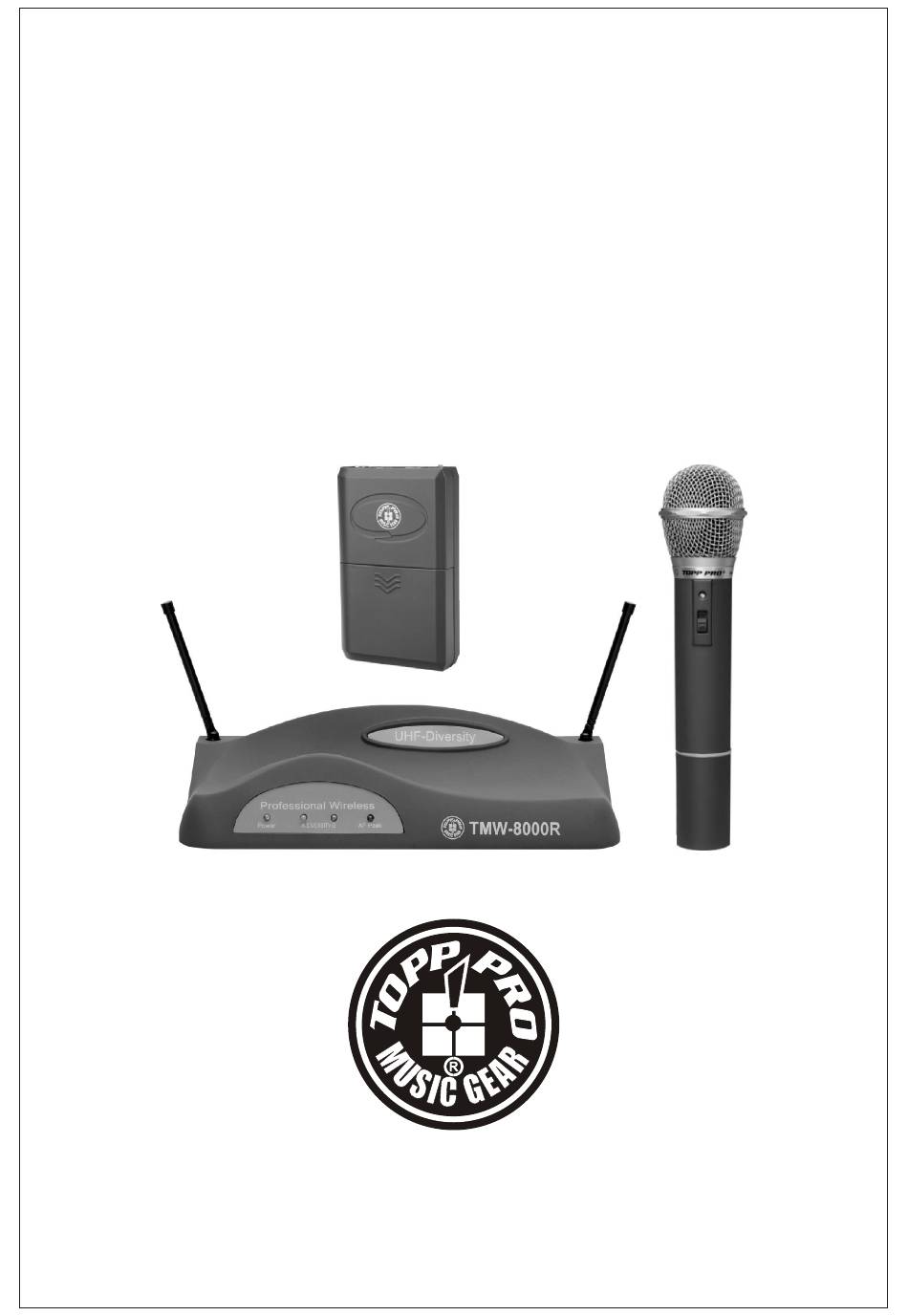

  • Page 1 User's Manual TMW-8000R/T/P PROFESSIONAL WIRELESS SYSTEM...
  • Page 2 Fuse SAFETY RELATED SYMBOLS To prevent fire and damage to the product, use only the recommended fuse type as indicated in this CAUTION manual. Do not short-circuit the fuse holder. Before RISK OF ELECTRIC SHOCK DO NOT OPEN replacing the fuse, make sure that the product is OFF and disconnected from the AC outlet.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS 1. WARNINGS AND INSTALLATION ............................. 3 2. INTRODUCTION ..................................4 3. GETTING STARTED ..................................6 4. THE RECEIVER ..................................7 4.1 FRONT PANEL ................................... 7 4.2 REAR PANEL ..................................7 5. THE TRANSMITTERS ................................8 5.1 HANDHELD MICROPHONE ...............................8 5.2 BODYPACK ..................................

  • Page 4: Warnings And Installation

    1. WARNINGS AND INSTALLATION Connection to the mains supply The unit is supplied with an external power supply. Before switching on the unit, make certain that the mains voltage matches that shown on the power supply (a tolerance of up to ±10% is acceptable). Switching on and off CAUTION: before switching on or off, make certain the sound system's amplifiers are off: this will avoid signal peaks, which are annoying and sometimes dangerous (particularly for speaker enclosures).

  • Page 5: Introduction

    2. INTRODUCTION TMW-8000R/T/P is an efficient, high-quality wireless microphone system, with a user-friendly control set. The use of the UHF band (780-865MHz) enables the majority of interference problems afflicting lower bands to be overcome. Shorter waves are less susceptible to reflection, so they tend to saturate the area around the transmitter better. The UHF band is therefore more suited to critical situations (stages or clubs with a lot of lights and amplifiers) where reflections can cause problems for VHF sound waves.
  • Page 6 Component Name UHF SWITCHING DIVERSITY receiver Receiver TMW-8000R Handheld microphone UHF Handeld microphone TMW-8000T UHF Bodypack transmitter Bodypack transmitter TMW-8000P Lavalier microphone Lavalier microphone (to be used with bodypack) LM-10 (4B) The transmitters are powered by normal alkaline batteries. The circuitry has been designed to reduce current absorption to a minimum, ensuring longer operating times at considerably lower costs.

  • Page 7: Getting Started

    3. Getting Started To use the TMW-800R/T/P wireless microphone system immediately, just carry out the following simple procedure: Connect the receiver audio output to the line input of a mixer or an amplifier. Connect the power supply to the DC IN socket and switch on the unit. Adjust the Squelch control until any interference is eliminated, obtaining an output signal free from background noise.

  • Page 8: The Receiver

    4. The Receiver 4.1 Front Panel POWER ON LED This LED lights up when the unit is powered on. DIVERSITY SIGNAL LED When the RF signal is received, the green or yellow LED lights up to indicate the reception of microphone. AUDIO PEAK LED This red LED blinks when the microphone approaches the overload clipping level.

  • Page 9: The Transmitters

    SQUELCH CONTROL This control is factory preset for adjusting SQ noise. If you find the receiver already has been jammed by outside signal, please adjust SQ control till the jamming signal disappears before you turn on the microphone power switch. (Counterclockwise) VOLUME CONTROL This control can adjust the audio output level from the wireless system.

  • Page 10: Bodypack

    5.2 Bodypack BAT. LO This LED indicates the battery status. If this flashes briefly when switching on, the batteries are sufficiently charged. If on the other hand it remains lit, this means the batteries are flat and must be replaced. POWER ON/OFF This switch is used to turn the power ON/OFF.

  • Page 11: Connections

    6. Connections TMW-8000R receiver is fitted with two different format outputs: the first has a balanced XLR connector, the second a normal unbalanced Jack socket. BALANCED XLR-M connector UNBALANCED JACK connector The receiver has line-level outputs. The receiver's output must therefore be connected to one of the mixer's line inputs.
  • Page 12 Handheld Microphone Connection Bodypack Connection...

  • Page 13: Technical Specifications

    Power Supply DC 12V-15V 300mA with AC/DC Adaptor 295(W) 114(D) 40(H) mm 0.97(W) 0.37(D) 0.13(H) ft Dimensions Weight 550g / 1.21 lb TMW-8000T Handheld Microphone Carrier Frequency Range UHF 780-865 MHz Microphone Element Dynamic Microphone Quartz controlled fixed frequency Oscillation Mode...
  • Page 14 Manual de Usuario TMW-8000R/T/P Sistema Inalambrico Profesional...
  • Page 15 PRECAUCION NO ABRIR, PELIGRO DE GOLPE ELECTRICO...
  • Page 18 RECEIVER HANDHELD MICROPHONE...
  • Page 19 BODYPACK with LAVALIER LM-10 (4B)
  • Page 25 BALANCED XLR-M connector UNBALANCED JACK connector...
  • Page 26 Handheld Microphone Connection Bodypack Connection...
  • Page 29 NF02447-1.0...
