Summary of Contents for Challenge KJ200G-D41

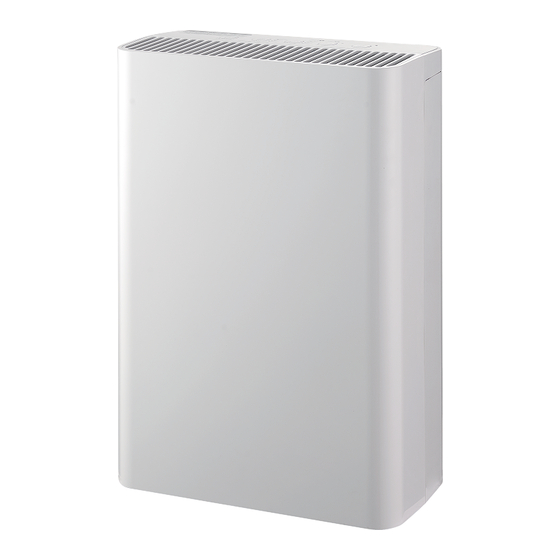

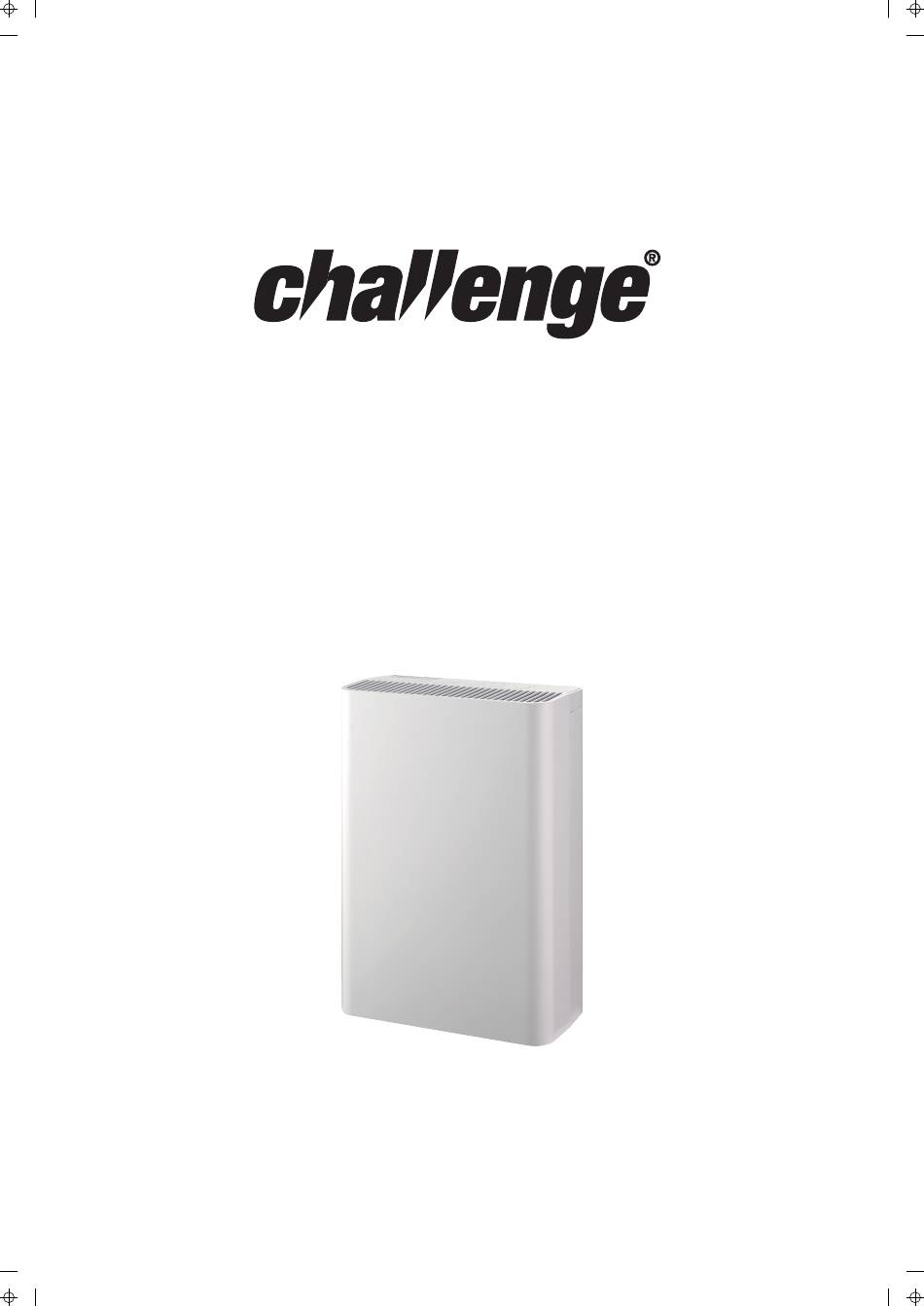

- Page 1 Air Purifier Instruction Manual Model No.: KJ200G-D41 READ AND SAVE THESE INSTRUCTIONS...
-
Page 2: Table Of Contents
CONTENTS SAFETY WARNINGS ................ IDENTIFICATION OF PARTS ............. INSTALLATION ..................PLACEMENT ..................OPERATION ..................CARE AND MAINTENANCE ............. TECHNICAL INFORMATION ............TROUBLESHOOTHING ..............CONNECTION TO POWER ............ -
Page 3: Safety Warnings
Safety Warnings - If the supply cord is damaged, it must be replaced by manufacturer,its service agent or a similarly qualified person in order to avoid a hazard. - This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and... - Page 4 - Do not insert foreign matters at air inlet and outlet - If it is not used for a long time, please pull out the plug, put the machine back in the carton, and store it in the locker. - It is forbidden to store flammable and explosive gas at the place where the purifier is used - Avoid long-time direct sunlight - It is forbidden to use the machine at places with heavy moisture and...
-
Page 5: Identification Of Parts
Identification of parts ① ④ ⑤ ② ⑥ ③ ⑦ Filter Turbo High POWER TIMER SLEEP Press 3s, Auto mode Press 3s, to reset Filter ① control panel fan button ② air outlet fan indicator light ③ front case timer button ④... -
Page 6: Installation
Installation Filter installation - IMPORTANT THE FILTER WAS PACKED INTO A POLYBAG BEFORE PACKING. IT IS A MUST TO TAKE OUT TO REMOVE THE POLYBAG BEFORE 1ST USE. 1. Open the back cover (see fig.1) Fig.1 2. Remove the packed filter from machine. (see fig.2) Fig.2 3. -
Page 7: Placement
Placement When positioning the air purifier, ensure that it is placed on a level surface and that there is a minimum of 30cm of space on either side of the unit to allow for efficient airflow. We do not recommend the use of an extension lead, so please try to ensure that the unit is sufficiently close to a fixed main socket. -
Page 8: Operation
Operation Filter Turbo High POWER TIMER SLEEP Press 3s, Auto mode Press 3s, to reset Filter 1. ON/OFF button POWER Press the button once to start the unit. Press it again to shut it down. 2. Fan button Press the button to adjust fan speed. It will switch from Turbo – High – Mid – Low. The relevant indicator will be illuminated. -
Page 9: Care And Maintenance
How PM2.5 affect people's health: Particles in the PM2.5 size range are able to travel deeply into the respiratory tract, reaching the lungs. Exposure to fine particles can cause short-term health effects such as eye, nose, throat and lung irritation, coughing, sneezing, runny nose and shortness of breath. - Page 10 Special warning - Do not wash the filter with water. This will damage the filter. - When cleaning the filter screen, it is recommended to use small soft hairbrush or household dust collector; - When cleaning with hairbrush, brush horizontally along with the filter screen, and avoid vertical brush as much as possible so as not to damage the filter screen;...
-
Page 11: Technical Information
Technical information Model KJ200G-D41 Applying area (m ) 20-24 Rated voltage (V~) 220-240 Rated frequency (Hz) Rated power (W) Noise [dB (A)] 35~60 Purification efficiency particles Efficient level Purification efficiency formaldehyde Efficient level Net Weight (kg) Dimensions (mm) (length x width x height) -
Page 12: Troubleshoothing
Troubleshoothing Never try to repair or dismantle the appliance yourself. Incompetent repairs result in loss of warranty and can endanger the user and the property. If you have any question, please consult the qualified person. Problems encountered Reason Solution During continuous - Room area may exceed purification - Please keep the purifier operating operation, the air... -
Page 13: Connection To Power
Connection To Power CORRECT DISPOSAL OF THIS PRODUCT This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. - Page 14 PRODUCT GUARANTEE This product is guaranteed against manufacturing defects for a period of Year This product is guaranteed for twelve months from the date of original purchase. Any defect that arises due to faulty materials or workmanship will either be replaced, refunded or repaired free of charge where possible during this period by the dealer from whom you purchased the unit.
