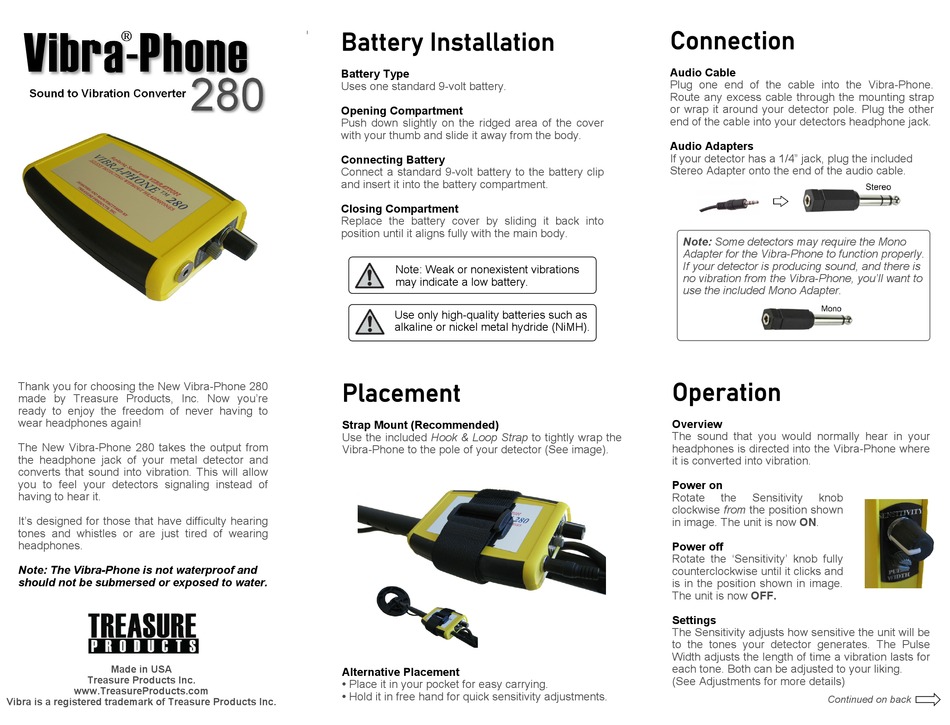

Treasure Cove Vibra-Phone 280 Manual

Vibra-Phone

Sound to Vibration Converter

Thank you for choosing the New Vibra-Phone 280
made by Treasure Products, Inc. Now you're
ready to enjoy the freedom of never having to
wear headphones again!
The New Vibra-Phone 280 takes the output from
the headphone jack of your metal detector and
converts that sound into vibration. This will allow
you to feel your detectors signaling instead of
having to hear it.
It's designed for those that have difficulty hearing
tones and whistles or are just tired of wearing
headphones.
Note: The Vibra-Phone is not waterproof and
should not be submersed or exposed to water.
Made in USA
Treasure Products Inc.
www.TreasureProducts.com
Vibra is a registered trademark of Treasure Products Inc.

Battery Installation

Battery Type
280
Uses one standard 9-volt battery.
Opening Compartment
Push down slightly on the ridged area of the cover
with your thumb and slide it away from the body.
Connecting Battery
Connect a standard 9-volt battery to the battery clip
and insert it into the battery compartment.
Closing Compartment
Replace the battery cover by sliding it back into
position until it aligns fully with the main body.

Placement

Strap Mount (Recommended)
Use the included Hook & Loop Strap to tightly wrap the
Vibra-Phone to the pole of your detector (See image).
Alternative Placement
• Place it in your pocket for easy carrying.
• Hold it in free hand for quick sensitivity adjustments.
Note: Weak or nonexistent vibrations
may indicate a low battery.
Use only high-quality batteries such as
alkaline or nickel metal hydride (NiMH).

Connection

Audio Cable
Plug one end of the cable into the Vibra-Phone.
Route any excess cable through the mounting strap
or wrap it around your detector pole. Plug the other
end of the cable into your detectors headphone jack.
Audio Adapters
If your detector has a 1/4" jack, plug the included
Stereo Adapter onto the end of the audio cable.
Note: Some detectors may require the Mono
Adapter for the Vibra-Phone to function properly.
If your detector is producing sound, and there is
no vibration from the Vibra-Phone, you'll want to
use the included Mono Adapter.

Operation

Overview
The sound that you would normally hear in your
headphones is directed into the Vibra-Phone where
it is converted into vibration.
Power on
Rotate the Sensitivity knob
clockwise from the position shown
in image. The unit is now ON.
Power off
Rotate the 'Sensitivity' knob fully
counterclockwise until it clicks and
is in the position shown in image.
The unit is now OFF.
Settings
The Sensitivity adjusts how sensitive the unit will be
to the tones your detector generates. The Pulse
Width adjusts the length of time a vibration lasts for
each tone. Both can be adjusted to your liking.
(See Adjustments for more details)
Continued on back
