SHELF & DRAWER LOCATIONS

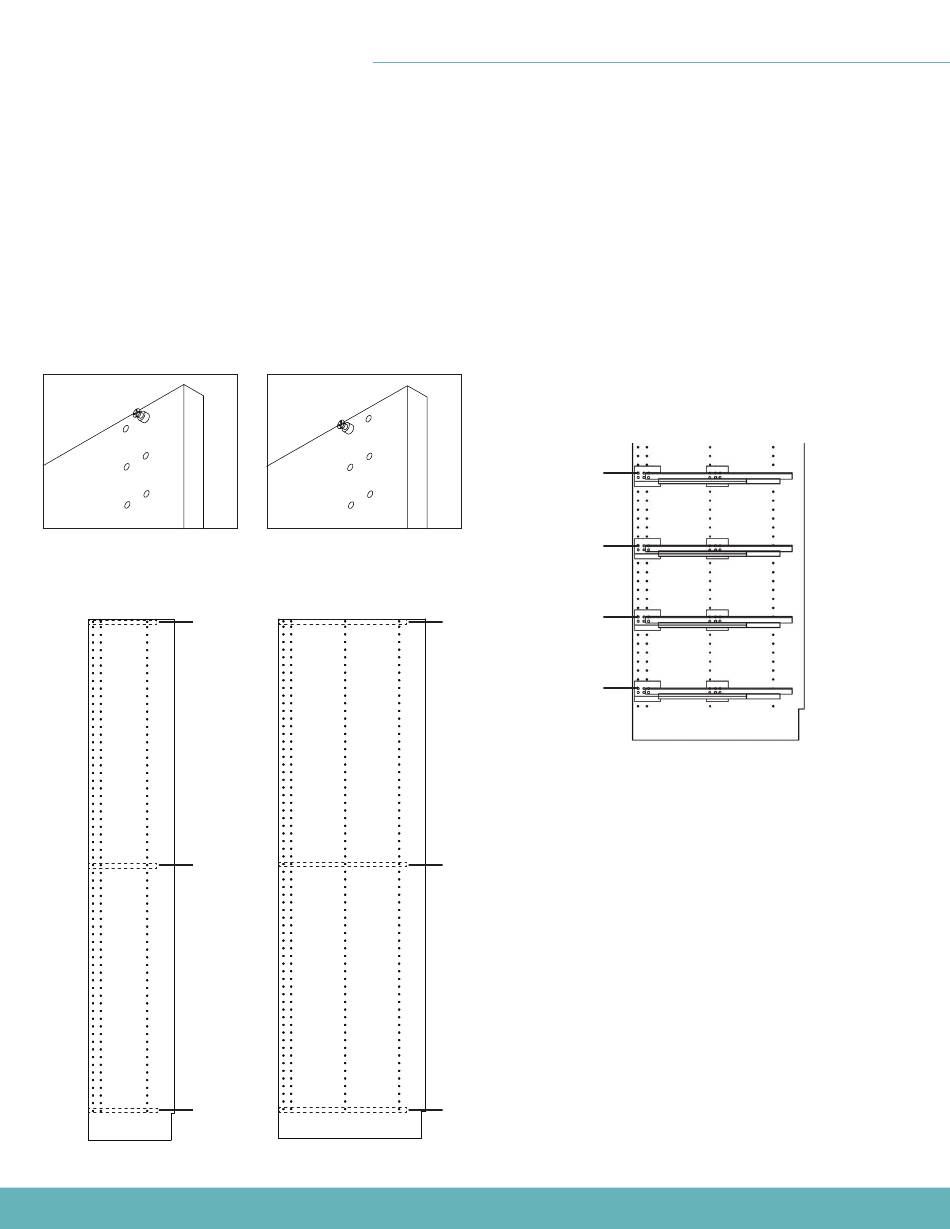

CAM LOCK DOWEL LOCATIONS
1 14" depth uprights and shelves will require cam dowels
to be installed in the front column of holes and back
coulmn of holes.
24" depth uprights and shelves will require cam dowels
2
to be installed in the second column of holes and back
coulmn of holes.
3 When installing a 14" depth shelf in a 24" depth upright,
the cam dowels will be installed in the third column of
holes and back column of holes.
14" Depth
1
33
65
14" Depth
CAM LOCK SHELF LOCATIONS
1 All shelves will be installed in the top row of holes on
the upright. Other configurations will require the 33rd
row from the top and last row (65th) for a center and
bottom shelf.
2 Any additional shelves can be placed where desired for
optimal storage.
DRAWER LOCATIONS - 4 DRAWER BANK
This configuration is made from Medium Drawer Kits.
Follow step-by-step instructions with your drawer kit.
Refer to this layout for glide installation location.
Note: There is no bottom shelf installed with drawer banks.
24" Depth
1
33
65
24" Depth
39
47
55
63
24" Depth
7
