Summary of Contents for Broadata Communications Link Bridge LBC-24PI

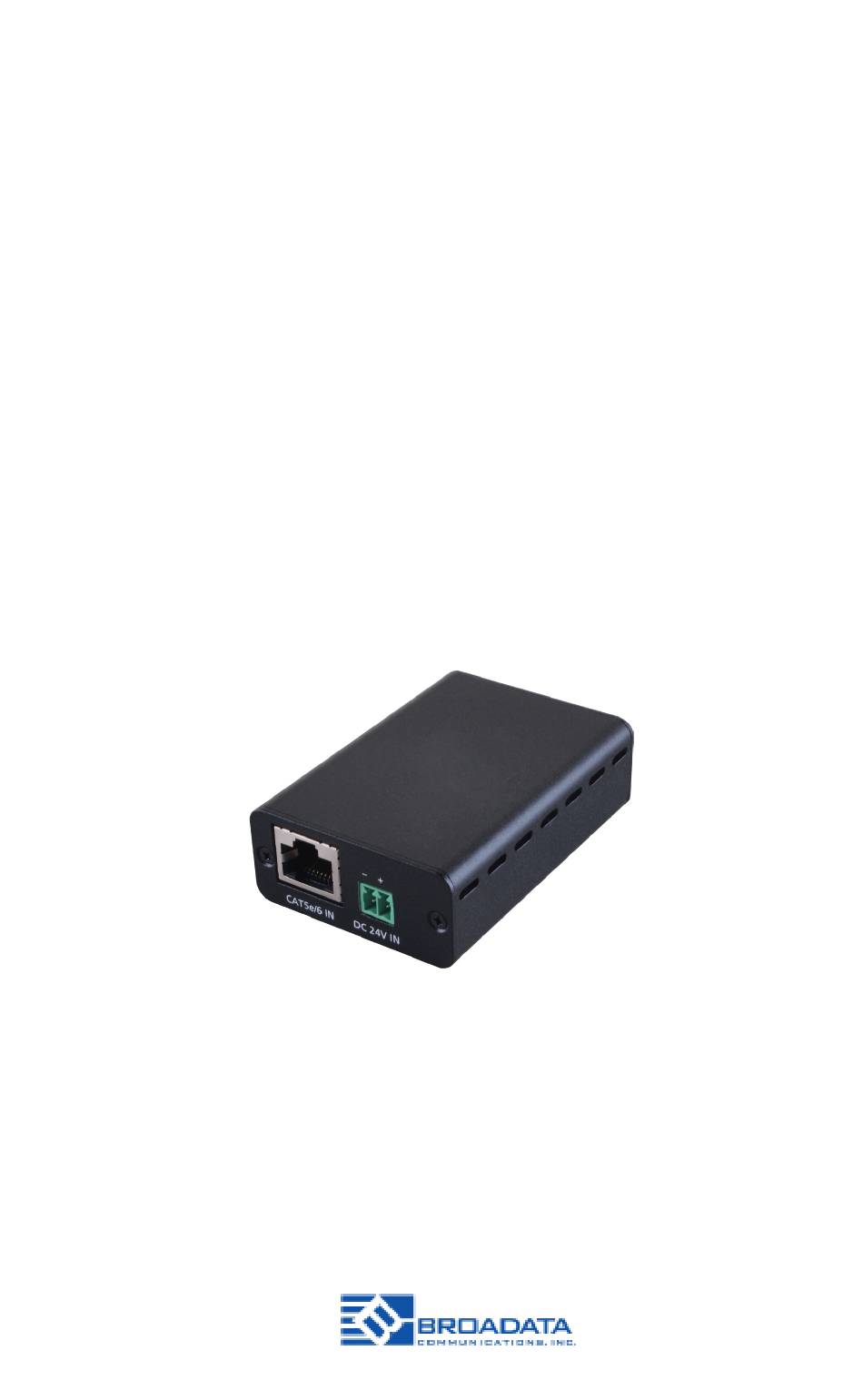

- Page 1 Link Bridge 24V HDBaseT Power Inserter BCI reserves the right to make changes to the products described herein without prior notice or consent. No liability is assumed as a result of their use or application. All rights reserved. ©2017 Broadata Communications, Inc.
- Page 3 LBC-24PI User’s Manual Link Bridge 24V HDBaseT Power Inserter SAFETY INSTRUCTIONS AND COMPLIANCE DECLARATIONS PLEASE OBSERVE THE FOLLOWING SAFETY PRECAUTIONS SURGE PROTECTION DEVICE RECOMMENDED This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lightning strikes, etc.
-
Page 4: Table Of Contents
LBC-24PI User’s Manual Link Bridge 24V HDBaseT Power Inserter TABLE OF CONTENTS 1.0 PRODUCT DESCRIPTION............... 5 2.0 OPERATION CONTROLS AND FUNCTIONS........6 2.1 FRONT PANEL.................. 6 2.2 REAR PANEL ................7 3.0 SPECIFICATIONS ................8 4.0 SERVICE PROCEDURE..............9 4.1 REPLACEMENT POLICY ..............9 4.2 RETURN &... -
Page 5: Product Description
LBC-24PI User’s Manual Link Bridge 24V HDBaseT Power Inserter 1.0 PRODUCT DESCRIPTION FEATURES • Insert 24V power into HDBaseT link • Supports HDBaseT signal bypass • Supports Power cascading Broadata Technical Support, Sales@Broadatacom.com... -
Page 6: Operation Controls And Functions
LBC-24PI User’s Manual Link Bridge 24V HDBaseT Power Inserter 2.0 OPERATION CONTROLS AND FUNCTIONS 2.1 Front Panel 1. CAT5e/6/7 IN: Connect CAT5e/6/7 cable from a compatible Transmitter. 2. DC 24V IN: Connect 24V DC power supply into the unit with 3.5mm 2-pole Terminal Block connector and connect the adaptor to an AC outlet. -
Page 7: Rear Panel
LBC-24PI User’s Manual Link Bridge 24V HDBaseT Power Inserter 2.2 Rear Panel 1. POWER LED: This LED will illuminate when the power is connected to power supply. 2. DC 24V OUT: Connect this slot to another compatible Receiver for power cascading. 3. -
Page 8: Specifications
LBC-24PI User’s Manual Link Bridge 24V HDBaseT Power Inserter 3.0 SPECIFICATIONS Power Inserter Input One (1) HDBaseT Input port, RJ45 One (1) 24V Power Input port, terminal block Output One (1) HDBaseT Output port, RJ45 One (1) 24V Power Output port, terminal block Video Resolution 480i/576i/480P/576P/720P/1080i/108OP,... -
Page 9: Service Procedure
The LBC-24PI System contains no user serviceable components. If you have a problem with your unit, please contact the Customer Service Department. To facilitate our return/ repair processing please contact Broadata Communications, Inc. to obtain a Return Material Authorization (RMA). Please include the following information: •... -
Page 10: Limited Warranty
Link Bridge 24V HDBaseT Power Inserter 5.0 LIMITED WARRANTY Broadata Communications, Inc. (BCI) warrants, for a period of one year from date of shipment, each product sold shall be free from defects in material and workmanship. BCI will correct, either by repair, or at BCI’s... - Page 11 LBC-24PI User’s Manual Link Bridge 24V HDBaseT Power Inserter Broadata Technical Support, Sales@Broadatacom.com...
- Page 12 Broadata Communications, Inc. 2545 West 237th Street, Suite K Torrance, CA 90505 1-800-214-0222 (310) 530-1416 (310) 530-5958 (Facsimile) e-mail: CustomerService@Broadatacom.com Website: www.broadatacom.com LBC-24PI...
