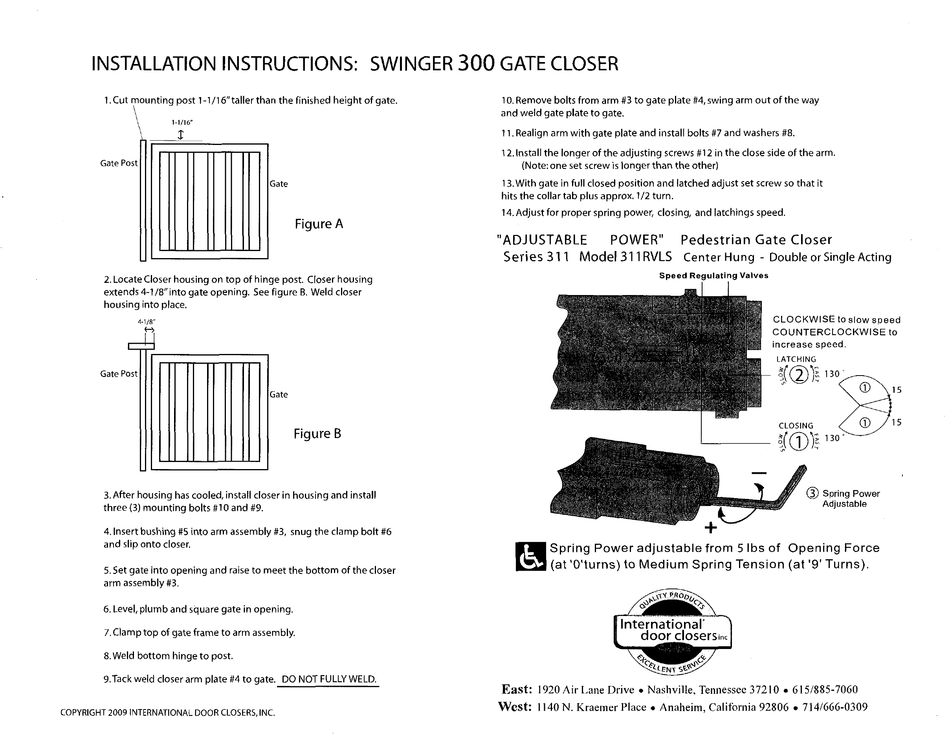

INSTALLATION INSTRUCTIONS: SWINGER
300
GATE CLOSER
1. Cut mounting post 1-1/16"taller than the finished height of gate.
1-1/16"
l
Gate Post
Gate
Figure A
2. Locate Closer housing on top of hinge post. Closer housing
extends 4-1 /8" into gate opening. See figure B. Weld closer
housing into place.
Gate Post
4·1/8"
f-7
Gate
Figure B
3. After housing has cooled, install closer in housing and install
three (3) mounting bolts #10 and #9.
4.1nsert bushing #S into arm assembly #3, snug the clamp bolt #6
and slip onto closer.
5. Set gate into opening and raise to meet the bottom of the closer
arm assembly #3.
6. Level, plumb and square gate in opening.
7. Clamp top of gate frame to arm assembly.
8. Weld bottom hinge to post.
9.Tack weld closer arm plate #4 to gate. DO NOT FULLY WELD.
COPYRIGHT 20091NTERNATIONAL DOOR CLOSERS, INC.
1 0. Remove bolts from arm #3 to gate plate #4, swing arm out of the way
and weld gate plate to gate.
11. Realign arm with gate plate and install bolts #7 and washers #8.
12.1nstall the longer of the adjusting screws #12 in the close side of the arm.
(Note: one set screw is longer than the other)
13. With gate in full closed position and latched adjust set screw so that it
hits the collar tab plus approx. 1/2 turn.
14. Adjust for proper spring power, closing, and latchings speed.
"ADJUSTABLE POWER" Pedestrian Gate Closer
Series 311 Model311 RVLS Center Hung - Double or Single Acting
CLOCKWISE to slow speed
COUNTERCLOCKWISE to
increase speed.
LATCHING
s(Q))E
130
" ' m1
15
CLOSING
CD
15
t(
G)
JE
130,
G)
Spring Power
Adjustable
~Spring
Power adjustable from 5 lbs of Opening Force
~(at 'O'turns) to Medium Spring Tension (at '9' Turns).
