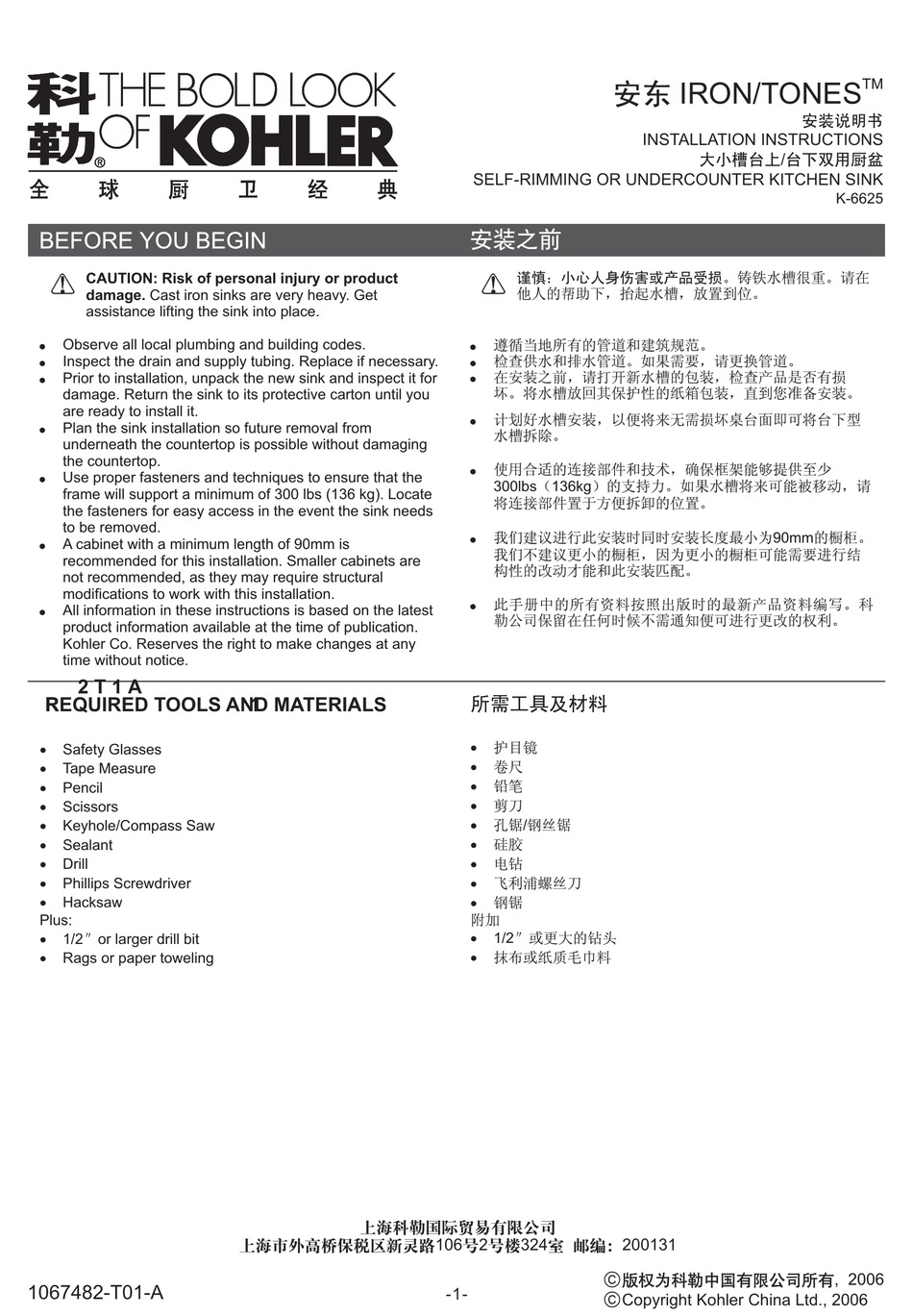

Kohler IRON/TONES K-6625 Installation Instructions Manual
Self-rimming or undercounter kitchen sink
Hide thumbs
Also See for IRON/TONES K-6625:
- Installation and care manual (17 pages) ,
- Installation and care manual (17 pages)
Advertisement
Quick Links
CAUTION: Risk of personal injury or product
damage. Cast iron sinks are very heavy. Get
assistance lifting the sink into place.
!
Observe all local plumbing and building codes.
!
Inspect the drain and supply tubing. Replace if necessary.
!
Prior to installation, unpack the new sink and inspect it for
damage. Return the sink to its protective carton until you
are ready to install it.
!
Plan the sink installation so future removal from
underneath the countertop is possible without damaging
the countertop.
!
Use proper fasteners and techniques to ensure that the
frame will support a minimum of 300 lbs (136 kg). Locate
the fasteners for easy access in the event the sink needs
to be removed.
!
A cabinet with a minimum length of 90mm is
recommended for this installation. Smaller cabinets are
not recommended, as they may require structural
modifications to work with this installation.
!
All information in these instructions is based on the latest
product information available at the time of publication.
Kohler Co. Reserves the right to make changes at any
time without notice.
2 T 1 A
R
REQUIRED TOOLS AND MATERIALS
·
Safety Glasses
·
Tape Measure
·
Pencil
·
Scissors
·
Keyhole/Compass Saw
·
Sealant
·
Drill
·
Phillips Screwdriver
·
Hacksaw
Plus:
·
1/2 or larger drill bit
·
Rags or paper toweling
1067482-T01-A
1
SELF-RIMMING OR UNDERCOUNTER KITCHEN SINK
!
!
!
!
!
300lbs 136kg
!
!
·
·
·
·
·
/
·
·
·
·
·
1/2
·
106 2
324
-1-
IRON/TONES
INSTALLATION INSTRUCTIONS
/
90mm
200131
Copyright Kohler China Ltd., 2006
TM
K-6625
, 2006
Advertisement
Related Manuals for Kohler IRON/TONES K-6625
Summary of Contents for Kohler IRON/TONES K-6625
- Page 1 All information in these instructions is based on the latest product information available at the time of publication. Kohler Co. Reserves the right to make changes at any time without notice. 2 T 1 A REQUIRED TOOLS AND MATERIALS ·...
-
Page 2: Installation
Carefully position the sink into the countertop opening so Kohler “ ” the Kohler logo is to the back. Verify fit and position. Make any needed adjustments. Apply a thin continuous bead of quality sealant around the sink edges. Immediately wipe away any excess sealant, and fill any voids as needed. -
Page 3: Undercounter Installation
2. UNDERCOUNTER INSTALLATION A. Prepare the Site CAUTION: Risk of personal injury or product damage. Do not support the sink by the sink rim. The support framing, not the rim, should withstand the entire weight of the sink when it is full of water. IMPORTANT! Inspect the flooring at the installation site. - Page 4 Drill 1/8 (3 mm) starter holes at the marks. 1/8 (3mm) “ ” Proceed to the Install the Sink section. Side to Side Installation Front of Cabinet Rails Bolt C. Install the Optional Support Frame CAUTION: Risk of personal injury or product damage.
- Page 5 D. Install the Sink CAUTION: Risk of personal injury or product damage. Cast iron sinks are very heavy. Get help when lifting the sink into place. Wear safety shoes and glasses. Carefully position the sink within the wood frame. Make sure that the sink is centered in the cabinet.
- Page 6 F. Complete the Installation CAUTION: Risk of product damage. Do not cut, drill, or sand the countertop while positioned over the fixture. Sand the edge of the cutout to smooth the surface and remove all saw marks. For laminate-type countertops, waterproof all unprotected areas of wood.
-
Page 7: Limited One-Year Warranty
LIMITED ONE-YEAR WARRANTY LIMITED ONE-YEAR WARRANTY Kohler plumbing fixtures and fittings are warranted to be free of manufacturing defects. This product is warranted for one year from date of purchase. Kohler China will be responsible for any problems caused by manufacturing defects provided with the invoice.
