Summary of Contents for Westward 49NR88

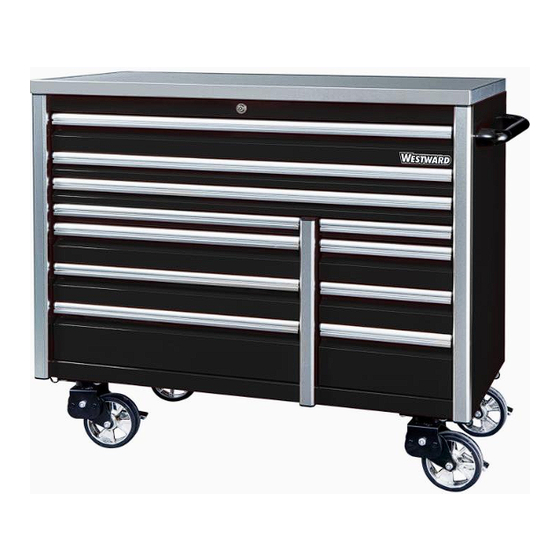

- Page 1 Operating Instructions & Parts Manual ROLLER CABINET Models: 4 9 N R 8 8 / 4 9 N R 8 9 4 9 N R 9 0 / 4 9 N R 9 1...
- Page 2 UNPACKING READ AND SA Steps: When unpacking, please ensure the unit is upright. READ CAREFULLY Do not use any sharp objects to open the packaging. BEFORE A ASSEMBLE, INST After unpacking unit, inspect carefully for any damage that may OPERA OR MAINTAIN THE have occurred during transit.
- Page 3 GENERAL SAFETY INFORMATION The Westward roller cabinet as a durable grey + black (Red) finish and strong load capacity. The roller cabinet is equipped with full extension SPECFICATIONS ball bearing slides, ensuring smooth functionality of all drawers, and round-shaped steel side. It also comes with 40mm stainless top Each drawer can hold up to 250 lbs (100kg)/ 500 lbs (200kg).
- Page 4 ASSEMBLY INSTRUCTIONS OPERAITON FOR DRAWER To remove the drawer: Description To remove drawers, release the retaining clip by pushing the lever up on one side and 1. Insert the round-shaped steel side handle into the down on the other side simultaneously slots of the plastic brackets.
- Page 5 REPAIR PARTS ILLUSTRATION FOR 49NR88/49NR89 LOCK REPLACMENT FOR 49NR88/49NR89 /49NR90/49NR91 /49NR90/49NR91 To remove lock and key set: 1. Remove all drawers for easy lock removal and installation. 2. Remove spring clip (3) using hand tool, eg: pinchers. 3. Pull out the whole central lock including key (1), lock (2), and central locking bar (4).
- Page 6 CASTER REPLACEMENT FOR 49NR88/49NR89/49NR90/ 49NR91 REPAIR PARTS LIST Carefully lay the roller cabinets on the its back with a soft mat underneath to protect the Ref.No. Part No. Description Q'ty finish. Remove the hex bolts and washer from the abnormal caster.
- Page 7 YOU WILL NEED TO PROVIDE, TO THE EXTENT AVAILABLE, THE PURCHASE DATE, THE ORIGINAL INVOICE NUMBER, THE STOCK NUMBER, A DESCRIPTION OF THE DEFECT AND ANYTHING ELSE SPECIFIED IN THIS WESTWARD ONE-YEAR LIMITED WARRANTY. YOU MAY BE REQUIRED TO SEND THE PRODUCT IN FOR INSPECTION AT YOUR COST. YOU CAN FOLLOW UP ON THE PROGRESS OF INSPECTIONS AND CORRECTIONS IN THE SAME WAYS.
