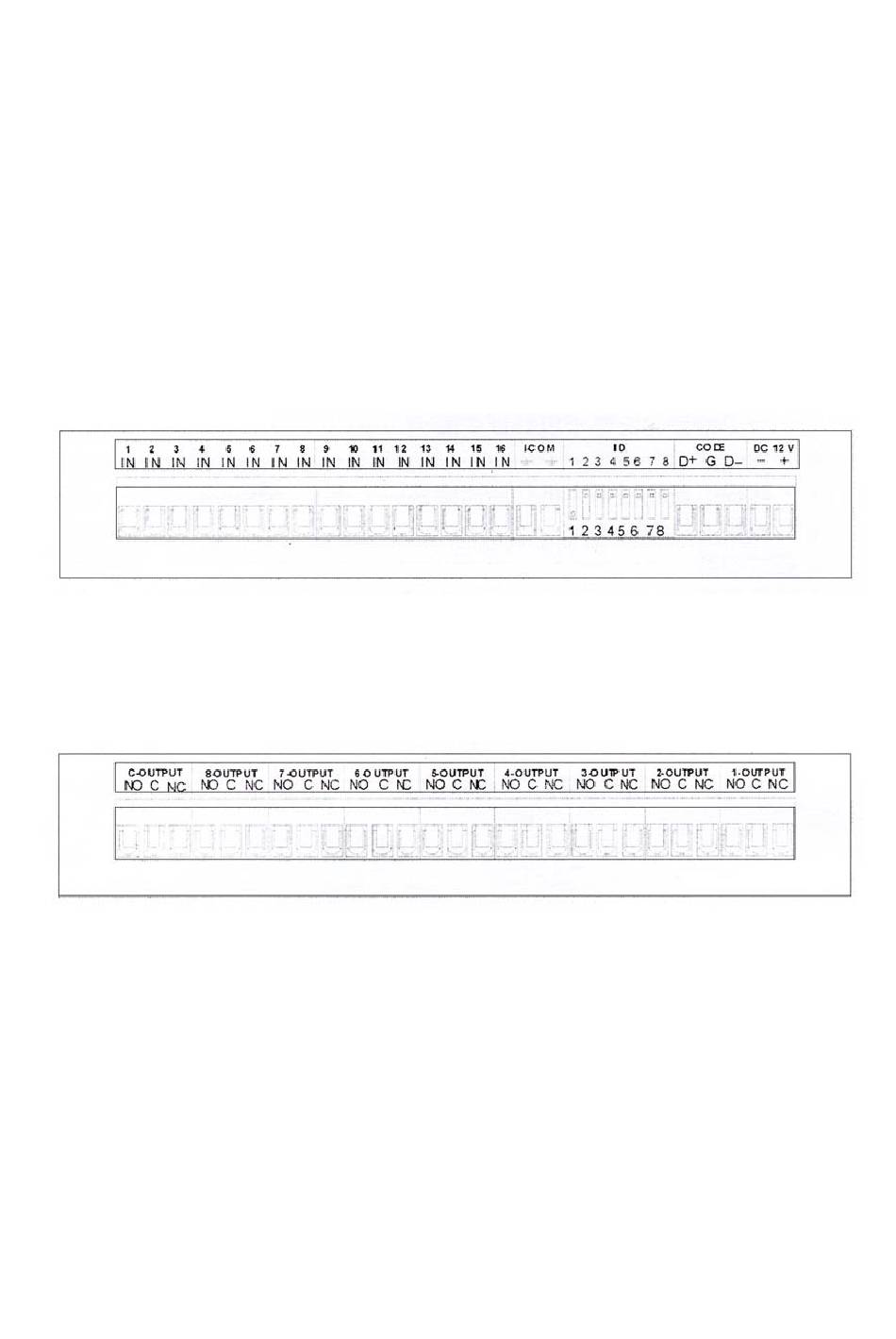

NC – Normal Close connecter ALARMS OUT indicator – Flashes when there is an alarm 1.3 Specifications Power Supply: ALM-0808 is DC12V/8W, ALM-1608 is DC12V/12W, ALM-1616 is AC220V/10W or AC110V/ 10W DI Port: N/C or N/O DO Port: N/C or N/O Output: 10A/DC28V or 7A/AC220V Working Temperature: -10℃...
Page 2
2. Device Setting 2.1 Device ID If you connect only one device to DVR, please set device ID=1. If you connect 2 devices to DVR, please set second device ID=2. Set ID=2 to control alarm –in port 17-32 2.2 Baud rate: Use default setting please.
Page 3
3. Connecting Diagram 3.1 Sensor connecting Note: The matching resistor is parallel connection with N/O Port but series connection with N/C Port. 3.2 Alarm connecting Select correctly N/C or N/O port for alarm device.
Page 4
3.3 DVR connecting Alarm functions need DVR software support, for software settings please refer to ILDVR Hybrid DVR Server & Live Center Operation Guide for more details. ID =1 ID =2 Manufacturer: ILDVR DIGITAL TECHNIOLGY USA INC Web site: www.ildvr.com Tech-support: support@ildvr.com...
