CAMERA CENTRAL POWER AND VIDEO ADAPTER
VIIFAM*7422

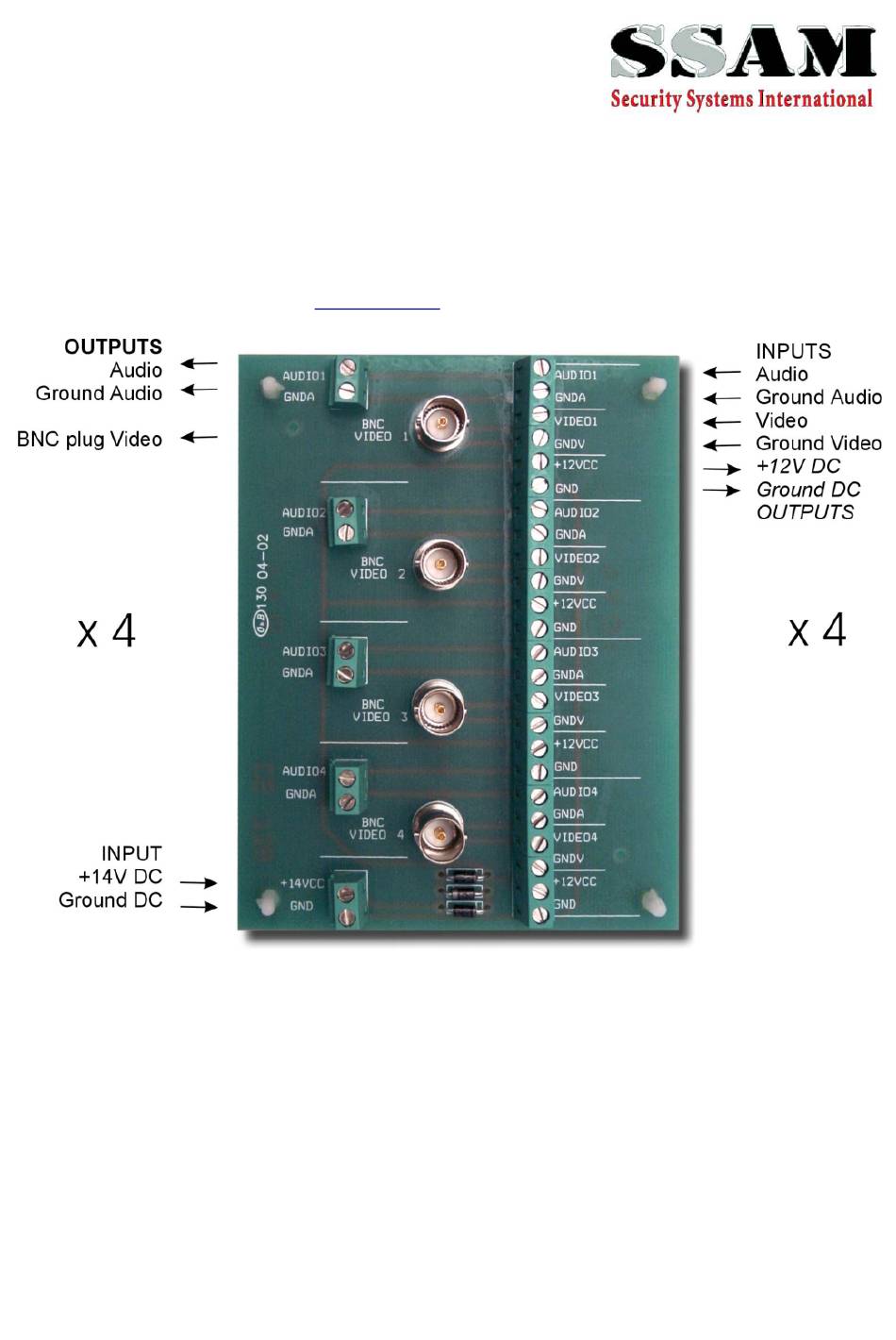

Using the VIIFAM*7422
This is the perfect Interface between a central power supply, videomanagement and the over the SSAM
combi-cable connected cameras. The clear usage and the easy installation of this print (only one cable per
camera) allows a fast and cheap installation. With the fastener added it is easy to place the print in a big
range of SSAM power supplies.
More Information on our internet side
www.ssam.com
TECHNICAL SPECIFICATIONS
Power Input ............................. 14,4V DC
Power Output .......................... 12,0V DC (you will need to adjust the voltage at your power-supply)
max. current (constant) ........... 3,0 A
max. current (peak) ................. 30,0 A
Video-Inputs .............................terminals High-Z for 1Vss / 75 Ohm
Audio-Inputs .............................terminals High-Z for microphone from device
Video-Outputs ..........................BNC plug High-Z for 1Vss / 75Ohm
Audio-Outputs ..........................terminals High-Z for audio devices
Humity ......................................10% to 95% relative / non condensing
Operation temperature .............-50° to 100°C
Dimensions (WxHxD) .............. 98 x 127 x 30 mm
Advertisement
Table of Contents
Summary of Contents for SSAM VIIFAM 7422 Series
-
Page 1: Technical Specifications
VIIFAM*7422 Using the VIIFAM*7422 This is the perfect Interface between a central power supply, videomanagement and the over the SSAM combi-cable connected cameras. The clear usage and the easy installation of this print (only one cable per camera) allows a fast and cheap installation. With the fastener added it is easy to place the print in a big range of SSAM power supplies. - Page 2 Attachments - Do not use attachments that have not been recommended by the product manufacturer as they may cause hazards. If you have any problems contact SSAM UK. This device must be connected with ground!
