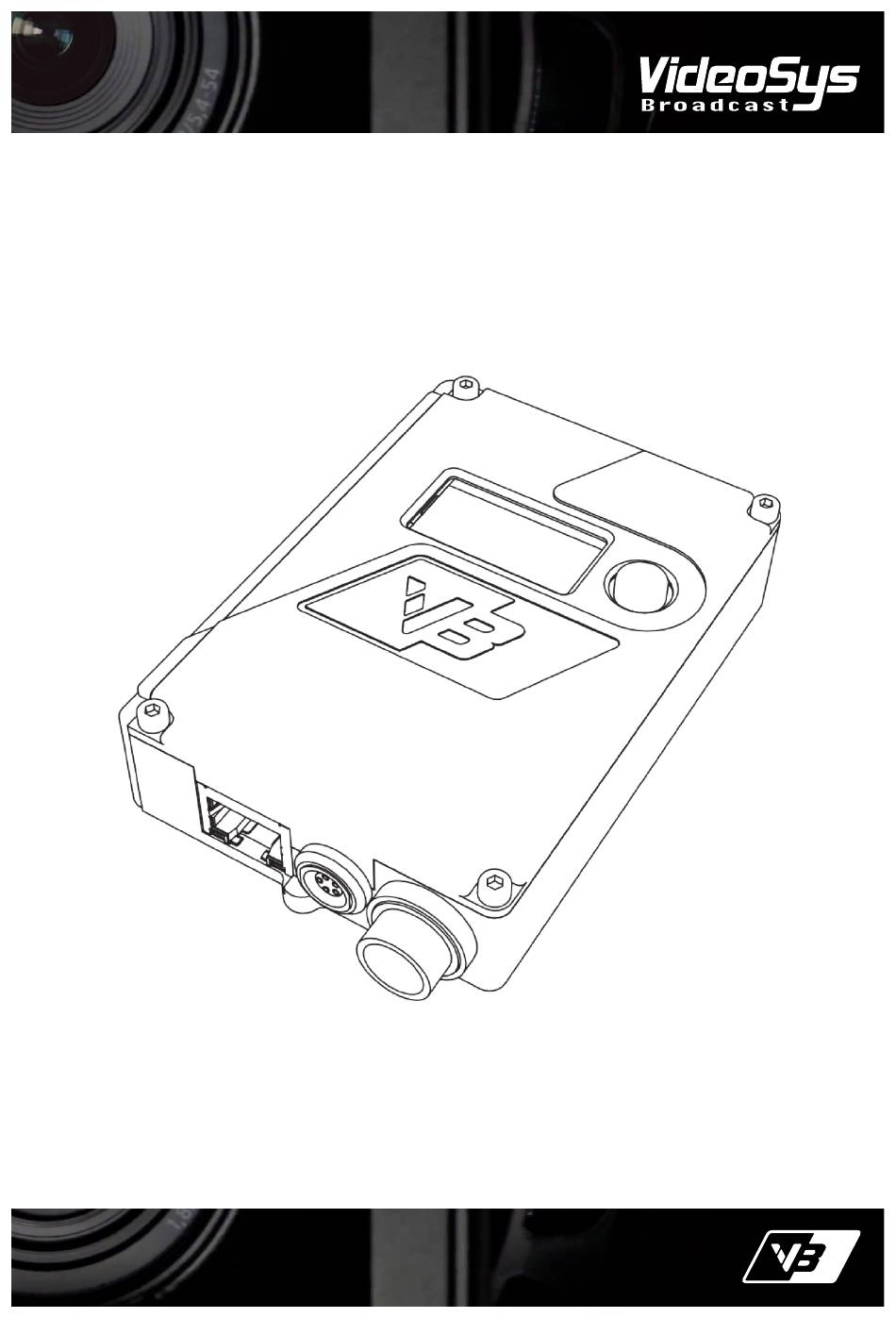

- Page 1 RXSM-E User Manual Revision 1.2 20/11/2019 +44 (0)1293 541 200 sales@videosys.tv videosys.tv...
-
Page 2: Table Of Contents
Your Camera Control Data Receiver Getting Started Introduction Front View Bottom Connectors Principal of Operation Connecting Components Navigating Menus Status Screens Menu Structure Camera Manufacturer Radio System Camera Number Network Web Interface Accessing the Web Interface Unit Updates Specifications WWW.VIDEOSYS.TV... -
Page 3: Your Camera Control Data Receiver
Your Camera Control Data Receiver Getting Started Front view Thank you for purchasing a VideoSys RX, we hope that you will find the necessary information within this manual and our specific quick setup guides, if however, you require additional support please don’t hesitate to contact your local distributor. -
Page 4: Principal Of Operation
Principal of Operation The VideoSys RX is a more than just a data receiver, it emulates a camera manufacturers RCP, allowing for a light weight communication protocol better optimised for transmission over RF to be used. Two fundamentally different operating modes can be both need to be good for successful control. -
Page 5: Navigating Menus
Navigating Menus Camera Manufacturer The Up, Down, Left, Right and Enter buttons can be used to navigate through the menus. Menus are organised into lists, Here, the unit allows for the Camera Manufacturer to be set these can be scrolled through with the Up and Down buttons. according to the camera used with the RX. -
Page 6: System
When changes are applied return to the Network Menu and back to the Main Menu where the RX will restart and set the Network Change(s). Fig 6. Manufacturer Change Camera Number Allows for a camera number to be set between 01 to 96 WWW.VIDEOSYS.TV... -
Page 7: Web Interface
Web Interface The RX has a built-in webserver and serves a range of useful control pages, if there is a device with a web browser on the same network, this interface can be used to quickly change settings and perform updates directly from a computer. Accessing the Web Interface To access the Web Interface, firstly power up the RX and connect a PC or laptop up to the same IP network as the RX. -
Page 8: Unit Updates
Unit Updates Selecting the Maintenance tab on the Web interface displays the Software Update screen. Updates can be downloaded from the VideoSys website. Once downloaded, click on the Choose File button. Downloads are usually found in the Downloads folder (Fig 10.). -
Page 9: Specifications
Specifications Power DC 9-17v supplied through camera cable or Lemo Connectors Generic Connector for all Manufacturer Hirose HR10A-10P (73) FGG.0B.305 LEMO External Tally Output SMA RF antenna connector Ethernet port - RJ45 Dimensions W 60mm x D 20mm x H 92mm Frequency 403 -473 MHz Interface... - Page 10 West Sussex, RH10 4QH +44 (0)1293 541 200 The information contained in this document is the property of VideoSys Broadcast Ltd. This document and the information contained herein is provided for evaluation purposes only and is sub ject to change without notice.
