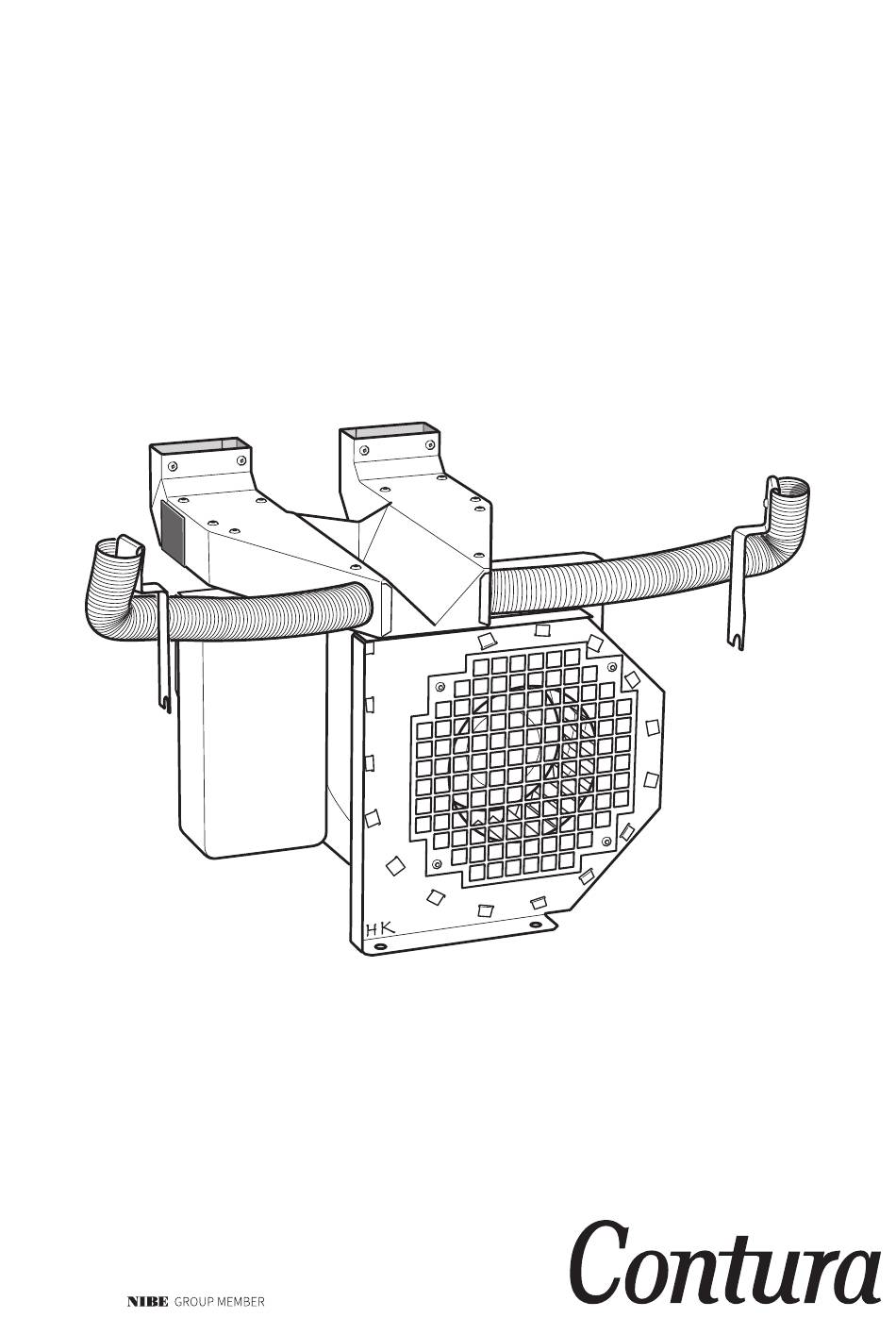

- Page 1 Installation instruction Fan 2000 - C500 contura.eu...
-
Page 2: Parts Supplied
Children must not clean or carry out maintenance on the appliance unless they are being supervised. The fan does not fit Contura 580. General Read through the entire installation instruction before installing the fan. The fan is installed under the heart and the installation is usually concealed by a plinth. -
Page 3: Installing The Fan
Installing the fan Screw the vibration dampers onto the mounting plate. Screw both the mounting plate and the clamp strip into the foot plate. Clamp strip Mounting plate Blind plugs are only installed when the fan is to be used with C520T. Otherwise the same installation. - Page 4 Insert the fan in the rectangular opening in the foot plate. The rear edge of the fan must be supported against the opening in the foot plate and the front edge is secured in the vibration dampers. Screw into place using M6x8 screws. Check that the rubber strip on the fan is against the edge of the opening in the foot plate otherwise noise will occur.
- Page 5 The mounting must be vertical when it is correctly installed, screw into place using the same screw that holds the clamp strip. The temperature sensor must only be attached using cable terminals. Impacts on the cable sheath are potentially lethal. In case of not using the fire over a longer period (e.g.
-
Page 6: Installing The Control Box
Power supply: 230V 50Hz Output: 40W NIBE AB · Box 134 · 285 23 Markaryd · Sweden www.contura.eu Contura reserves the right to change dimensions and procedures described in these instructions at any time 511496 MAV Fläkt C500-7 without special notice. The current edition can be 2018-09-06 downloaded from www.contura.eu...
