MODEL NO.
1207
1209
1208
1210
Please read entire manual before starting assembly and keep this
manual along with your purchase receipt for future reference.
WARNING:
CHOKING HAZARD-Small parts.
Not for children under 3 years.
CAUTION
Screws contain potentially
hazardous sharp points or
sharp edges. Adult assembly
required.
Contents, colors and decorations may vary from those shown.
WARNING:
Toy must be assembled by adult before use.
WARNING:
To reduce the risk of injury, adult
supervision is required. Never use on road
ways, near motor vehicles, on or near
steep inclines or steps, swimming pools or
other bodies of water. Always wear shoes,
and never allow more than one rider.
Advertisement
Table of Contents
Related Manuals for KID MOTORZ BMW M6 GT3 Series
Summary of Contents for KID MOTORZ BMW M6 GT3 Series
- Page 1 MODEL NO. 1207 1209 1208 1210 Please read entire manual before starting assembly and keep this manual along with your purchase receipt for future reference. WARNING: WARNING: CHOKING HAZARD-Small parts. Toy must be assembled by adult before use. Not for children under 3 years. CAUTION WARNING: To reduce the risk of injury, adult...
-
Page 2: Limited Warranty
IMPORTANT You must charge your battery for 12 hours before you use your vehicle for the first time. Remember to... Charge the battery immediately after each use. Charge the battery at least once a month during storage, even if the vehicle has not been used. The battery will be permanently damaged and void your warranty if you fail to follow the instructions. -
Page 3: Table Of Contents
Do not exceed the maximum weight capacity of 66 lbs. (30 kg). ● If you have any questions about your KID MOTORZ vehicle, please call our service lines at 1-909-643-9359 from 9 AM to 5 PM (PST ) Monday through Friday. Trained customer service representatives are available to take your call. -
Page 4: Warning
Warning To Prevent Serious Injuries Safe Driving Rules ●This product is intended for use by children ●ADULT SUPERVISION REQUIRED. MAKE SURE ages 3 and up, and is not intended for children CHILDREN KNOW AND FOLLOW THESE RULES under 3 years of age due to lack of ability to FOR SAFE DRIVING. -
Page 5: Battery Warning
Battery Warning About Thermal Fuses ELECTRICAL HAZARD • Your KID MOTORZ 12 volt battery is equipped with a built-in thermal fuse. The thermal fuse is a WARNING self-resetting safety device which automatically trips and shuts down operation of the vehicle if the... -
Page 6: Battery Charging
Battery Charging CAUTION • Non-rechargeable batteries are not to be recharged. • Make sure the charger connector is matching with the charging port. • Make sure the brand, voltage and frequency of the charger are in accordance with the wall outlet. •... -
Page 7: Battery Care And Disposal
Battery Care and Disposal Care Disposal • If a battery leak develops, avoid contact with the • This ride on contains is a sealed lead-acid battery. It leaking acid and place the damaged battery in a must be recycled or disposed of it in an environmentally plastics sealed bag. -
Page 8: Parts List
Parts List 1. Car body 8. Seat 15. Steering wheel screw (5 × 33PM) 2. Windshield 9. Seat backrest 16. Seat and backrest screw (4 × 15TAB) (D=7.5) -4PCS 3. Steering Wheel 10. Spoiler 17. Steering gearbox screw (3 × 10PWAB) (D=10) -2PCS 4. -
Page 9: Assembly
Assembly Children can be harmed by small parts, sharp edges and sharp points in the vehicles unassembled state, or by electrical items. Care should be taken in unpacking and assembling the vehicle. Children should not handle parts, including the battery, or help in the assembly of the vehicle. - Page 10 Assembly Installation the front wheels Press the center button of the wheels, insert the Press the wheels into the front axle and fix them; press the center button Front center button of the wheels to pull out the wheels of the wheels axle from the axle so as to remove the wheels.
- Page 11 Assembly Installation of steering wheel and hand shank Connect wire plug of the steering wheel into the Plug-in wire socket from the car body hole Car body correspondingly, and then put the connected plugs hole and socket into the car body hole. Install the steering wheel (part 3) on to the straight end of the J-shaped iron hook, and tighten with the steering wheel screw (part 15) and the...
- Page 12 Assembly Install the seat and seat back After the power supply is installated, put the Put the seat backrest (part 9) into the assigned seat (part 8) into the assigned location of the location of the car body as shown in the figure above, car body, and fix it with two screws (part 16).
-
Page 13: Operating Your Vehicle
Operating Your Vehicle Main functions: 1) There are remote controllable and pedal switch buttons. 2) Rear drive: Power motor gearbox provides powerful "front or rear" power. 3) Forward / backward function: There are three forward speed level, neutral gear and reverse gear on right side of the panel (each gear has its own LED display) 4) Foot pedal function: Press the foot pedal button, when the gear shifter is in forward or backward position, step down the foot pedal to move the car forward or backward, and release the foot pedal to stop the car. - Page 14 Operating Your Vehicle Steering wheel button: Normal operation: Foot switch mode The middle is the horn sound button, which will A. Press the main power switch button be sounded in any audio playback mode; press B. Press the foot pedal button and hold this button, the horn will sound C.
- Page 15 Operating Your Vehicle First gear, second gear 2.4G remote control and third gear lamps Forward / backward button Left/right movement button Speed change button Sudden brake button Operation of overcurrent protector 1) The overcurrent protector is installed under the seat. You can see it by twisting the seat screw off (As shown in the figure) and taking the seat away.
-
Page 16: Troubleshooting
Troubleshooting IMPORTANT! If you experience a problem with your vehicle, rst check the Problems and Solutions Guide below. If you still experience a problem, please contact our Service Center, at 1-909-643-9359 from 9 AM to 5 PM (PST) Monday through Friday. Or email us customerservice@funcreation.net or visit us www.funcreation.net for assistance and information from our trained technical staff. - Page 17 Average battery life is 1 to 3 years depending on a full charge vehicle use and use conditions. Replace the battery with a new KID MOTORZ 6 volt rechargeable battery. Do not substitute parts. Please contact our Service Center to get a replacement battery.
- Page 18 Troubleshooting Problem Possible Cause Solution Intermittent vehicle operation Loose wire or connector Check all wires around the motors and all connectors to make sure they are tight. Motor or electrical switch damage Contact our Service Center for diagnosis and repair. When the accelerator is Loose wire or connector Check all wires around the motors and all connectors...
Need help?
Do you have a question about the BMW M6 GT3 Series and is the answer not in the manual?
Questions and answers
Thank you, the car works fine and all wires are connected as should be, it’s just the controller that is not operating. I have followed the above instructions. Could you suggest anything else?
If the controller is not operating despite all wires being connected, follow these steps:
1. Check whether the remote control battery power is low and replace the batteries if needed.
2. Verify if the code-matching function is operating correctly. To do this:
- Press the main power switch button to turn on the vehicle (code-matching is valid within two minutes after powering on).
- Simultaneously press and hold the speed change button and sudden brake button on the remote control for 5 seconds.
3. If the issue persists, take the controller to the Service Center for further diagnosis.
This answer is automatically generated

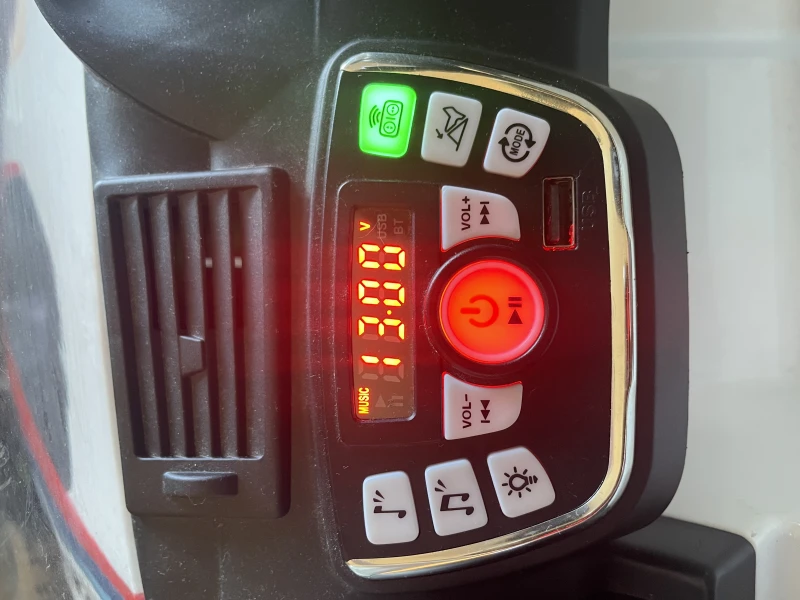

The battery has been fully charged and all other functions appear to be working

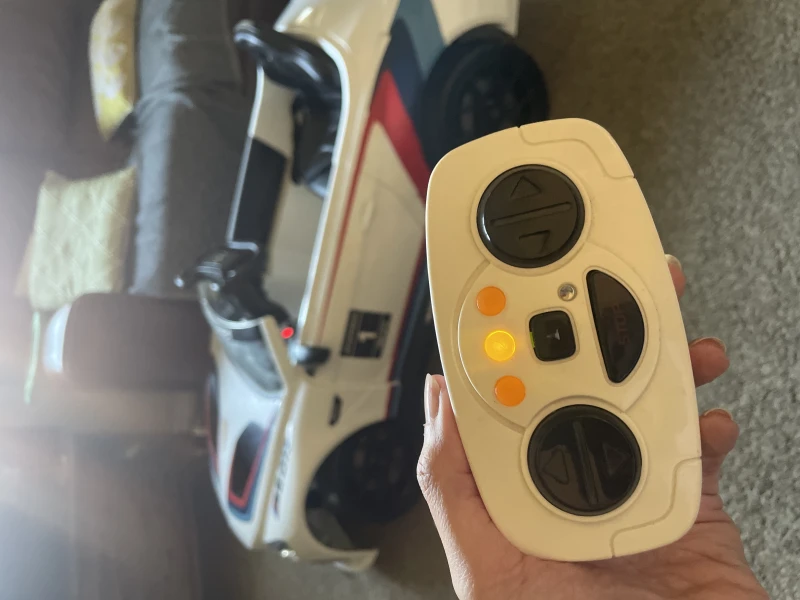

Remote control is not working, the batteries have been replace all lights on controller are working but no signal to the car
The remote control may not be working despite the lights being functional due to one of the following reasons:
1. The remote control may not be properly code-matched with the car. To fix this, simultaneously press the speed change button and sudden brake button for 5 seconds until the gear lamps twinkle and then stay on, indicating successful code-matching.
2. The car may be in sleep mode. If no operation occurs within 1 minute, the system enters sleep mode. Press any button to wake it up.
3. The central control board may be powered off due to charging. When charging, all functions shut down, and the car cannot be operated.
4. The car's battery may have low voltage (below 8V), which triggers automatic power-off for protection. Charge the battery as soon as possible.
5. There may be a circuit issue, such as an open or short circuit, or the overcurrent protector may have tripped. Check the wiring and wait 10 seconds for the breaker to reset if it was overloaded.
This answer is automatically generated
@Mr. Anderson thank you, with option 1 the lights twinkled however there is still no out put
What would I need to check with the wiring?
For the KID MOTORZ BMW M6 GT3 Series, check the following wiring issues:
- Ensure all connectors are secure and properly plugged in.
- Make sure the charger is connected to the wall outlet and the outlet has power.
- Confirm the motor harness connector is tightly connected to the battery.
- Inspect for loose wires or connectors if the car suddenly stops running.
This answer is automatically generated
Where would my nearest service centre be? I’m am based in Birmingham, England
