Z-Lite 552PHBR-BK-LED Assembly And Installation Instructions

ASSEMBLY AND INSTALLATION INSTRUCTIONS

Warning:

Read instructions carefully.If you are unclear as to how to proceed, consult a qualified
electrician. NOTE: Proper wiring is essential for the safe operation of this fixture.
Carefully unpack fixture and parts. Make sure all parts are included before discarding any
packing materials
Before installing, consult local electrical codes for wiring and grounding requirements
Be sure to shut off power at the main fuse or circuit breaker box before installing this fixture
Do not install or connect wires with wet hands

Assembly and Installation Step:

1.Put the pipe through the cover, then screw the pipe tight onto the fixture body
2.Put rubber gasket(1),2 caps, rubber gasket (2), and finial on the pipe one by one
3.Screw the finial tight
4.Make wire connections with wire nuts:
a. The black wire from fixture to the black wire from power source.
b. The white wire from fixture to the white wire from power source.
c. Attach the ground wire from the fixture to the outlet box ground screw or
to the green screw located on the crossbar.
5.Place the Fixture to the Post, and then secure with Mounting Screws.
6.Turn on the power at fuse or circuit box.

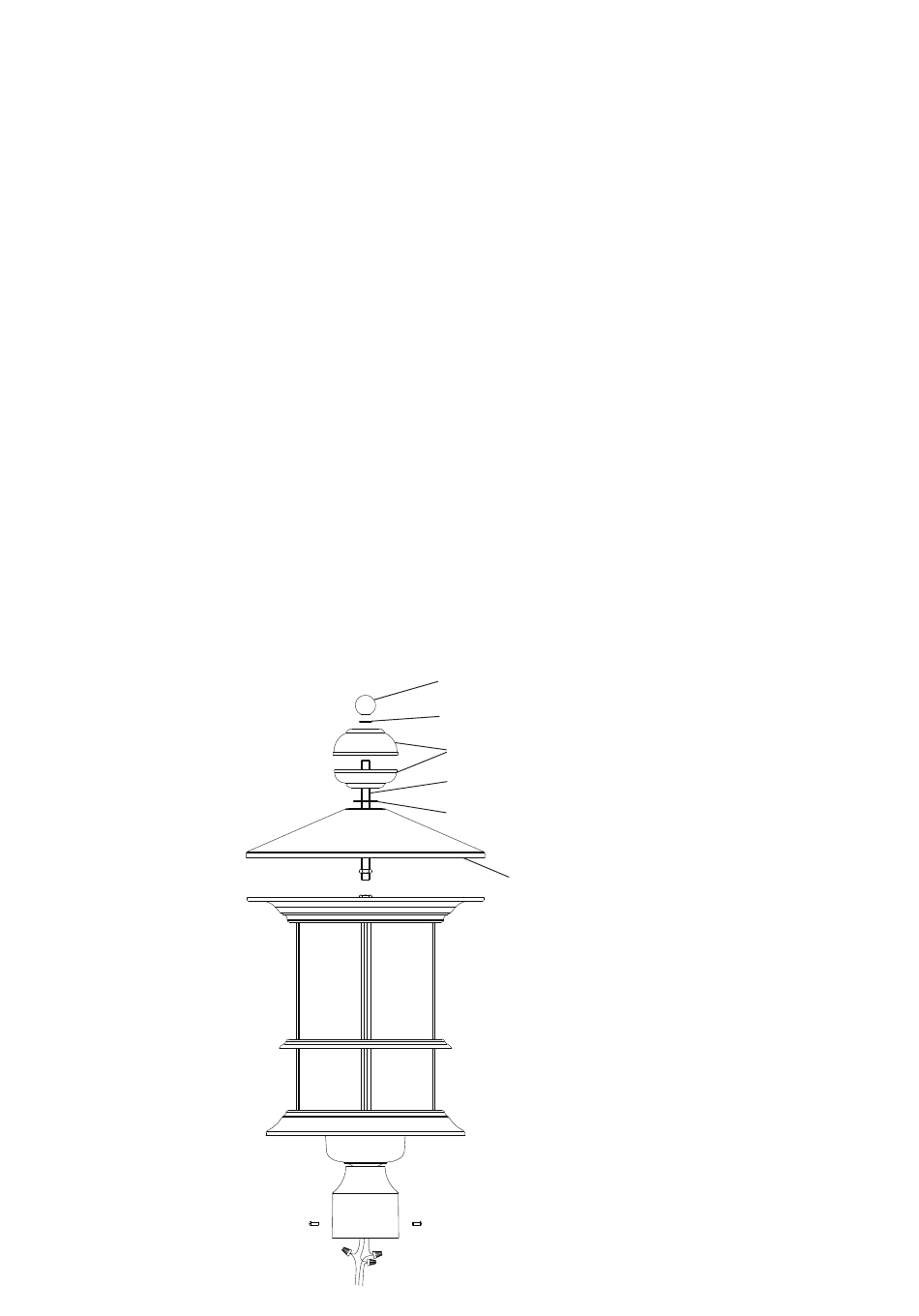

finial
rubber gasket(2)
cap
pipe
rubber gasket(1)
cover
552PHMR-BK-LED
552PHBR-BK-LED
