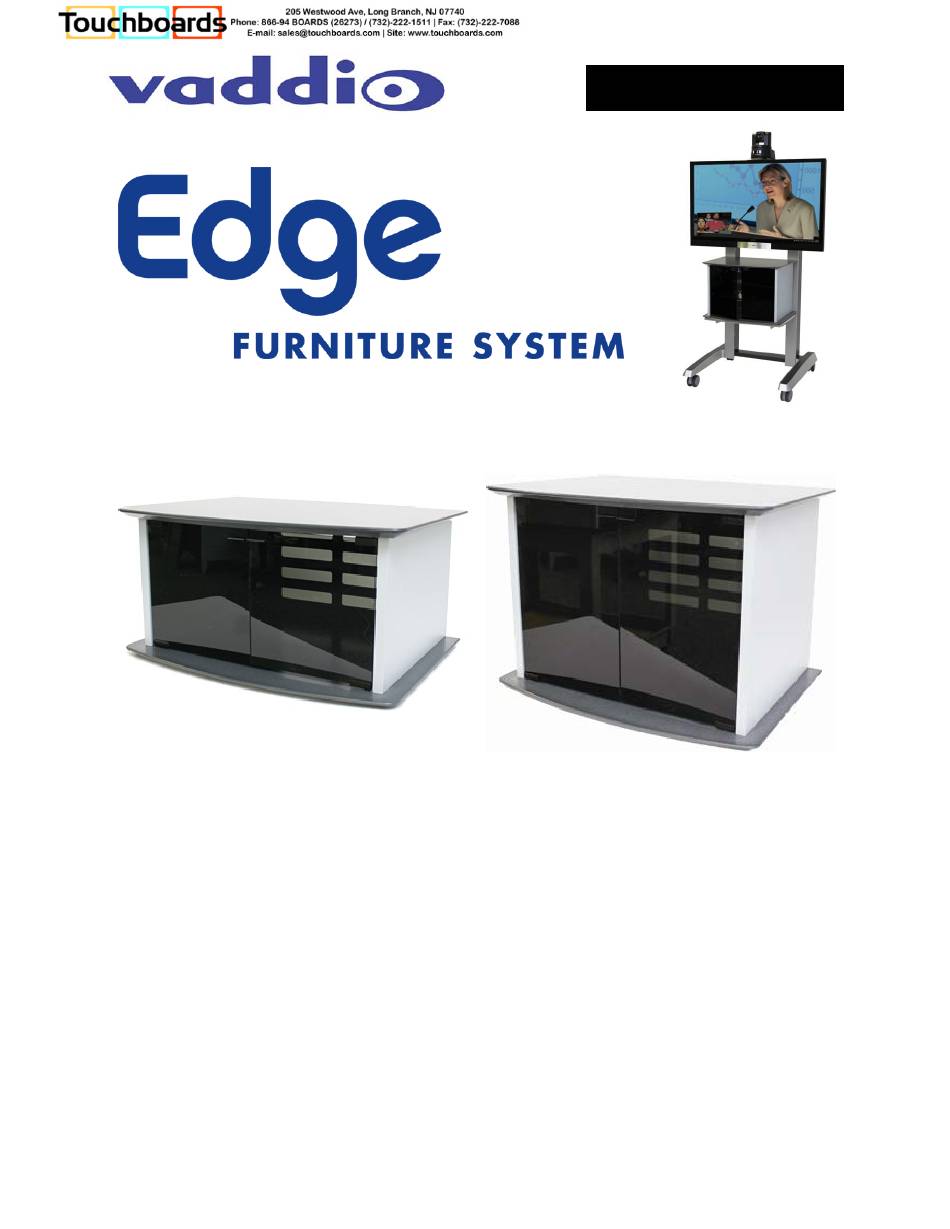

Installation and User Guide
Edge Videoconferencing Furniture for Integrators
Vaddio™ Edge™ Series Equipment Enclosures
Product Description and Part Numbers:
EE-Shelf: Equipment Enclosure with Shelf (PN: 798-0500-000) Assembled
EE-Shelf: Equipment Enclosure with Shelf (PN: 798-0500-001) Flat Packed
EE-6RU: 6-Space Rack Mount Equipment Enclosure (PN: 798-0600-000) Assembled
EE-6RU: 6-Space Rack Mount Equipment Enclosure (PN: 798-0600-001) Flat Packed
EE- 9RU: 9-Space Rack Mount Equipment Enclosure (PN: 798-0900-000) Assembled
EE- 9RU: 9-Space Rack Mount Equipment Enclosure (PN: 798-0900-001) Flat Packed
©2010 Vaddio - All Rights Reserved. Edge Equipment Enclosures - Document Number 342-0026 Rev. A
Advertisement
Summary of Contents for VADDIO Edge EE-Shelf
- Page 1 EE-6RU: 6-Space Rack Mount Equipment Enclosure (PN: 798-0600-001) Flat Packed EE- 9RU: 9-Space Rack Mount Equipment Enclosure (PN: 798-0900-000) Assembled EE- 9RU: 9-Space Rack Mount Equipment Enclosure (PN: 798-0900-001) Flat Packed ©2010 Vaddio - All Rights Reserved. Edge Equipment Enclosures - Document Number 342-0026 Rev. A...
- Page 2 The information contained in this manual will help you assemble and install your system. If these instructions are misplaced, Vaddio keeps copies of Specifications, Installation and User Guides and most pertinent product drawings for the Vaddio product line on the Vaddio website. These documents can be downloaded from www.vaddio.com...
- Page 3 Edge Equipment Enclosures UNPACKING: Bill of Materials Because the Edge enclosures are available in several packages, please review the bill of materials upon receipt to ensure that all the parts are present. Be careful to account for each item to avoid the inadvertent disposal of required parts.
- Page 4 Edge Equipment Enclosures UNPACKING: Bill of Materials (continued) EE- 9RU: 9-Space Rack Mount Equipment Enclosure (PN: 798-0900-000) Assembled EE- 9RU: 9-Space Rack Mount Equipment Enclosure (PN: 798-0900-001) Flat Packed Quantity Part Description Top, powder coated graphite grey nebula Bottom, powder coated graphite grey nebula Sides, powder coated light grey (16.5”...
- Page 5 Edge Equipment Enclosures c. Insert two (2) black bushings from the hinge package into the proper holes at the front of the top as shown. Black Bushing d. Use the two predrilled holes at the front center to locate the magnetic catch. Fasten the magnetic catch with two long Phillips screws from the package to the top as shown in the picture below.
- Page 6 Edge Equipment Enclosures 3) Preparing the Sides and Back for Assembly a. Lay the sides on a flat clean surface with the holes facing up as shown below. Insert the cams into the holes with the arrow facing the top and bottom edge of the side. b.
-
Page 7: Enclosure Assembly
Edge Equipment Enclosures 4) Enclosure Assembly a. Lay the enclosure bottom on a flat, clean surface with the connecting posts up as shown below (a). b. Slide one side onto the connecting post. Make sure the groove in the side matches the groove in the bottom at the back of the bottom shown in (b). - Page 8 Edge Equipment Enclosures 5) Installation of Door Pulls and Hinges a. Hinges: Peel the blue protective film off both sides of the doors. Peel and stick the small strike plate from the hinge package to the top inside corner of the door as shown. The long edge of the door is the height.
- Page 9 Edge Equipment Enclosures 7) Installing the Doors: a. Facing the enclosure, place a hinge in the black plastic bushing as shown below. Hinge in Bushing b. Insert a hinge in the top bushing and hold it here while the door is slid into place as shown. Slide Door into Hinges c.
- Page 10 Edge Equipment Enclosures Once the enclosure is assembled, or if it is purchased assembled, the enclosure is mounted to the Edge Videoconferencing cart using the following steps. 8) Mounting the Edge Enclosure to the Edge Cart: a. Remove the four (4) 10-32 x ¾” screws from the threaded T-nut on the bottom inside of the enclosure.
- Page 11 Vaddio Customer service – Vaddio will test, repair, or replace the product or products without charge if the unit is under warranty and is found to be defective. If the product is out of warranty, Vaddio will test then repair the product or products. The cost of parts and labor charge will be estimated by a technician and confirmed by the customer prior to repair.
- Page 12 Edge Equipment Enclosures . Edge Equipment Enclosures - Document Number 342-0026 Rev. A Page 12 of 12...
