FITTING THE HANDLEBAR

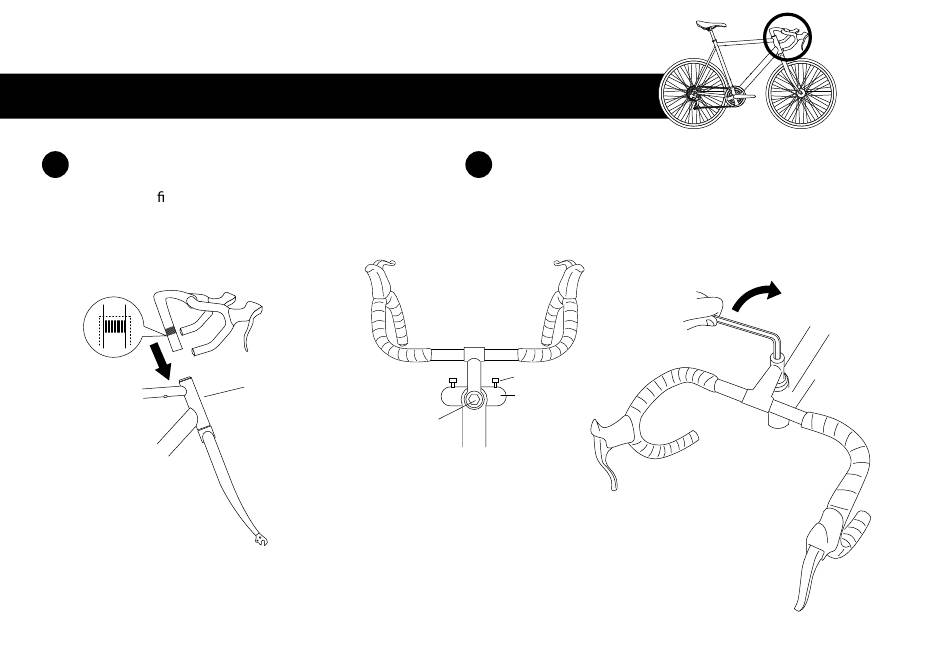

Insert the handlebar into the head tube. Make
A
sure the minimum insertion mark is not visible
once this is tted. The handlebar must be
inserted beyond this point.
MINIMUM
INSERTION
MARK
HANDLEBAR
BIKE FRAME
ALLEN BOLT
The handlebar must be straight. Align this with the fork by
B
looking downwards at it. Use the allen key to tighten the bolt
on top of the handlebar stem. Do not fully tighten until the end
as you may need to adjust the height.
TOP VIEW
Front of bike
BRAKES
FORK
Rear of bike
Rear of bike
Front of bike
