Summary of Contents for Eldes EPGM1

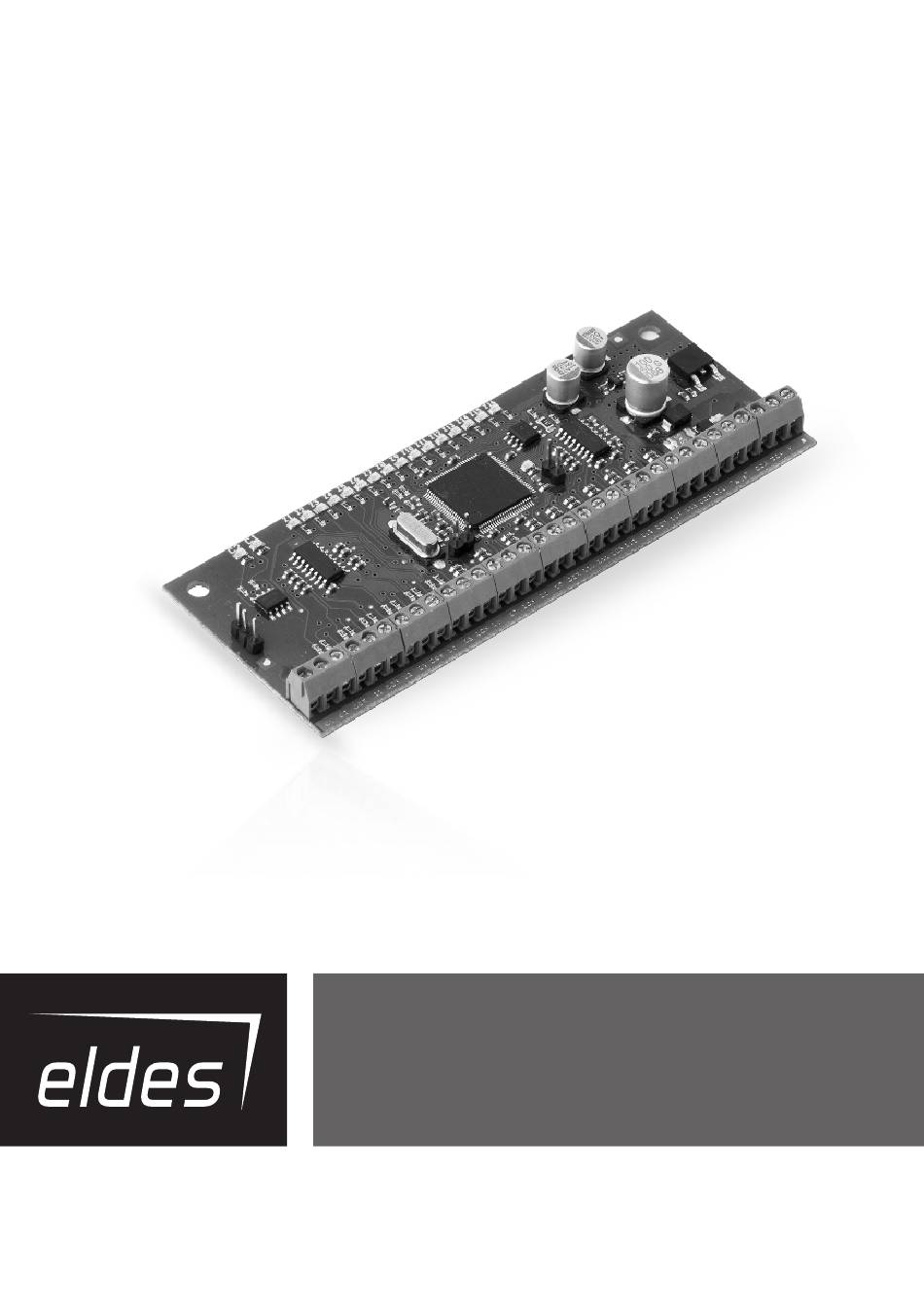

- Page 1 EPGM1 HARDWIRED ZONE & PGM OUTPUT EXPANSION MODULE...
-
Page 2: Technical Specifications
• Hardwired zone expansion adding 16 additional zones per module. • 2 PGM outputs per module for electrical appliance connection. EPGM1 is a hardwired zone and PGM output expansion module intended for using with ELDES alarm systems. ESIM264 system supports 1 EPGM1 module, while ESIM364 - 2 EPGM1 modules. - Page 3 Positive power supply terminal Z1 Z2 Z3 Z4 Z5 Z6 Z7 Z8 Z9 Z10 Z11 Z12 Z13 Z14 Z15 Z16 STATUS - AUX C2 COM DC+ Y STATUS - AUX C2 COM DC+ Y RELAY MODULE ESIM264/ESIM364 User manual EPGM1 v1.5...
-
Page 4: Installation
2.4 EPGM1 Address ESIM364 system allows to connect up to 2 EPGM1 modules - each set under different address. The module address can be set by putting or removing the jumper from the A0 pins implemented in horizontal position (see Fig. No. 1 and 2). Jumper combinations for different EPGM1 module address configuration are indicated in the table below. -
Page 5: Limited Liability
“ELDES UAB” will not take any responsibility regarding personal or property or revenue loss while using the system. “ELDES UAB” liability according to local laws does not exceed value of the purchased system. “ELDES UAB” is not affiliated with any of the Internet providers therefore is not responsible for the quality of Internet service. - Page 6 Made in the European Union www.eldes.lt...
