Summary of Contents for Fava MPG01

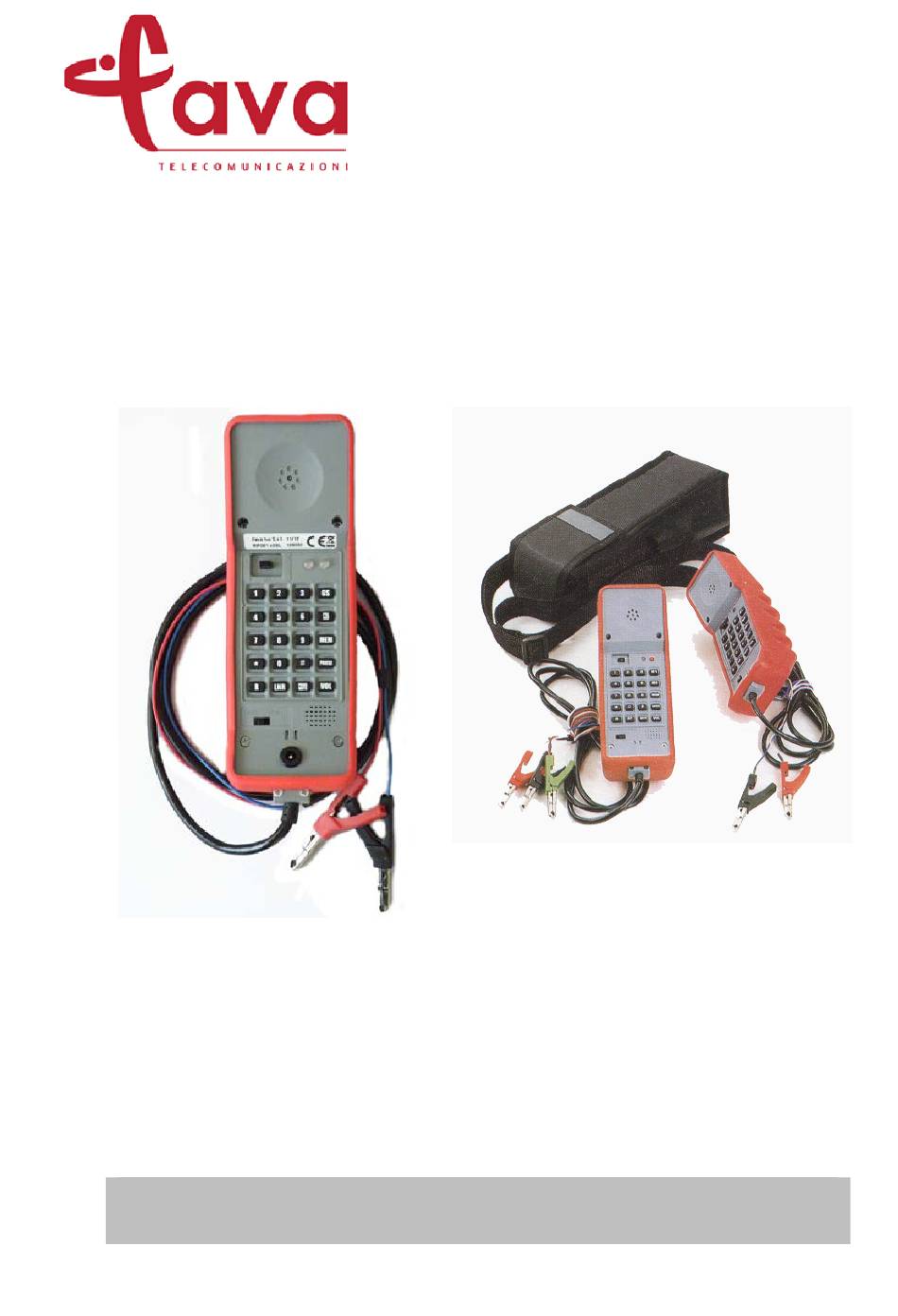

- Page 1 MPG01 MPG01 xDSL Linesman’s test set ’ NSTRUCTION S MANUAL...
- Page 2 This manual provides instructions for the use of MPG01 and MPG01 xDSL. The unique characteristics of MPG01 xDSL model are highlighted in the box with the inscription xDSL.
-
Page 3: Table Of Contents
Index Safety information ................5 Description ..................6 Operation ................... 6 3.1. Switch on and off ................6 3.2. Check tensione in linea ..............7 3.2.1 xDSL: Check tensione in linea ............7 3.3. Polarity check ..................8 3.4. High Impedance Listening (Monitor) ..........8 3.5. - Page 4 Figure 1 – MPG01 – Front view a. Receiver d. Buzzer b. Keyboard e. Battery Charger (xDSL version) c. Microphone Figure 2 – MPG01 – Keyboard a. ON/OFF/Monitor d. Keyboard b. Left LED e. Pulse/DTMF c. Headset jack - optional...
-
Page 5: Safety Information
• If repair work of any kind needs to be done to Fava products, arrange for it to be performed only by the company Fava or by a specialized workshop that is authorized by Fava. In all other cases our warranty and liability for the product shall lapse. -
Page 6: Description
Keep these operating instructions for later use. Description The MPG01 is ideal for installation, maintenance and all aspects of connection to tele-phone lines. The linesman’s test set is housed in a high impact and highly visible colored rubber housing. The housing is designed to give the operator maximum grip. -
Page 7: Check Tensione In Linea
To turn set the switch to OFF.. xDSL: When MPG xDSL goes off-hook generates a tone. If the bat- tery level is low no audio alarm will be generated (see paragraph 3.13). 3.1. Checking talk battery on the line MPG looks for talk battery on line. Follow these steps: If the voltage on the line is above 66V����... -
Page 8: Polarity Check
ADSL filter. 3.3. Polarity check When connected to a line, MPG01 can check polarity by pressing POL. The LED will go red for reversed polarity and green for correct. The MPG is not polarity sensitive therefore correct or inverted con- nection does not affect the instrument’s performance. -
Page 9: Selecting A Number
Press key and continue selection in DTMF. • To switch OFF MPG01 move the switch ot OFF or press the R key. In DTMF mode, the and # keys are active. MPG01 stores the last number dialled in either PULSE or DTMF mode and it can be redialled independently of the original dial mode. -
Page 10: Volume Boost
3.11. Adress book storing MPG01 allows for the memorisation of 10 numbers which can be re- called by the 1 to 0 keys. To insert new numbers in place of old ones simply reprogram the new number: the old one will automatically be cancelled. -
Page 11: Battery Check
• Press programming PROG MUTE key (fig. 2/d) • Press # key and select the correct value (1…0) from follow- ing table • Store by pressing PROG MUTE key. Ringer Volume slow -16 dB slow - 7 dB slow 0 dB medium -16 dB medium... -
Page 12: Xdsl: Battery Recharge
3.14. xDSL: Battery recharge Use network adapters corresponding to the charac- teristics indicated on page 17. For the use of the network adapter refer to its manual. Disconnect MPG and switch it OFF. • Plug the networks adapter plug into MPG. •... -
Page 13: Privacy Alert
5.2 Cleaning Since MPG01 has been designed and built for outdoor use, it re- quires only a minimum amount of maintenance. Use a solution of normal detergent and water to clean the case, belt and front panel. -
Page 14: Replacing Cord And Belt Clip
To replace the 7.4V battery contact the technical support of Fava Ivo Srl (page 18) 5.4 Replacing cord and belt clip MPG01 is supplied with a cord and belt clip which can be replaced by an operator. To replace the cord, follow these directions: •... -
Page 15: Xdsl: Acoustic And Visual Signalling Table
5.5.1 xDSL: Acoustic and visual signalling table Action LED DX LED SX Tone Switch On Single Line Check V >66V Solid Red xDSL signal Solid Green Steady V >110V Red blinking Repeated V=0V Red blinking Polarity Check Direct Green Reverse Monitor Check Green blinking Singolo... - Page 16 Ringer Piezo 3 tones Polarity Bicolored LED green=OK; red=NOTOK Consumption: max. 18 mA@7 V���� OFF >1 MΩ; DC resistance ON <300 Ω @ 50 VDC (bridge 425Ω+425Ω ) Loop current 0 …60 mA MONITOR >120 kΩ nom.@ 1 kHz Resistance Polarity check <8 mA @ 48 V����...
- Page 17 Auto shut off In monitor MPG shut off after 5 min xDSL: after 2 min Protection against overvoltages Transient suppres.400 V Battery back-up Lithium 3V���� CR1220 (memory) 9 V���� 6LR61 (monitor) xDSL: Li-Ion 7,4 V���� - 1400mAh xDSL: Specifications for the recharger connector Output voltage: 8,4V DC nom.
-
Page 18: Versions And Accessories
Hedset NCP J C.NCP.00004 8. Repair Information In Italy FAVA IVO Srl does not recognize any authorized service cen- ter for performing repairs either during or after the warranty period, nor is any center authorized to supply replacement parts. The Cus- tomer Service department at the company provides prompt, compe- tent service. - Page 19 All rights reserved. It is forbidden to reproduce, adapt or translate any part of this manual without the prior approval of FAVA IVO Srl, except where permitted by copyright laws. The information contained in this manual is subject to change without notice. All care has been taken in compiling and checking the docu- mentation contained in this manual however FAVA IVO Srl cannot assume any responsibility arising from the use of the same.
- Page 20 Fava Ivo Srl. Printed by: FAVA IVO S.r.l. Printed in Italy Rev.0 MAN_EN 17124...
