Oceanic OCEALED3219B2 User Manual

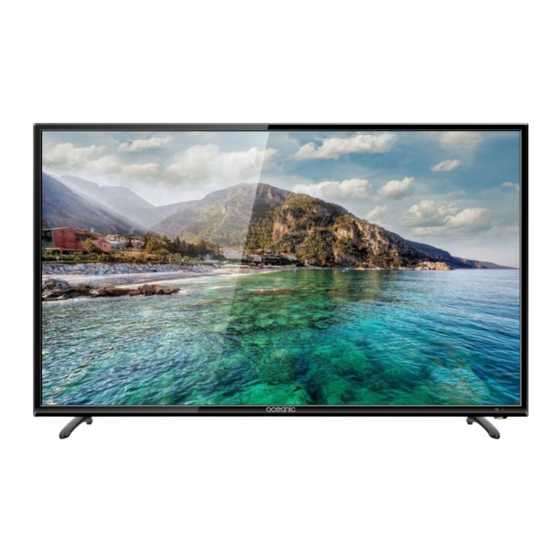

32" hd led tv
Hide thumbs
Table of Contents

Advertisement

Quick Links

32'' HD LED TV
User manual
OCEALED3219B2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OCEALED3219B2 and is the answer not in the manual?

Questions and answers

Related Manuals for Oceanic OCEALED3219B2

Summary of Contents for Oceanic OCEALED3219B2

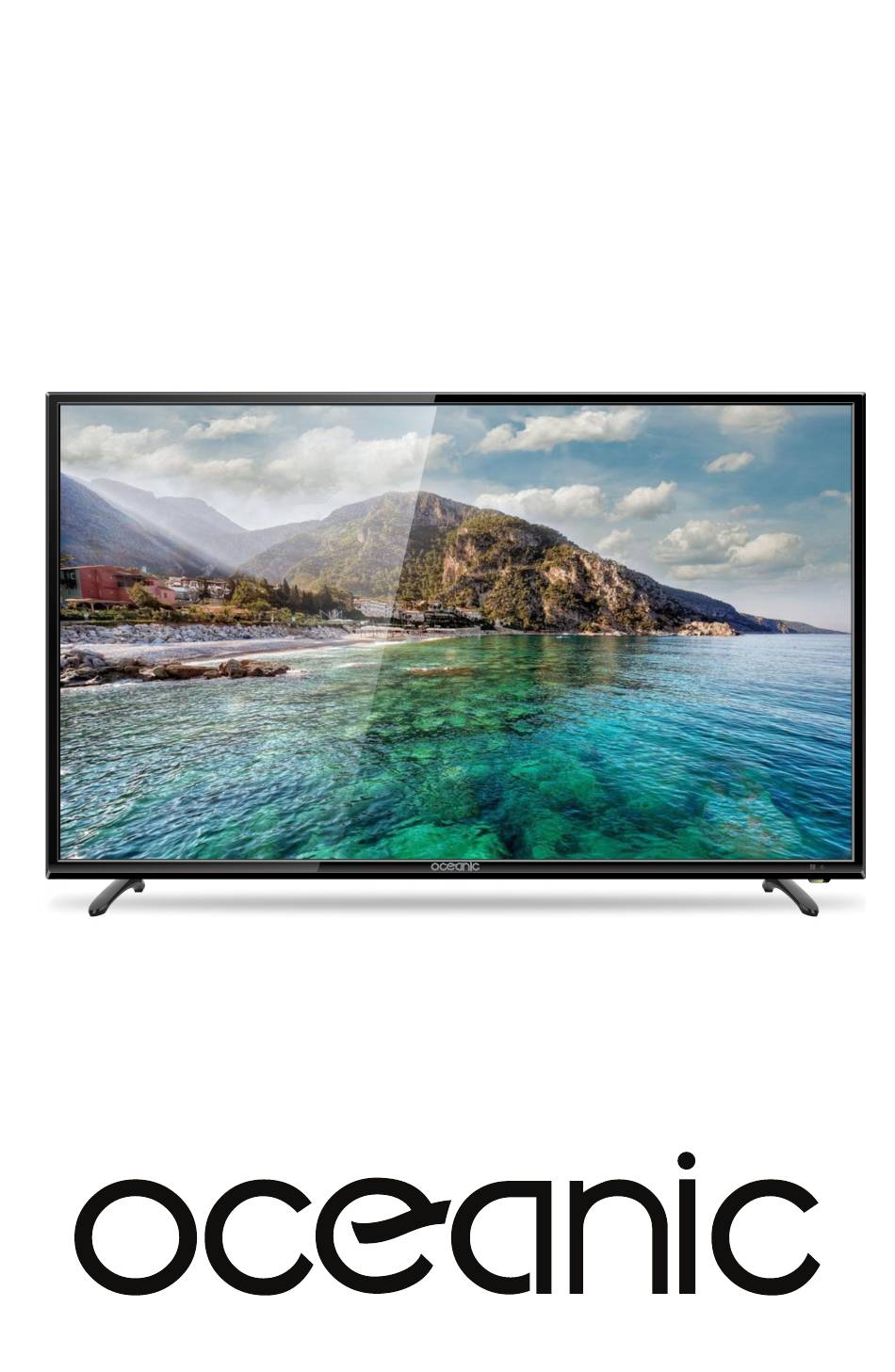

  • Page 1 32’’ HD LED TV User manual OCEALED3219B2...

  • Page 2: Important Safety Instructions And Warnings

    English Important safety instructions and warnings Please read this user guide carefully and thoroughly before installing and using your device. It is important that this user guide is kept with the device for further consultation. If this device isto be transferred to another person, make sure that the user guide is also given with the device sothat the new user can be informed how to operate the device.
  • Page 3 Do not expose the product to high temperatures, moisture, water and dust. - The apparatus shall not be exposed to dripping or splashing. No object lled with liquids, such asvases, shall be placed on the apparatus. - Do not place other items close to this product that may damage it (for example, objects containing water or lightened candles).
  • Page 4 Information about the meaning of the conformity marking The CE marking indicates that the product meets the main requirements of the European Directives 2014/35/EU (Low Voltage), 2014/30/EU (Electromagnetic Compatibility), 2011/65/EU (Restriction of the use of certain hazardous substances in electronic equipment), 2014/53/EU (Radio equipment). Technical Speci...
  • Page 5 Safety...

  • Page 7: Table Of Contents

    Table Of Contents Important safety instructions and warnings Page 1 I - Control Panel Page 7 II - Base Installation Guide Page 8 III - Wall Mounting instructions Page 9 IV - Connecting Cables Page 10 V- Remote Control Page 11 VI - Antenna Connections Page 13 VII - Watching Television Programs...

  • Page 8: I - Control Panel

    I - Control Panel The command buttons are at the back of the TV. Introduction for Each Key Turn the TV on or enter into standby mode. Enter/exit the main menu. Signal source selection button. Channel upwards short cut key; skip to next channel no. and select the next option in the menu Channel downwards short cut key;...

  • Page 9: Base Installation Guide

    II - Base Installation Guide The Way Of Installing Base: Mounting of the stand 1.P lace the machine  at on a desktop (Caution: put a foam cushion under the machine to avoid it from scratching.) 2.A lign the screw holes on stand and TV bottom (Figure 2) 3.F ix the stand and the screen with 4 screws (Figure 3) 4.T he rendering after installed.

  • Page 10: Wall Mounting Instructions

    III - Wall Mounting instructions Vesa size:200*100mm ● Use standard M6*10mm screws (4 pieces, not included) to mount this TV. Using different screws as speci ed will damage the wall mounting support and will be outside the scope of product guarantee. ●...

  • Page 11: Connecting Cables

    IV - Connecting Cables Headphones Computer CI SLOT EARPHONE VGA IN RF IN COAXIAL HDMI IN HDMI IN HDMI IN YPbPr IN AV IN 100-240V~ 50/60Hz 1. AC IN 2. EARPHONE OUTPUT 3.SCART INPUT 4.PC AUDIO IN : PC audio input. 5.VGA IN : connect with the D-sub 15 pin signal cable to your computer.

  • Page 12: V- Remote Control

    V - Remote Control Switches the set between ON and STANDBY. STANDBY Switches the sound on or off. MUTE Figures 0-9 are used to directly input channel number. STANDBY Returns to the channel selected last time. RECALL Press to show the channel list programme. CH.LIST Increase / decrease the sound level.
  • Page 13 Battery Replacement Insert two AAA size batteries making sure to match the positive and negative icons of Open the battery cover the battery with the on the remote control. battery compartment. *Please take out the batteries and place in a shady, cool and dry place if you will not use the remote control for long time.

  • Page 14: Antenna Connections

    VI - Antenna Connections antenna antenna Power -saving & protection mode 1.In video or PC state, the television will enter into lower power sleep state (standby state) to conduct power saving and protection after several minutes with no signal inputs.

  • Page 15: Watching Television Programs

    VII - Watching Television Programs STANDBY SOURCE Input SCART YPBPR HDMI 1 HDMI 2 HDMI 3 Media 2.If you want to select program number Input the channel number from 10-10+: you desired, e.g. select channel 12. 3.If you want to select program number Input the channel number from 100-100+: you desired, e.g.
  • Page 16 INFO INFO...

  • Page 17: First Time Installation

    VIII - First Time Installation The  rst time you switch on the TV, you will be prompted to search channels. First, you will be prompted to choose the type of screen brightness. You may choose the "Home Mode" option for default setting. You may change the brightness value later on inside the settings menu. Auto Installation Auto Installation - Setup 1 -...

  • Page 18: A - Picture

    A - Picture Picture Picture Picture Mode Standard Noise Reduction Middle Brightness Picture Picture Contrast Sharpness Sound Sound Colour Channel Channel Tint Colour Temperature Standard Feature Feature Aspect Ratio 16:9 Setup Setup Move Enter Exit Exit Menu Return Move Enter Exit Exit Menu...

  • Page 19: B - Sound

    B - Sound Sound Sound Mode Standard Bass Picture Treble Balance Sound Surround Channel SPDIF Feature Setup Move Enter Exit Return Exit Menu Sound Mode Available options: Standard, Movie, Music, Speech, User. Bass This item is used to adjust the level of lower-pitched sounds from 0-100. Treble This item is used to adjust the level of higher-pitched sounds from 0-100.

  • Page 20: C - Channel

    C - Channel "Channel" menu. "Channel" menu setting, use " " to move the menu Channel Channel Management Enter Country France Picture TV Connection Auto Search Enter Sound DTV Manual Search Enter Channel ATV Manual Search Enter Feature Setup Move Enter Exit Return...
  • Page 21 Country This item is used to choose the country. Channel - Auto Search Enter Enter Picture Enter Sound Channel Feature Setup Move Enter Exit Return Exit Menu All Mode: Select “All” item to scan all digital channels carried by current signal mode rstly and then switch to scan all analog channels in selected country automatically.
  • Page 22 Auto search mode for all channels displays as following: Channel Tuning ATV channels found: DTV channels found: Picture Radio channels found: Sound Channel 306.98MHz Feature Process: Setup Skip Quit Menu Exit p /q Channel / ATV Manual Search Current Channel Frequency 48.24MHz Picture...

  • Page 23: D - Feature

    D - Feature "Feature" menu. "Feature" menu setting, use " " to move the menu Feature Lock Enter Language Enter Picture Clock Enter Sleep Timer Sound Auto Power Off 4 Hours Channel Hearing Impaired CI Info Enter Feature PVR/Timeshift Enter Setup Move Enter...
  • Page 24 Available options are: OSD Language, Preferred Subtitle, Preferred Audio, DTV Teletext Language, ATV Teletext Language. You can choose your preferred menu language, subtitle, audio and teletext language. Feature / Language OSD Language English Preferred Subtitle French Picture Preferred Audio French DTV Teletext Language French Sound...

  • Page 25: E - Setup

    E - Setup "Setup" menu. "Setup" menu setting, use " " to move the menu Setup OSD Timer 15 Seconds Auto SCART Picture PC Setup Enter Blue Screen Sound Home Mode Home mode Channel Reset TV Setting Enter Software Upgrade Enter Feature Setup...

  • Page 26: F - Dvb-T

    F - DVB-T INFO 0015 NT1 576i Subtitle 07:28...
  • Page 27 Channel "Channel" menu. "Channel" menu setting, use " " to move the menu Channel Channel Management Enter Country France Picture Auto Search Enter DTV Manual Search Enter Sound ATV Manual Search Enter Channel Feature Setup Move Enter Exit Exit Menu Return Channel / DTVManual Search Channel...
  • Page 28 Feature "Feature" menu. "Feature" menu setting, use " " to move the menu Feature Lock Enter Language Enter Picture Clock Enter Sleep Timer Sound Auto Power Off 4 Hours Channel Hearing Impaired CI Info Enter Feature REC/Timeshift Enter Setup Move Enter Exit Return...
  • Page 29 Recording Function With this product you can easily record your favorite programs on your USB stick. This unit has two recording modes: immediate recording and scheduled recording (for use in case of absence). Preparation for the rst recording When using a USB stick with this unit for the rst time, you should rst format it using this unit. Formattingyour USB stick directly on the receiver improves compatibility of the device with the unit.
  • Page 30 If your device speed is not enough, there will be a dialog as follows: Message Device speed not enough, RECORD anyway? Cancel You'd better change a high speed device or select "OK" to continue. Select "OK" to start recording. You'll see the dialog: Message Initializing Recorder...
  • Page 31 Press Green button to delete all timers, the menu will appear as follows: Message Delete all timers? Cancel Return back to the previous menu if you select "Cancel" and press OK button. Select "OK" and press OK button to delete all timers. Press▲/▼...
  • Page 32 - The loading time of the USB device is too long: When you insert a USB support, the loading time can sometimes be a minute or more. This depends on the size of your support, the number of  les on it and above all, the complexity of its directories. You can reduce loading time by avoiding the use of multiple sub- directories in your USB disk.
  • Page 33 Program List CH.LIST Channel List FRANCE 2 FRANCE 3 Move Enter p /q Subtitle DTV Subtitle Move t /u p /q Multi-Audio Right English Dutch Move t /u p /q...

  • Page 34: G - Pc

    G - PC Setup OSD Timer 15 Seconds Auto SCART Picture PC Setup Enter Blue Screen Sound Home Mode Home mode Channel Reset TV Setting Enter Software Upgrade Enter Feature Setup Move Enter Exit Return Exit Menu Setup-PC Setup Auto Adjust Enter H Position Picture...

  • Page 35: H -Media Player

    H -Media Player Connecting a USB device 1) Power-on the unit. 2)Insert a USB key inside the connector. 3)Press SOURCE to select the input mode (USB). Remark: Depending on the capacity of the device, the reading can take more than 1 minute before lauching the video.
  • Page 36 Press "PLAY" key to start playback. : Same as "PLAY" key on remote, to start playing pictures in slide show mode : Same as "PAUSE" key on remote, to pause the playing  le : Same as "STOP" key on remote, to stop sliding show, and return to the  le browser : Same as "...
  • Page 37 : To switch the window between “Information” and “Play List”. : Same as “BLUE” key on remote, to close the panel only in “MUSIC” mode, and then it can be opened by every key on remote. 9) EXIT: To close the  le and return to the  le browser. Movie Manager Highlight the "Movie"...
  • Page 38 e-Book Manager Highlight the "e-Book" item in multimedia main menu by press "t /u " key, then press "OK" key enter e-Book page, as follow: e-Book Key Operation 1) RED: Delete the focused folder/ le. 2) GREEN: Add/Del all e-Book  les to play list. 3) OK: Add/Del highlight ...

  • Page 39: Important Notice

    (White or Black) (Color Pixels) 1366*768 Technical Data Sheet Sheet of houeshold television according to EU directive 1062/2010 Trade mark OCEANIC OCEALED3219B2 Model no. Energy ef cency Class Visible Screen Diagonal 80cm / 32 inches On mode Power consumption 34 W...
  • Page 40 OCEANIC OCEALED3219B2...

  • Page 41: Troubleshooting

    X - Troubleshooting Solutions: 5 seconds Solutions: positioning Solutions: positioning Solutions: Solutions: Note: To properly watch CANAL + using this product, carry out DVB-T channel search when CANAL + is unsarambled. Form 12:30 p.m. to 1:30 p.m. From 7:00 p.m.to 8:30 p.m. For any other problem that may occur on your device, please contact Customer Service.

  • Page 42: Warranty

    (5) Any use of accessories that are not supplied or approved by the manufacturer. The guarantee will be cancelled if the nameplate and / or serial number of the product are removed. Oceanic – 120-126 Quai de Bacalan – CS 11584 – 33000 Bordeaux Imported by SCHNEIDER CONSUMER GROUP...
  • Page 43 www.oceanic.eu...
