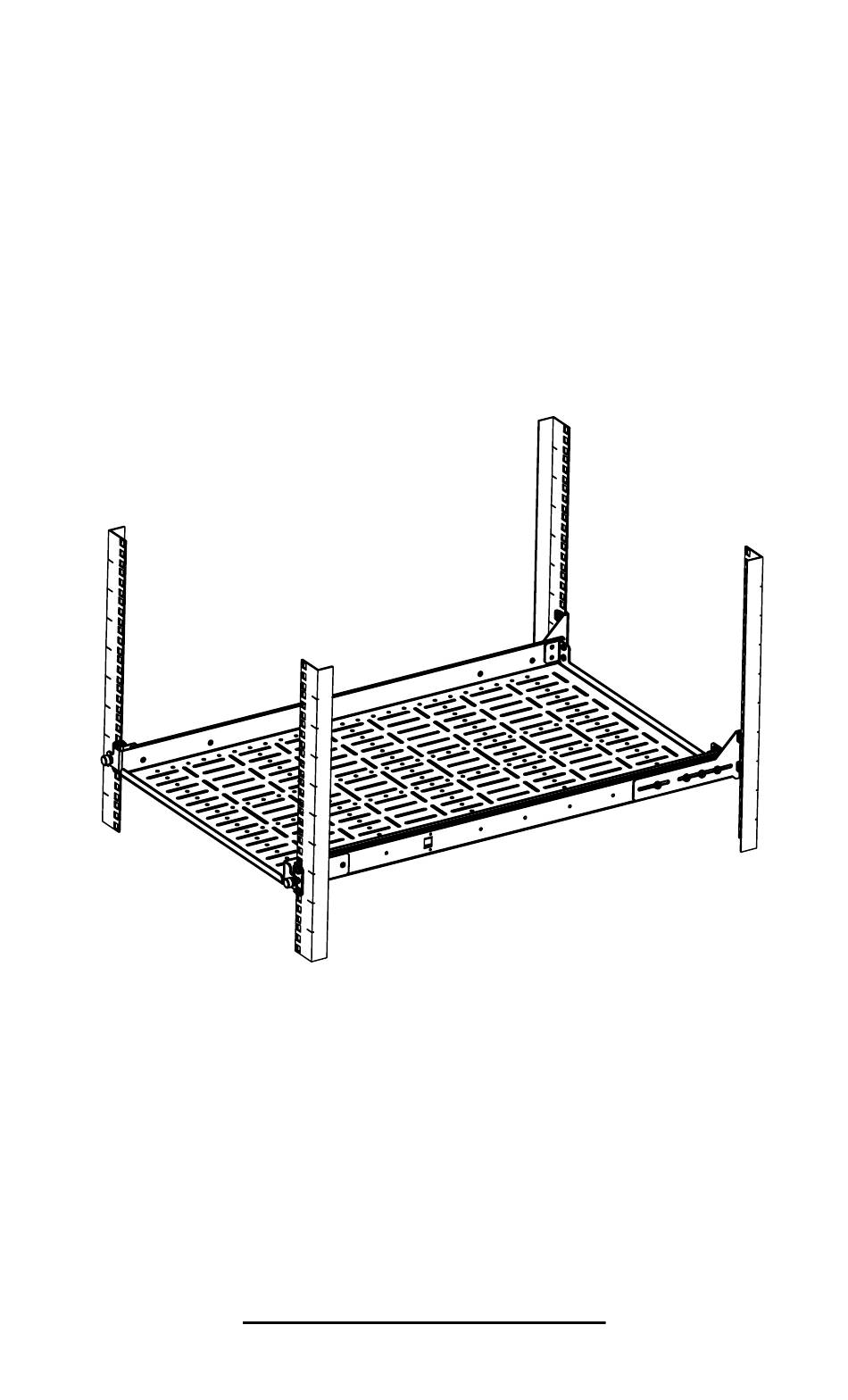

- Page 1 Modular Shelf Installation Instructions Kit P/N: 115-6933...
-
Page 2: Installation Instructions
Kit Contents Kit Contents: Mounting Hardware: (1) Modular Shelf (9) 10-32 x .500 Pan Head Screw (2) Ball Bearing Slides (Left & Right) (9) 12-24 x .500 Pan Head Screw (2) Rear Rail Brackets (Left & Right) (9) 12-24 x Square Nut (1) Cable Managment Attachment (9) 12-24 x Cage Nut Assembly Hardware:... - Page 3 4Post Installation Instructions Step 3 Attach the Rails to the Rack: Attach the Front and Rear of the rails to the 4Post rack as shown below using supplied (4) 12-24 Pan Head Screws and (4) 12-24 Cage Nuts on each side. Repeat for the other side. 12-24 Pan Head Screw 12-24 Cage Nut Front Rack Attachment...
- Page 4 Innovation First, Inc. warrants our products against defects in material and workmanship for a period of one (1) year from the date of purchase. Innovation First, Inc. liability shall be limited to repairing or replacing, at our option, any defective product.
