Technical Parameters
● Working temperature：-20-60
● Supply voltage: DC12V
● Output: 9 channels
● Connecting mode： common anode
● External dimension：L70 × W45 × H30mm
● Packing dimension：L94 × W64 × H62mm
● Net weight: 77 g
● Max output current: 9*0.5 A
Direction for use
1. Connect the load wires at first, following by the power wires; Please ensure that short
circuit can not occur between connecting wires before you turn on the power
2. In order to receive the infrared control signal normally, it is necessary to ensure that
there is no barrier between the remote control and infrared detector.

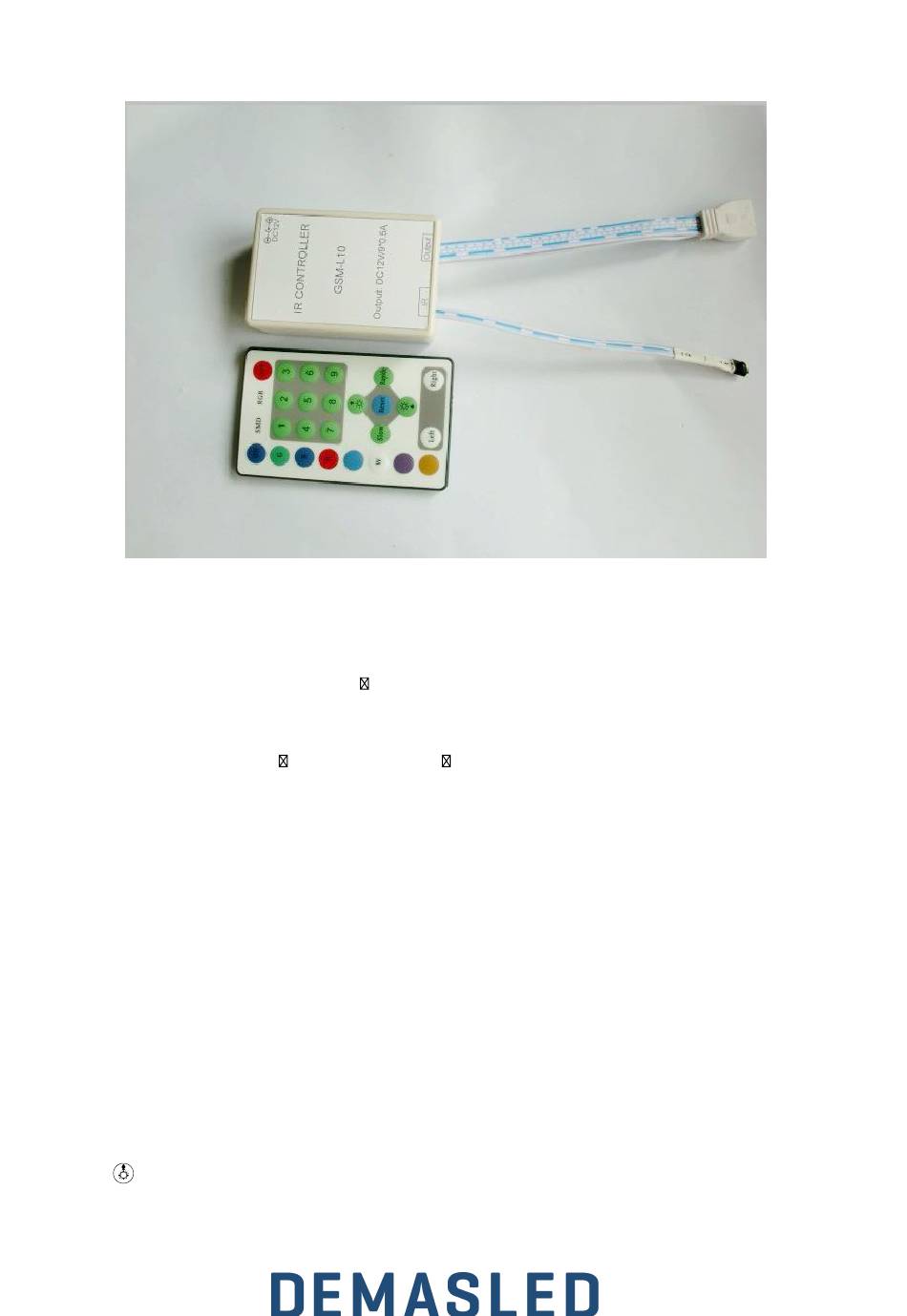

3. The key-press functions are shown below:
Number 1 to 9: program choosing button; corresponding to program 1 to program 9
Rapide: speed change button, up direction
Slow: speed change button, down direction
: brightness change button, up direction
USER MANUAL
common cathode
● Gross weight: 115g
● Max output power: 54W
Advertisement
Table of Contents
Summary of Contents for Demasled GSM-L10
- Page 1 USER MANUAL Technical Parameters ● Working temperature：-20-60 ● Supply voltage: DC12V ● Output: 9 channels ● Connecting mode： common anode common cathode ● External dimension：L70 × W45 × H30mm ● Packing dimension：L94 × W64 × H62mm ● Net weight: 77 g ●...
- Page 2 : brightness change button, down direction Reset: the program back to the program 1; low speed, red color, the highest brightness ON: open the output OFF: close the output Left: move to the left Right: move to the right 4. Under the program 1, 2, 3, 4, 5, users can use 7 color buttons: green, blue, red, cyan, white, purple, yellow on the left side of IR remote panel;...
- Page 3 Interface conncetion OUTPUT PORT INPUT PORT...
