Summary of Contents for Rapid Closet Solutions 110

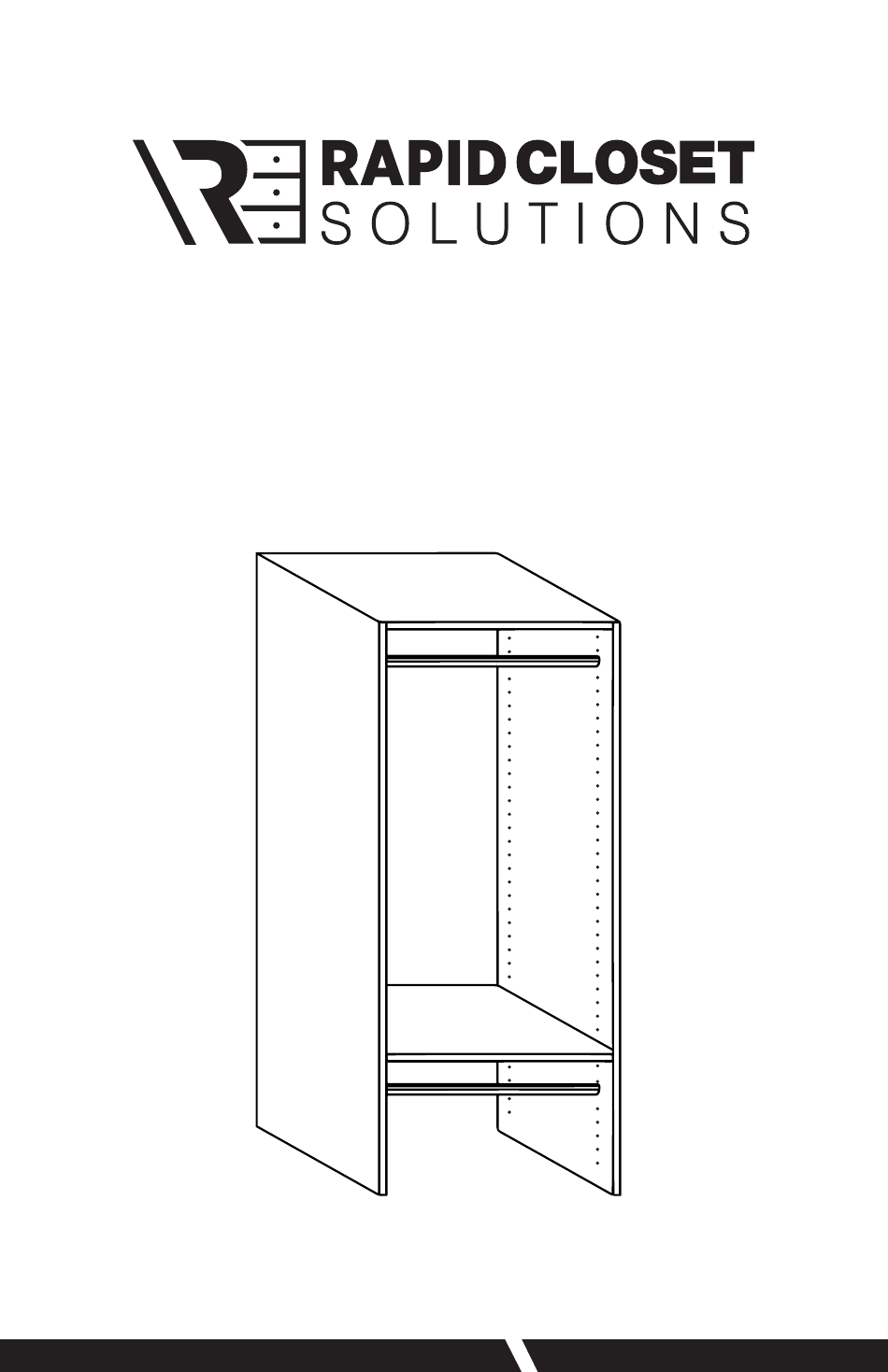

- Page 1 110 RapidCloset Wall Hung Closets Hanging Double ASSEMBLY AND INSTALLATION GUIDE www.rapidcloset.com...
-
Page 2: Assembly And Installation Instructions
ASSEMBLY AND INSTALLATION INSTRUCTIONS DOUBLE HANGING UNIT - 18" / 24" / 30" / 32"/ 36" / 42" PARTS LIST Left Side Panel (Qty1) Bracket&Cover (Qty2+2) Connector (Qty 8) Right Side Panel (Qty1) Set Shelf (Qty 2) Outrigger (Qty 8) Rail&Cover (Qty1+1) Screw (Qty 4) Hanging Rod (Qty 2) -
Page 3: Important Notes
2.1 Install one Connector (H) into each of the eight holes on Left Side Panel (A) and Right Side Panel (B). Tighten until Connectors are seated against Side Panels. 2.2 Install one Bracket (G) into each of the two holes on Left Side Panel (A) and Right Side Panel (B). - Page 4 3.1 Install Left Side Panel (A) onto assembled Set Shelves (C). BE SURE dowel pins in Shelves engage drilled holes in Left Side Panel, and Left Side Panel is pressed flush against Set Shelves. Insert Outriggers(I) in holes in Set Shelves (C), with arrow pointing toward Outrigger opening.
- Page 5 7.1 Hang the unit over Bracket (D) and Cover (D).
- Page 6 8.1 Position upper Oval Rod Support (F) on Left Side Panel (A) and secure each Bracket with two screws (J). Repeat for lower Oval Rod Support (F). 8.2 Adjust the Cover over Bracket (D).
- Page 7 Use care when installing Hanging Rods (E) to avoid scratching finish inside unit. Insert one end of upper Hanging Rod (E) into "U" Bracket (F). Slide assembled Hanging Rod (E) and Oval Rod Support (F) into unit. Rest free end of Hanging Rod in Oval Rod Support. Secure Oval Rod Support (F) to Right Side Panel (B) with two Screws (J).
- Page 8 “RapidCloset Highlights” EASY TO ASSEMBLE QUICK SHIP Our assembly is easy as can be. We make sure to keep all our All you need is a screwdriver merchandise in-stock & ready and some time to assemble the to go for you, so that your order RapidCloset Modules.
