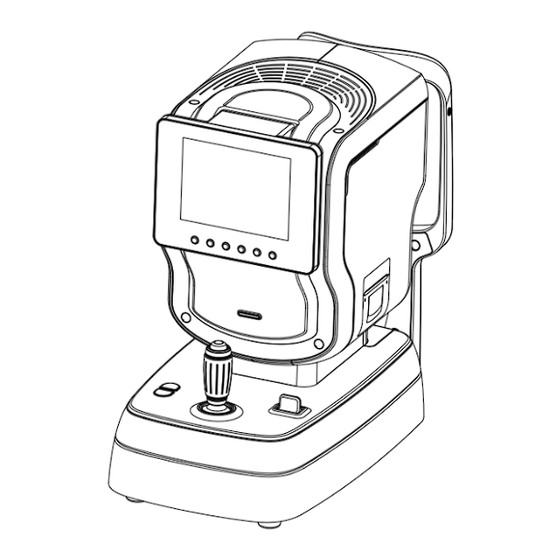

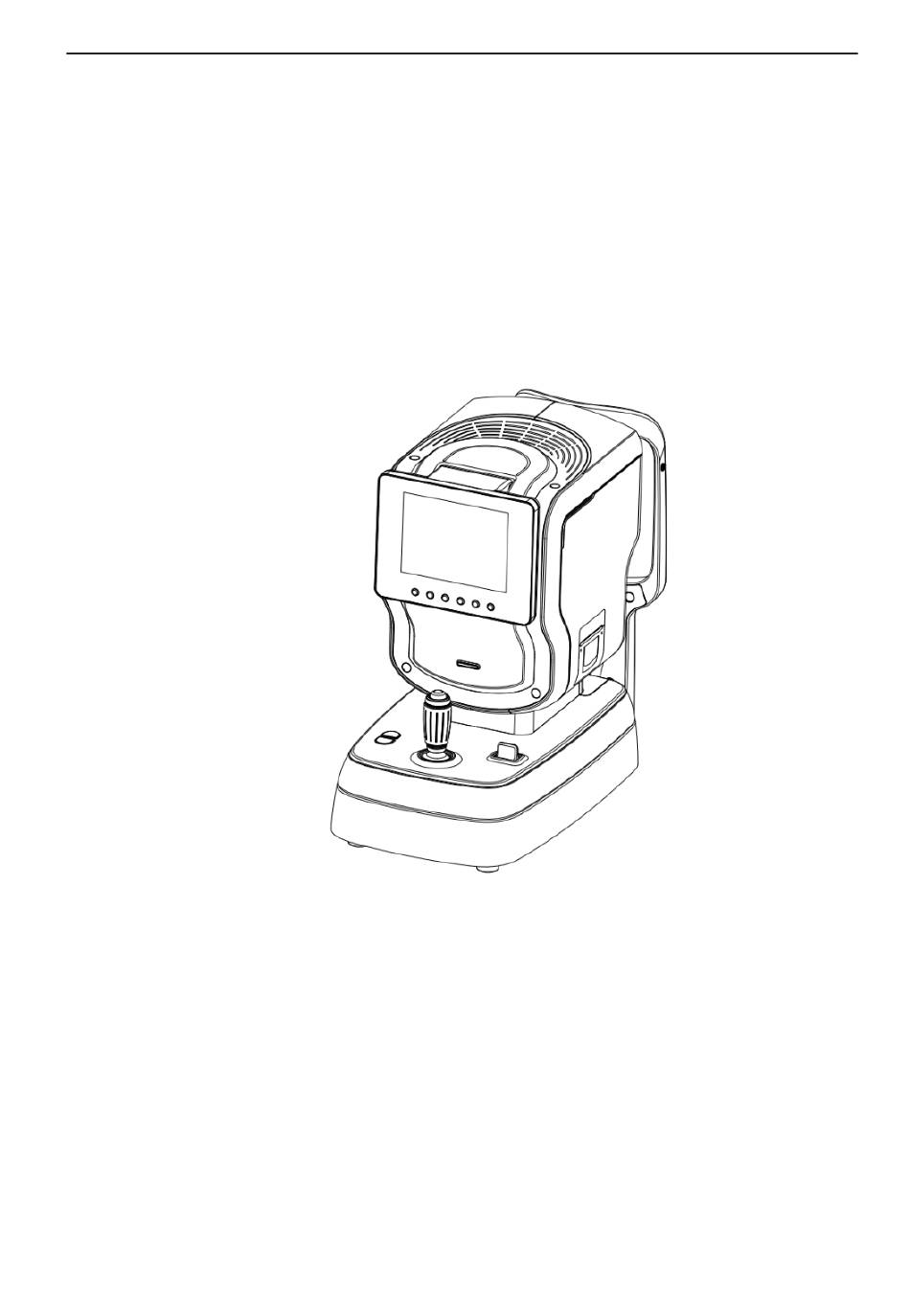

  • Page 1 RMK-700 AUTO REFRACTOMETER REV.20161109...

  • Page 2: Introductions

    Spherical, Cylindrical, Axis, PD and Corneal Radius of Curvature . Main Features 1、 More accurate Measurement. The RMK-700 foggy method of the eye fixation target(15mm*15mm) locked inside makes examinee's eye more comfortable and measurement data more accurate. 2、 Classification...

  • Page 3: Safety Symbol And Instructions

    It may damage the instrument. 8、 When moving the RMK-700, Fix the stage by using stage holding knob and clamping bolt, disconnect the power cable, and then lift the bottom of the unit with both hands.

  • Page 4: Using Attention

    Machine base lock is below part of pedestal Frame Lock Dismounting Matters need attention Check the items in the package box Should include articles as followings: RMK-700 Refractometer · RMK-700 User Manual · Refer to packing list for Others...

  • Page 5: Table Of Contents

    RMK-700 Operating Manual Index Introductions ....................1 Main Features ..................... 1 Safety Symbol and Instructions ..............2 Working environtion ................... 2 Using Attention ................... 3 Dismounting Matters Need Attention ............3 Introduction of instrument ............... 5 Host Machine ................5 Operation Panel ..............

  • Page 6: Introduction Of Instrument

    RMK-700 Operating Manual 1. Introduction of Instrument 1.1 Host Machine Name Function (1)LCD Display Monitor that displays Measurement. (2) User Key There are various function keys Press this button manual (3) Measurement button measurement (4) Chin Rest For regulating height of chin rest...
  • Page 7 RMK-700 Operating Manual (10) (11) Name Function Place the examinee's forehead against (8) Head Rest this rest (9)Measurement Window for the examinee to look at for window measurement (10) Chin Rest Place the examinee's chin on the rest (11) Power Switch...
  • Page 8 RMK-700 Operating Manual (14) (12) (13) Name Function (12)USB Port Upgrading the instrument Executing Online function with external (13)RS-232 Port devices (14) Power Supply Socket Connecting the power cord...

  • Page 9: Operation Panel

    RMK-700 Operating Manual 1.2 Operation Panel Name Function MODE Change the measurement mode A switch to indicate the measured results DISP on the monitor A switch to begin to perform the AUTO measurement manually or To change the VD(Vertex Distance) VERTEX DISTANCE value.

  • Page 10: Intallation

    2. Instrument Using 2.1 Installation Installation location In your workplace, install the RMK-700 Refractometer in a flat place without direct sunlight and adjust it to appropriate height. The operating environment temperature is between + 5 ° C and + 40 ° C and the relative humidity is between 30% and 75%.

  • Page 11: Measurment

    RMK-700 Operating Manual properly, which indicates that the instrument can be measured normally. 2.3 Measurement Measure the Model eye before measuring the patient Measurement Procedure (1) Turn ON the power (2) Set the model eye on Remove the model eye and align the holes of the model eye with the the chin rest, and insert pins.

  • Page 12: Operation Method

    RMK-700 Operating Manual failed with message like TRY AGAIN on the top left corner of the screen, press the button again; Automatic measurement: Push AUTO button at the bottom of monitor. ● 2.4 Operation method DIOPTER\REF mode In the REF Mode, Diopter measurement is performed only.
  • Page 13 RMK-700 Operating Manual focusing alignment mark“十”is displayed clearly on the bright point Measurement Press the Measurement button ● ● The newest measured result will be displayed on the monitor. (5) Repeated measurement Measurement could be repeatedly performed if necessary(there is error ●...
  • Page 14 RMK-700 Operating Manual Data was out of valid measuring range. Impossible to measure Keratometry (KER Mode) Only the radius of curvature of the cornea can be measured in KER Mode. (1) Enter the KER Mode Press the MODE button until "KER" is displayed in the top of the display.
  • Page 15 RMK-700 Operating Manual K&RMode Diverse Indications Meaning of Kind Name Measures Signs Indicati Measured ng low Measure value of low reliabilit again reliability Exceed SPH exceeds measur +15 m able Measure range ment of Exceed Refractio SPHexceeds Impossible - OUT measur –15 m...
  • Page 16 RMK-700 Operating Manual Indicati Measured ng low Measure value of low reliabilit again reliability Exceed Radius of Measure curvature ment of measur exceeds Curvatur able 9.4mm range Impossible to measure Exceed Radius of curvature - OUT measur is less than able 6.5mm...
  • Page 17 RMK-700 Operating Manual Press the Measurement button, as you keep pushing the measurement button, the measurement is to be performed consecutively. The newest measured result will be displayed on the monitor. ● (6) Repeated measurement Measurement could be repeatedly performed if necessary；...
  • Page 18 RMK-700 Operating Manual Adjust the height of the chin by rotating the height adjustment knob so ● that the eye of the examinee is aligned with the height adjustment mark on the headrest. (3) Perform Focusing Slide the operation joystick to the left so that the right eye of the ●...
  • Page 19 RMK-700 Operating Manual as you need. Repeat the procedure of 2~4 as performing the measurement again； No matter When you measure, the newest date can be appeared on the ● screen. Measurement of the other eye ● Measure the other eye in the same way while holding the operation ●...

  • Page 20: Maintenance

    RMK-700 Operating Manual 3. Maintenance 3.1 Daily Maintenance （1）Don’t put machine under sunshine； （2）Don’t put heavy part on machine, which will damage to machine； （3）To keep clean both machine and air around； （4）To keep machine clean. Don’t use the organic solution like volatile liquid, diluent or benzol to machine；...

  • Page 21: Instrument Of Moving Matters Need Attention

    If the problem is not solved in spite of the settlement according to the contents of chapter Four, please contact agent with the information on the following items. Name of Equipment Type： RMK-700 ● Typical No. of Equipment : Typical number consisted of 8 digits and ●...

  • Page 22: Packing , Shipping And Storing

    RMK-700 Operating Manual 4.1 As the power switch is on Message Cause Method of settlement Re-input the power in 10 Motor Error Internal seconds after switching EEPROM Error abnormality it off. In case that the EEPROM Data Error message indicated...

  • Page 23: Message As Printing

    RMK-700 Operating Manual 4.3 Message as printing Message Cause Method of settlement CHECK -There is no printer paper Install printer paper or PAPER or lever is not closed. close the lever. 5. Performance Parameter 5.1 Refractometer Vertex Distance (VD) 0.0 mm，12.00 mm，13.5 mm，15.00mm Sphere Power (SPH) -20.00m-1 ~ +20.00m-1...

  • Page 24: Packing List

    RMK-700 Operating Manual M o n i t o r T FT L C D C o l or M o n i t o r o f 6 . 4” Powe r suppl y AC220V, 50Hz Powe r c onsumpt i on...
