INSTALLATION INSTRUCTIONS

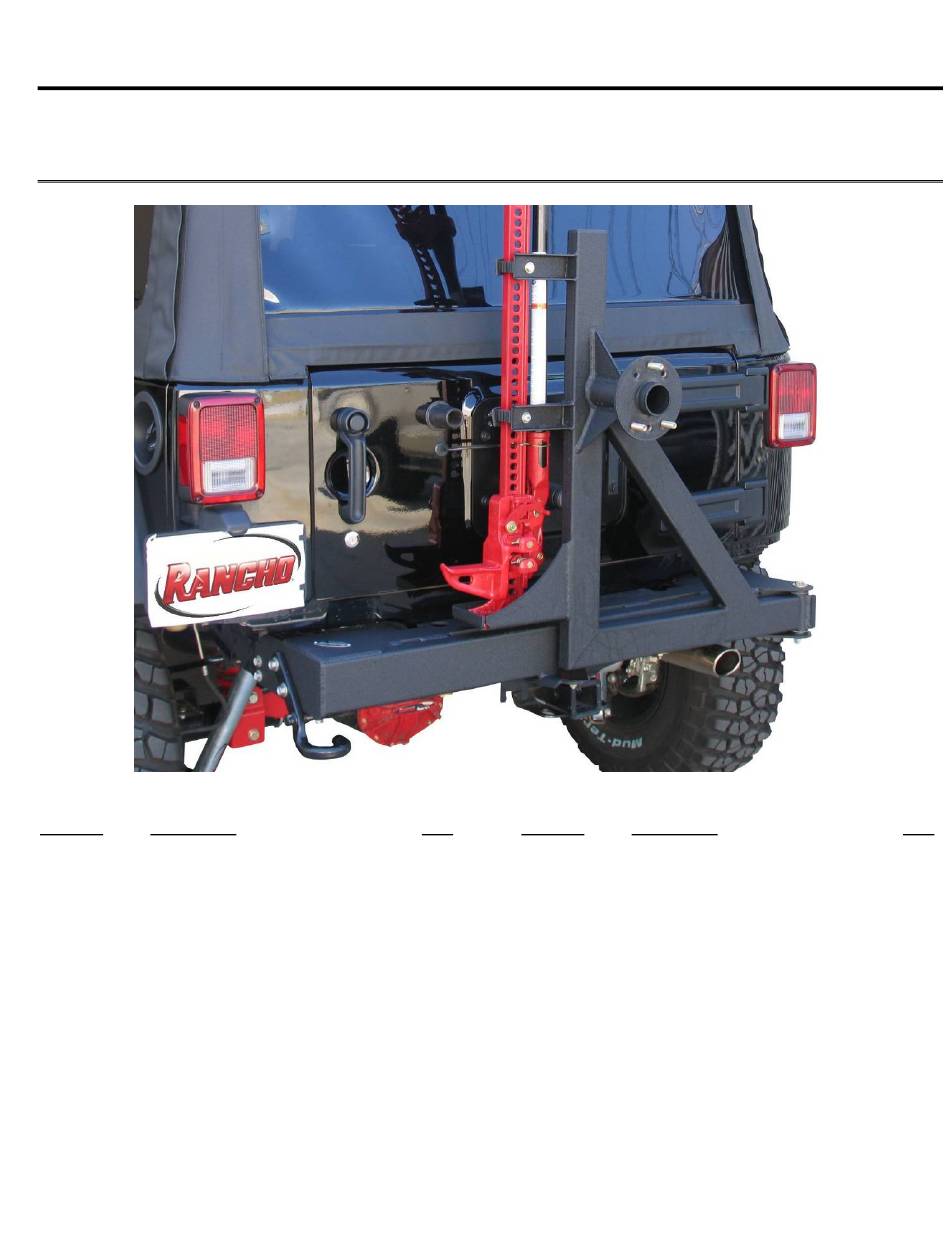

RANCHO REAR BUMPER / TIRE CARRIER KIT RS6235B
READ ALL INSTRUCTIONS THOROUGHLY FROM START TO FINISH BEFORE BEGINNING INSTALLATION
Part No.
Description
Box 1 of 2
176663B
Rear Bumper
860662
Hardware Kit
420069
Crush Sleeve, long
420070
Crush Sleeve, short
M12-1.75 x 100 HHCS
M12-1.75 Stover Nut
M12 Washer
D Washer
88635
Instruction
Box 2 of 2
176664B
Tire Carrier
860716
Hardware Kit
420091
Pivot Sleeve
520091
Pivot Bushing
176547
OE Wheel Spacer
602637
Male Rod End, RH, 3/8-24
602638
Male Rod End, LH, 3/8-24
602639
Female Connecting Rod, 3/8-24 x 3.00
176674
Bump Stop Spacer, 1/4"
176676
Bump Stop Spacer, 3/16"
Parts List
Qty.
Part No.
1
1
1
1
2
2
4
2
1
1
1
1
2
860717
1
176667
1
176668
1
176669
1
176670
1
176671
176634
Description
½"-13 Stover Nut
½" USS washer
½"-20 x 1.75 HHCS
½" -20 x 3.00 HHCS
½" Lock washer
½" – 13 x 5.5 HHCS
Thin Hex nut, 3/8-24 RH
Thin Hex nut, 3/8-24 LH
HHCS 3//-24 X 1.5
HHCS 3/8-16 X 2.5
3/8-24 Nylock Nut
3/8-16 Nylock Nut
3/8 SAE Washer
Self Drill Screw #14 X 1.5
Hardware Kit
Bump Stop, Top Support
Bump stop, Mid Support
Bump Stop, Lower Support
Quick Fist Rubber Clamp
Rear Door Cover Plate
CB Antenna Mount
88635
Rev A
Qty.
1
2
3
3
5
1
1
1
2
2
2
4
12
1
1
1
1
1
2
1
1
