Absco Industries

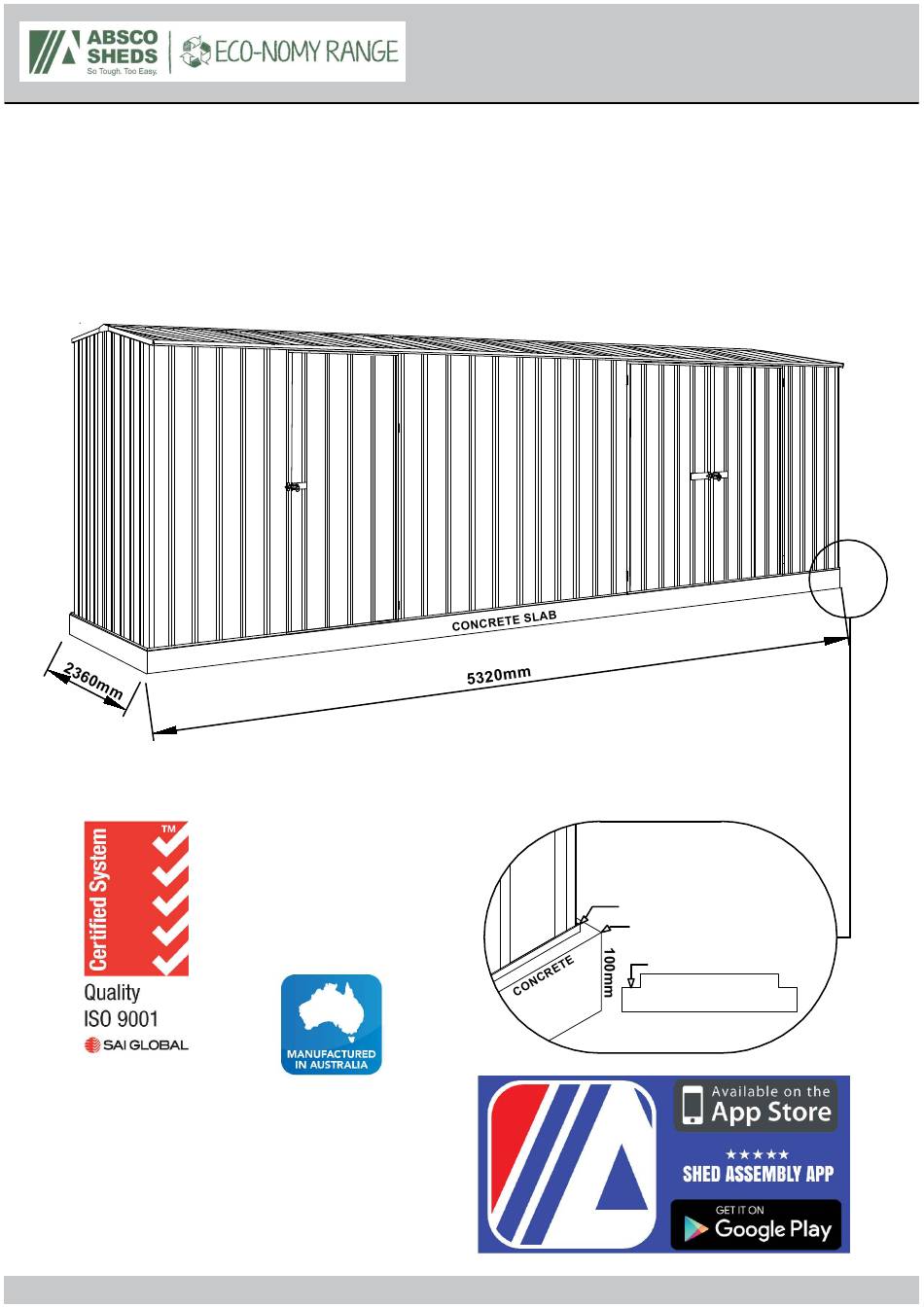

ECO Shed Model: J52233WECOK
FRONT: 5.22m
SIDE:
2.26m
HEIGHT: 2.00m
WHEN LAYING YOUR CONCRETE
SLAB, ENSURE THERE IS A
REBATED EDGE 25mm DEEP
AROUND THE PERIMETER
BOTTOM CHANNEL
REBATED EDGE
THIS WILL HELP WATER EGRESS
FROM THE BASE OF THE SHED
75mm WIDE REBATE
CONCRETE SLAB
We thank you for choosing an Australian made
shed. For further assistance please visit our detailed
instructional video library at
Http://www.abscosheds.com.au/watch-videos
At ABSCO Industries we are always looking to be
number ONE, so please let us know what you think
of our instructions. Feedback makes us better.
feedback@absco.com.au
ABSCO INDUSTRIES
ASSEMBLY INSTRUCTION MANUAL
SHED MODEL: J52233WECOK
15-11-2017
PAGE 01

Advertisement

loading
Need help?

Need help?

Do you have a question about the J52233WECOK and is the answer not in the manual?

Questions and answers

Related Manuals for Absco Industries J52233WECOK

Summary of Contents for Absco Industries J52233WECOK

  • Page 1 For further assistance please visit our detailed instructional video library at Http://www.abscosheds.com.au/watch-videos At ABSCO Industries we are always looking to be number ONE, so please let us know what you think of our instructions. Feedback makes us better. feedback@absco.com.au...
  • Page 2 Absco Industries ECO Shed Model: J52233WECOK GENERAL INSTRUCTIONS · Before commencing any assembly, read through these instructions in detail to gain a thorough understanding of assembly methods and associated details. · Unpack the carton and carefully identify and check off all the parts against the parts described and illustrated on pages three and four.

  • Page 3: Component Description

    Absco Industries ECO Shed Model: J52233WECOK COMPONENTS PACKING LIST - CHECK OFF ALL COMPONENTS MAIN PACK CARTON (PACK 1 OF 2) PART COMPONENT PART COMPONENT CHECK CHECK DESCRIPTION DESCRIPTION STEEL SHEET STEEL SHEET 1915mm X 773mm 1725mm X 773mm STEEL SHEET...
  • Page 4 Absco Industries ECO Shed Model: J52233WECOK COMPONENTS PACKING LIST - (CONT.) CHECK OFF ALL COMPONENTS FITTINGS & ACCESSORIES PACKET CONTENTS DOOR STRAP CHANNEL JOINER L: 165mm L= 200mm (7.9") CAP GABLE RIDGE L: 170mm PLATES RIDGE CAP PSTKSGL JOINER SINGLE DOOR FITTINGS PACK...
  • Page 5 Absco Industries ECO Shed Model: J52233WECOK COMPONENTS PACKING LIST - (CONT.) CHECK OFF ALL COMPONENTS MAIN PACK CARTON (PACK 2 OF 2) COMPONENT PART COMPONENT PART CHECK CHECK CHECK DESCRIPTION DESCRIPTION STEEL SHEET STEEL SHEET 1785mm X 773mm 1915mm X 773mm...
  • Page 6 Absco Industries ECO Shed Model: J52233WECOK COMPONENTS PACKING LIST - (CONT.) CHECK OFF ALL COMPONENTS 52233WCP CHANNEL PACK COMPONENT PART COMPONENT PART CHECK CHECK DESCRIPTION DESCRIPTION 54AL 54AR CHANNEL CHANNEL L = 1126.5mm L = 1126.5mm 54BL 54BR CHANNEL CHANNEL L = 1126.5mm...
  • Page 7 Absco Industries ECO Shed Model: J52233WECOK COMPONENTS PACKING LIST - (CONT.) CHECK OFF ALL COMPONENTS 52233WCP CHANNEL PACK (CONT.) COMPONENT PART COMPONENT PART CHECK CHECK DESCRIPTION DESCRIPTION 81CL 81CR CHANNEL CHANNEL L = 1126.5mm L = 1126.5mm 81DL 81DR CHANNEL CHANNEL L = 1126.5mm...
  • Page 8 Absco Industries ECO Shed Model: J52233WECOK INSTRUCTIONS FOR JOINING SPLICED CHANNELS NOTE: THE TEXT MARKED ON ALL PARTS MUST BE SHOWN ON THE SAME SIDE AS EACH OTHER. JOIN>> JOIN>> JOIN>> <<JOIN STEP 1. STEP 2. Position the channels and the CSJ...
  • Page 9 Absco Industries ECO Shed Model: J52233WECOK STEP 1. PRE-ASSEMBLY OF SPLICED CHANNELS NOTE: JOIN TOGETHER 20 X CHANNEL SECTIONS USING 10 X CHANNEL JOINERS (PART CSJ) NOTE: SOME CHANNELS HAVE 4 x 81C HOLES IN THEM - YOU WILL NEED...
  • Page 10 Absco Industries ECO Shed Model: J52233WECOK STEP 1. PRE-ASSEMBLY OF SPLICED CHANNELS NOTE: JOIN TOGETHER 16 X CHANNEL SECTIONS USING 8 X CHANNEL JOINERS (PART CSJ) NOTE: SOME CHANNELS HAVE 2 x 81A HOLES IN THEM - YOU WILL NEED...
  • Page 11 Absco Industries ECO Shed Model: J52233WECOK INSTRUCTIONS FOR JOINING SPLICED RIDGE BEAM STAGE 1: PUSH RIDGE BEAMS TOGETHER, MAKE SURE THERE IS A 50mm OVERLAP OF THE RIDGE CAP STAGE 2: INSERT RIDGE CAP JOINER INTO CONNECTED RIDGE CAPS. MAKE SURE JOINER HAS 225mm IN EACH RIDGE CAP.
  • Page 12 Absco Industries ECO Shed Model: J52233WECOK STEP 2. PRE-ASSEMBLY OF SPLICED RIDGE BEAM QTY. = 1 PHILLIPS DRIVER BIT QTY. = 8 SELF DRILLING TEK SCREW RIDGE BEAM 1521mm QTY. = 2 PARTS 97AL & 97AR QTY. = 1 PART ZARSP - 450mm LONG...
  • Page 13 Absco Industries ECO Shed Model: J52233WECOK STEP 2. PRE-ASSEMBLY OF SPLICED RIDGE BEAM QTY. = 1 PHILLIPS DRIVER BIT QTY. = 8 SELF DRILLING TEK SCREW RIDGE BEAM 1126.5mm QTY. = 2 PARTS 97BL & 97BR QTY. = 1 PART ZARSP - 450mm LONG...
  • Page 14 Absco Industries ECO Shed Model: J52233WECOK ABSCO INDUSTRIES ASSEMBLY INSTRUCTION MANUAL SHED MODEL: J52233WECOK 15-11-2017 PAGE 14...
  • Page 15 Absco Industries ECO Shed Model: J52233WECOK ABSCO INDUSTRIES ASSEMBLY INSTRUCTION MANUAL SHED MODEL: J52233WECOK 15-11-2017 PAGE 15...
  • Page 16 Absco Industries ECO Shed Model: J52233WECOK ABSCO ASSEMBLY INTRODUCTION The snaptite assembly system locks most perimeter channels to all roof and wall sheets without the need for tools and fasteners. To pre-assemble the four wall panels and two roof panels, the perimeter...
  • Page 17 Absco Industries ECO Shed Model: J52233WECOK JOINING RIDGE BEAMS DO NOT CUT OFF THE PROTRUDING SECTION AT EACH END OF THE FULL LENGTH RIDGE BEAM USING A HACKSAW, REMOVE THE PROTRUDING SECTION OF EACH RIDGE BEAM. THIS WILL ALLOW THE TWO SECTIONS TO BUTT UP NEATLY TO EACH OTHER.

  • Page 18: Door Panel Assembly

    Absco Industries ECO Shed Model: J52233WECOK DOOR PANEL ASSEMBLY ALL VERTICAL DOOR CHANNELS ARE INSTALLED IN THE REVERSE DIRECTION IN COMPARISON TO HORIZONTAL DOOR CHANNELS 20mm FLANGE 15mm FLANGE FOUR HOLE SET FOR PADBOLT CONNECTION ABSCO INDUSTRIES ASSEMBLY INSTRUCTION MANUAL...
  • Page 19 Absco Industries ECO Shed Model: J52233WECOK ALL VERTICAL DOOR CHANNELS ARE INSTALLED IN THE REVERSE DIRECTION IN COMPARISON TO HORIZONTAL DOOR CHANNELS 20mm FLANGE 15mm FLANGE ABSCO INDUSTRIES ASSEMBLY INSTRUCTION MANUAL SHED MODEL: J52233WECOK 15-11-2017 PAGE 19...

  • Page 20: Rear Panel Assembly

    Absco Industries ECO Shed Model: J52233WECOK SMALL PANEL LARGE PANEL REAR PANEL ASSEMBLY (1 Required) (1 Required) ABSCO INDUSTRIES ASSEMBLY INSTRUCTION MANUAL SHED MODEL: J52233WECOK 15-11-2017 PAGE 20...

  • Page 21: Side Panel Assembly

    Absco Industries ECO Shed Model: J52233WECOK SIDE PANEL ASSEMBLY (2 Required) ABSCO INDUSTRIES ASSEMBLY INSTRUCTION MANUAL SHED MODEL: J52233WECOK 15-11-2017 PAGE 21...
  • Page 22 Absco Industries ECO Shed Model: J52233WECOK LARGE ROOF PANEL ASSEMBLY (2 Required) NOTE: ONE ROOF PANEL WILL HAVE PART (86A) FITTED TO THIS END ONLY. 2/PRE-PUNCHED HOLES TO THIS END OF EACH SHEET WITH PART NOTE: ONE ROOF No. 81A FITTED...
  • Page 23 Absco Industries ECO Shed Model: J52233WECOK ROOF PANEL ASSEMBLY (2 Required) NOTE: ONE ROOF PANEL WILL HAVE PART (86A) FITTED TO THIS END ONLY. 2 x PRE-PUNCHED NOTE: ONE ROOF HOLES TO THIS PANEL WILL HAVE END OF EACH PART (86A) FITTED SHEET WITH PART TO THIS END ONLY.

  • Page 24: Front Panel Assembly

    Absco Industries ECO Shed Model: J52233WECOK FRONT PANEL ASSEMBLY ABSCO INDUSTRIES ASSEMBLY INSTRUCTION MANUAL SHED MODEL: J52233WECOK 15-11-2017 PAGE 24...
  • Page 25 Absco Industries ECO Shed Model: J52233WECOK FRONT PANEL ASSEMBLY NOTE: NUTS AND BOLTS (SUPPLIED) MAY BE USED INSTEAD OF POP RIVETS (SUPPLIED) BY SIMPLY ENLARGING THE HINGE HOLE SETS IN THE JAMB USING A 4MM DRILL BIT NOTE: The two holes required to connect the padbolt hasp for each door have not been pre-punched, to allow for proper alignment.
  • Page 26 Absco Industries ECO Shed Model: J52233WECOK FRONT DOOR PANEL ASSEMBLY ABSCO INDUSTRIES ASSEMBLY INSTRUCTION MANUAL SHED MODEL: J52233WECOK 15-11-2017 PAGE 26...
  • Page 27 Absco Industries ECO Shed Model: J52233WECOK DOOR PANEL ASSEMBLY NOTE: Nuts and bolts (supplied) may be used instead of pop rivets (supplied) by simply enlarging the hinge hole sets in the jamb using a 4mm drill bit NOTE: The two holes required to connect the padbolt hasp for each door have not been pre-punched, to allow for proper alignment.
  • Page 28 Absco Industries ECO Shed Model: J52233WECOK REFER TO PAGE 4 FOR MID-FRAME MID-FRAME DETAILS PARTS AND ACCESSORIES PART C1106 PART C1704 80mm FRAME ASSEMBLY AN EASY WAY TO ENSURE THAT THE ANGLE AT THE TOP OF THE MID-FRAME IS CORRECT IS TO USE THE GABLE WALL PANEL AS A TEMPLATE TO LAY THE SECTIONS OUT.
  • Page 29 Absco Industries ECO Shed Model: J52233WECOK MID-FRAME ASSEMBLY x 19 SECURE RIDGE x 24 PLATES TO APEX PLATES 2290 3033 SLAB CENTRE LINE SLAB SIZE: 5323 x 2363 (REFER: PANEL CONSTRUCTION) 45mm TEK SCREW WALL PANEL 2 WALL PANEL 1...
  • Page 30 Absco Industries ECO Shed Model: J52233WECOK PANEL CONSTRUCTION NOTE: TAKE CARE TO ENSURE THAT BOTH FRONT AND REAR WALL PANELS ARE NOT POSITIONED UPSIDE DOWN. THE TOP CHANNEL OF EACH PANEL IS PRE-PUNCHED FOR ATTACHING ROOF SHEETS, THE BOTTOM CHANNELS ARE NOT.
  • Page 31 Absco Industries ECO Shed Model: J52233WECOK ROOF CONSTRUCTION SECURE EACH RIDGE BEAM TO EACH RIDGE PLATE WITH 4 X 16mm SELF INSIDE VIEW OF FIXING DRILLING TEK SCREWS. SECURE PEAK BRACE MOVE THE OTHER ROOF PANEL TO RIDGE BEAM AND...
  • Page 32 Absco Industries ECO Shed Model: J52233WECOK FINAL CONSTRUCTION BEND THE TOP AND BOTTOM FLANGES AS SHOWN, THEN HOOK THE BOTTOM FLANGES UNDER THE TOP CHANNEL AND SCREW THE TOP FLANGES FOR BOTH AS SHOWN GABLE CAPS ANCHORING OF SHED LOCATION OF 21...
  • Page 33 Absco Industries ECO Shed Model: J52233WECOK ABSCO CENTRE MID-FRAME ASSEMBLY ASSEMBLY SUPPORT PHOTOGRAPHS STEP 1A, B, C: Draw pattern on concrete, in accordance with the dimensions detailed in the assembly instruction. STEP 2A, B, C: Understand where components are to be...
  • Page 34 Absco Industries ECO Shed Model: J52233WECOK ABSCO INDUSTRIES ASSEMBLY INSTRUCTION MANUAL SHED MODEL: J52233WECOK 15-11-2017 PAGE 34...
  • Page 35 Absco Industries ECO Shed Model: J52233WECOK ABSCO INDUSTRIES ASSEMBLY INSTRUCTION MANUAL SHED MODEL: J52233WECOK 15-11-2017 PAGE 35...
  • Page 36 Absco Industries ECO Shed Model: J52233WECOK ABSCO INDUSTRIES ASSEMBLY INSTRUCTION MANUAL SHED MODEL: J52233WECOK 15-11-2017 PAGE 36...
  • Page 37 Absco Industries ECO Shed Model: J52233WECOK ABSCO INDUSTRIES ASSEMBLY INSTRUCTION MANUAL SHED MODEL: J52233WECOK 15-11-2017 PAGE 37...
  • Page 38 Absco Industries ECO Shed Model: J52233WECOK ABSCO INDUSTRIES ASSEMBLY INSTRUCTION MANUAL SHED MODEL: J52233WECOK 15-11-2017 PAGE 38...
  • Page 39 Absco Industries ECO Shed Model: J52233WECOK ABSCO INDUSTRIES ASSEMBLY INSTRUCTION MANUAL SHED MODEL: J52233WECOK 15-11-2017 PAGE 39...
  • Page 40 Absco Industries ECO Shed Model: J52233WECOK ABSCO INDUSTRIES ASSEMBLY INSTRUCTION MANUAL SHED MODEL: J52233WECOK 15-11-2017 PAGE 40...
  • Page 41 THE CUSTOMER SERVICE MANAGER, ABSCO INDUSTRIES, PO BOX 119 ACACIA RIDGE QLD AUSTRALIA 4110 PHONE: 1800 029701 FAX: 07-33441191 EMAIL: warranty@absco.com.au...
  • Page 42 Absco Industries ECO Shed Model: J52233WECOK ABSCO SHEDS - STORAGE GUIDELINES ABSCO SHEDS include garden sheds, garden beds, storage units, aviaries, garages, awnings and carports. ABSCO SHEDS are designed to be weatherproof for normal weather conditions. In the event of extreme weather conditions such as heavy rain, combined with high wind gusts, the ridge capping, sheeting joins, screw fixings etc., may exhibit minor deformations which may allow some water entry.
