Summary of Contents for Fervi A030/30A

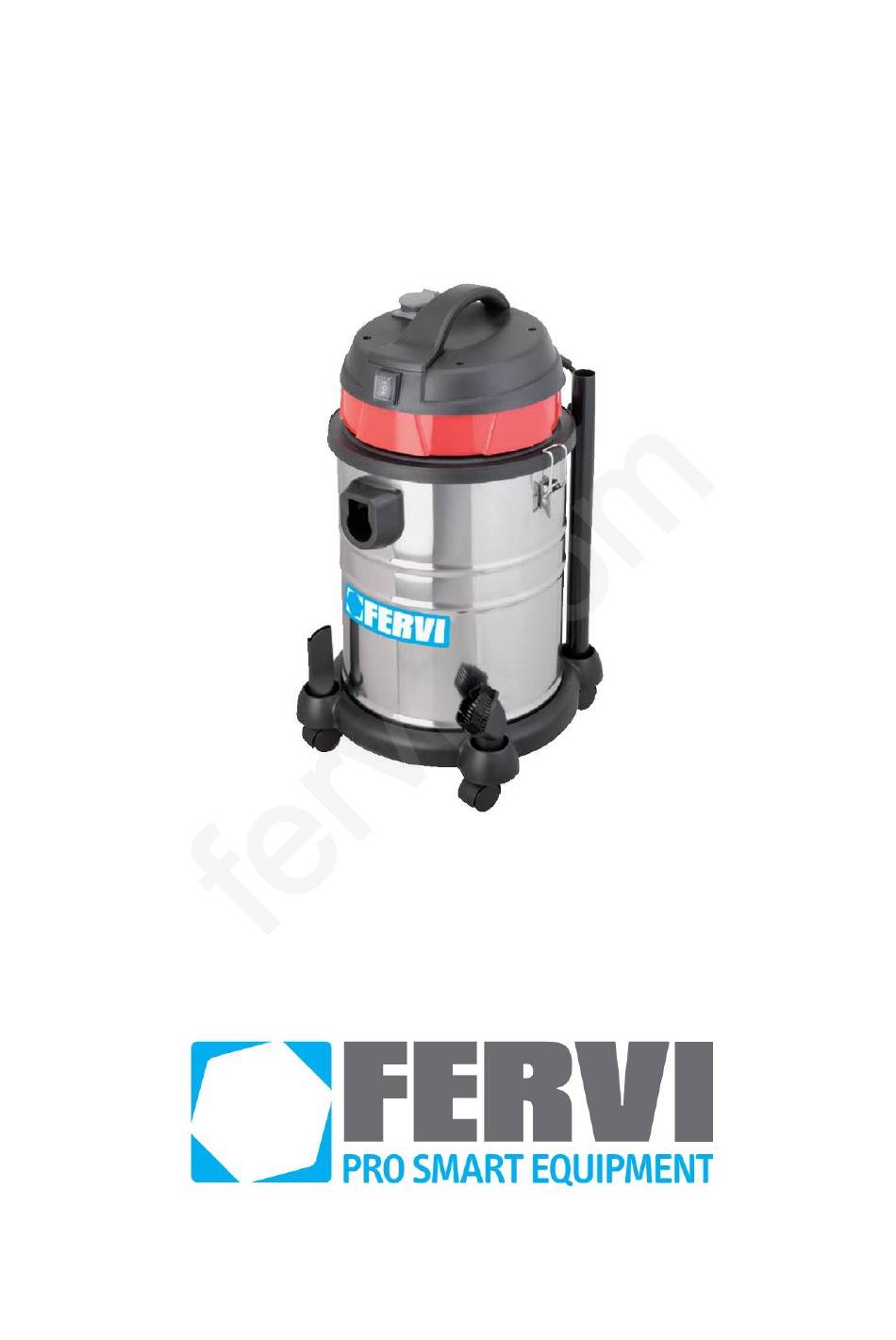

- Page 1 USE AND MAINTENANCE MANUAL Industrial wet and dry vacuum cleaner with accessories Art. A030/30A ORIGINAL INSTRUCTIONS...
- Page 2 Manual on the date of issuance and listed herein; On the other hand, the machine may also be subject to important technical changes in the future, without the manual being updated. Therefore, see FERVI for information about modifications that could be implemented. REV. 3 March 2014...
-
Page 3: Table Of Contents
MACHINES AND ACCESSORIES CONTENTS Preface..........................5 SAFETY WARNINGS .................. 6 General safety rules for machine tools ................6 Safety rules for electrical machine equipment ..............8 Technical support......................8 Other provisions ......................8 TECHNICAL SPECIFICATIONS ..............9 DESCRIPTION OF THE VACUUM .............. 10 Description of the main parts..................10 Accessories ......................... - Page 4 The purpose of this manual is to provide the knowledge necessary for the use and maintenance of the Industrial wet and dry vacuum cleaner Art. A030/30A and create a sense of responsibility and knowledge of the possibilities and limits of the device entrusted to the operator.
-
Page 5: Preface
MACHINES AND ACCESSORIES RAPHIC REPRESENTATION OF SAFETY OPERATIONAL AND RISK WARNINGS The following boxes are designed to attract the attention of the reader / user for the proper and safe use of the machine: Pay attention This highlights behavioural rules to prevent damage to the machine and/or the occurrence of dangerous situations. -
Page 6: Safety Warnings
MACHINES AND ACCESSORIES 2 SAFETY WARNINGS 2.1 General safety rules for machine tools Risks associated with the use of the machine Do NOT underestimate the risks related to the use of the machine and stay focused on the work you are carrying out. Risks associated with the use of the machine Despite the implementation of all safety devices for safe use of the machine, it is necessary to take note of all the accident prevention requirements highlighted in various parts of this... - Page 7 MACHINES AND ACCESSORIES 3. Do not start the machine in an enclosed or poorly ventilated area, or in the presence of a flammable and/or explosive atmosphere. Do not use the machine in damp and/or wet locations, or those exposed to rain or humidity. 4.
-
Page 8: Safety Rules For Electrical Machine Equipment
MACHINES AND ACCESSORIES 2.2 Safety rules for electrical machine equipment Risks associated with the use of the machine 1. Do not modify the electrical system in any way. Any attempt in this regard may jeopardize the operation of electrical devices, thus causing malfunction or accident. 2. -
Page 9: Technical Specifications
MACHINES AND ACCESSORIES 3 TECHNICAL SPECIFICATIONS Model Art. A030/30A Voltage/Power supply frequency (V/Hz) 230/50 Vacuum motor power (W) 1400 Maximum connectable tool power (W) 1600 Drum capacity (l) Air flow rate (l/s) Empty weight (with drum) (kg) Vacuum dimensions (mm) -
Page 10: Description Of The Vacuum
4 DESCRIPTION OF THE VACUUM 4.1 Description of the main parts The Vacuum Art. A030/30A is a suction device for industrial use, suitable for the collection of dust, small particles and also liquids (after removing the internal filter). Handy, simple to use, easy to open for emptying and can be inspected for maintenance purposes without difficulties. -
Page 11: Accessories
MACHINES AND ACCESSORIES 4.2 Accessories Figure 2 – Accessories Hose Large brush Extension cord Round brush Dust filter Short crevice tool Page 11 of 27... -
Page 12: Identification Plate
MACHINES AND ACCESSORIES 4.3 Identification plate The identification plate is affixed to the upper cover of the vacuum (Figure 3). Figure 3 – Identification plate Page 12 of 27... -
Page 13: Caution And Warning Pictograms
MACHINES AND ACCESSORIES 4.4 Caution and warning pictograms. The machine has the following warning and attention pictograms (Figure 4): Figure 4 – Caution and warning pictograms Pictograms PLATE IN ITALIAN PLATE IN ENGLISH ATTENZIONE ATTENTION SCOLLEGARE IL CAVO UNPLUG THE POWER DI ALIMENTAZIONE CORD BEFORE OPENING PRIMA DI APRIRE... -
Page 14: Description Of Controls
Figure 5 – Start/stop switch 4.6 Envisaged conditions of use and environment The Vacuum Art A030/30A has been designed and built to collect, using suction, dust, small solid objects and even liquid (after removing the filter inside the drum). Other types of use, or the extension of use beyond that envisaged, does not correspond to the designation attributed by the manufacturer, and therefore the latter cannot accept any responsibility for any damage resulting therefrom. -
Page 15: Improper Use And Contraindications
MACHINES AND ACCESSORIES 5 IMPROPER USE AND CONTRAINDICATIONS The following actions, which obviously cannot cover the entire range of possible "misuse" of the machine are strictly forbidden. THE FOLLOWING IS STRICTLY PROHIBITED! Point the opening of the suction tube in the direction of people or animals. ... -
Page 16: Lifting And Moving
MACHINES AND ACCESSORIES 6 LIFTING AND MOVING The weight of the Vacuum Art A030/30A is 7 kg approx., therefore the operator can transport it by hand by the holding the handle on the upper cover. Lifting of the vacuum Check that the cover / motor assembly is properly attached to the drum below before lifting the vacuum. -
Page 17: Assembly And Commissioning
7 ASSEMBLY AND COMMISSIONING 7.1 Unpacking instructions The Vacuum Art A030/30A is supplied in a cardboard box. Before disposing of packaging, check that no parts of the machine, including the user manual or other documentation, are going to be thrown away. -
Page 18: Suction Of Solid Material
MACHINES AND ACCESSORIES 7.3 Suction of solid material Mounted the dust filter (air filter) onto the protection device of the suction nozzle of the motor. a) Insert the filter into the suction nozzle, and then rotate the locking screw in a clockwise direction (Figure 7). - Page 19 MACHINES AND ACCESSORIES SAFETY FLOAT VALVE FOR THE SUCTION OF LIQUIDS The vacuum is equipped with a float valve which closes the suction hole of the fan (Figure 9) in the event the level of the liquid collected in the drum is too high and there is a risk it might overflow and come into contact with the fan and motor.
-
Page 20: Using The Vacuum
MACHINES AND ACCESSORIES 8 USING THE VACUUM Precautions for use and safety The vacuum is not suitable for collecting: dusts which are toxic and/or flammable (hazardous); hot or corrosive residues; water or liquids from containers, sinks, tubs, etc. The vacuum is not suitable for use in areas "at greater risk of explosion". -
Page 21: Suction Of Liquids
MACHINES AND ACCESSORIES 6. At the end of operation, turn off the vacuum and disconnect the power plug from the wall socket, remove the cover and then throw the bag into the rubbish bin. To avoid deposits and encrustations forming in the suction duct and the fan it is recommended to suck in clean air for a few minutes at the end of each use. -
Page 22: Combined Use With A Power Tool
8.3 Combined use with a power tool The Vacuum Art A030/30A has a 230 V / 50 Hz socket which can be connected to an electrical device with maximum power of 1600 W. -
Page 23: Maintenance
MACHINES AND ACCESSORIES 9 MAINTENANCE Risk of injury All maintenance operations must be performed with the motor off and after unplugging the power cable from the wall socket. To keep your machine fully functionality for a long period, it is necessary to carry out maintenance as required, with precision and professionalism. -
Page 24: Disposal Of Parts And Materials
MACHINES AND ACCESSORIES 10 DISPOSAL OF PARTS AND MATERIALS Disposal of materials The disposal of packaging, waste and extracted dust, replaced parts and the machine as a whole at the end of its expected life, should be performed with respect for the environment; avoiding the pollution of soil, water and air and in any event respecting the national legislation and local regulations in force. -
Page 25: Troubleshooting
MACHINES AND ACCESSORIES 11 TROUBLESHOOTING The following table shows the main problems that can occur during operation. PROBLEM PROBABLE CAUSE SOLUTION While vacuuming, water Check the float valve and clean The float valve is blocked leaks from the head the slide rails While vacuuming, dust The filter is not in its housing Check the position and condition... -
Page 26: Parts List
MACHINES AND ACCESSORIES 12 PARTS LIST Ref. Description A30/30A/01 Upper handle A30/30A/02 Lower handle A30/30A/03 Electric socket A30/30A/04 Cover A30/30A/05 Switch A30/30A/06 Power supply cable A30/30A/07 Cable attachment clip A30/30A/08 Cable protection A30/30A/09 Hook up wires A30/30A/10 Safety valve A30/30A/11 Nylon A30/30A/12 Round cover... -
Page 27: Wiring Diagram
MACHINES AND ACCESSORIES 13 WIRING DIAGRAM Page 27 of 27...
