User Manual
product description
Device Name: TD-LTE wireless data terminal
Device Model: easytrans 800

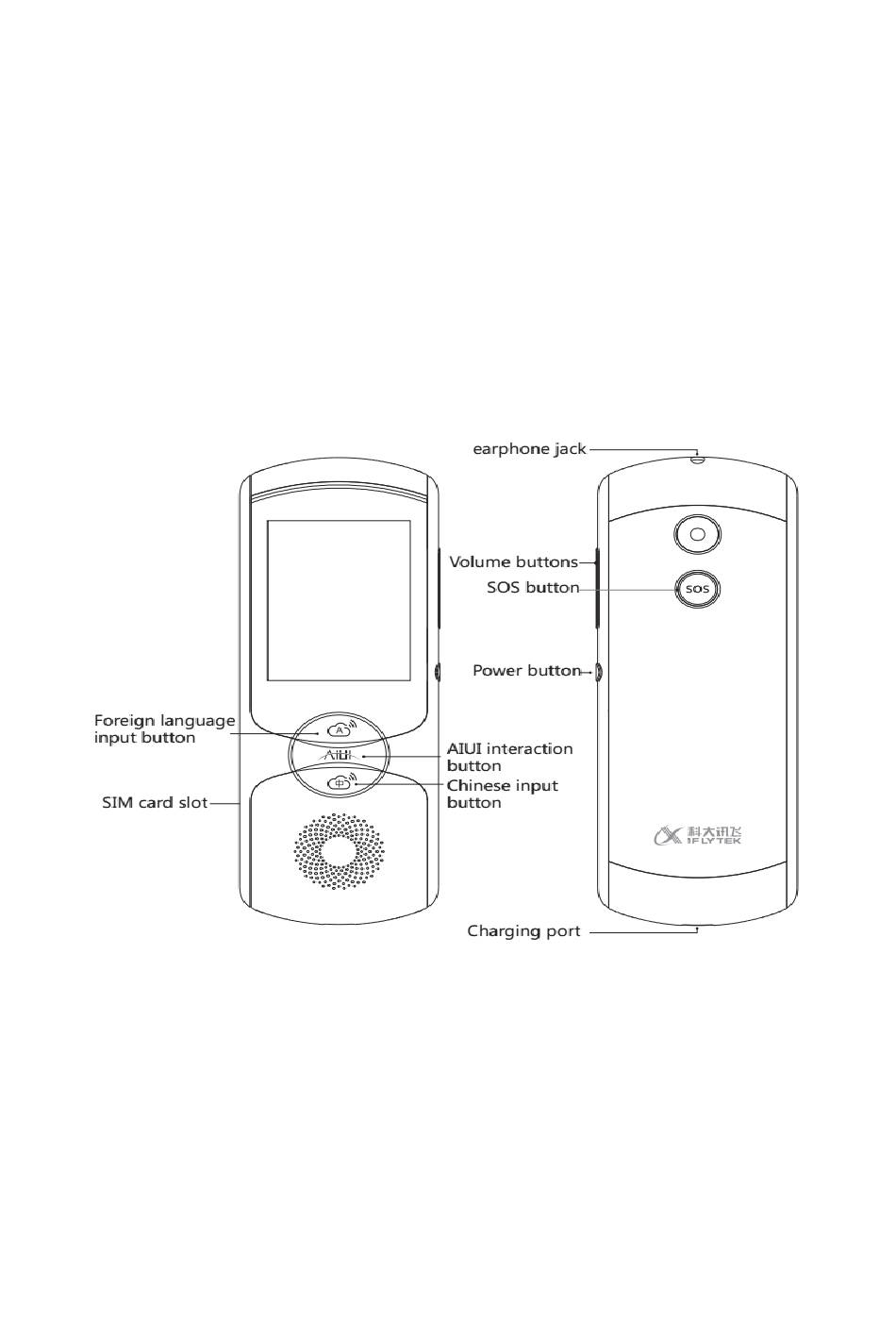

Appearance
Power button
·On: press and hold the power button for over 2 seconds to turn on the device
·Off: press and hold the power button for over 2 seconds to turn off the device
·Locking: press the power button when the screen is turned on to turn off and lock the
screen
·Unlocking: press the power button when the screen is turned off to turn on the screen and
prepare to unlock it
Foreign language input button
Press and hold the red button to input foreign language and Chinese translation will be
played after releasing the button.
Chinese input button
Press and hold the blue button to input Chinese and foreign language translation will be
played after releasing the button.
AIUI interaction button
Press and hold the AIUI button to input your instructions and interaction results will be

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EasyTrans 800 and is the answer not in the manual?

Questions and answers

Summary of Contents for IFLYTEK EasyTrans 800

  • Page 1 User Manual product description Device Name: TD-LTE wireless data terminal Device Model: easytrans 800 Appearance Power button ·On: press and hold the power button for over 2 seconds to turn on the device ·Off: press and hold the power button for over 2 seconds to turn off the device ·Locking: press the power button when the screen is turned on to turn off and lock the...

  • Page 2: Application Introduction

    played after releasing the button. Volume buttons Press “+” to turn up the volume and press “-” to turn down the volume. 3.5mm earphone jack Earphones and other audio devices of 3.5mm jack are supported. SIM card slot Insert a SIM card into the card slot. SOS button Press and hold the SOS button to contact our staff at the SOS platform.
  • Page 3 Enter iFLYTEK roaming through clicking iFLYTEK roaming application or pressing and holding the AIUI interaction button and speak “iFLYTEK roaming”. In “Data store”, you can choose corresponding country and purchase packages according to your requirements. WeChat and Alipay are supported as payment methods. You can check the details of your package in “My package ”...

  • Page 4: Internet Setting

    Please read all the following safety instructions before using the translation machine. Battery The battery of the translation machine can only be changed by iFLYTEK or the authorized vendors by iFLYTEK. Do not change the battery privately. Operation This product is made of metal and plastic.

  • Page 5: Maintenance

    cause damage to the machine. Maintenance Do not disassemble the translation machine or try to repair it privately as it may cause damages to the machine or personal injuries. If damage, breakdown or contacting with liquid happens, please contact the after-sales service department. Distraction Under some circumstances, the translation machine may distract you, which may cause injuries (For example, do not use the translation machine while driving).
  • Page 6 translation machine may be damaged, and it will shorten the battery life. Avoid putting the translation machine in environment with high temperature and big humidity differences. It is normal that the translation machine will generate heat while using it and charging the battery.

  • Page 7: Eu Declaration Of Conformity (Doc)

    DoC is issued under our sole responsibility and that this product: Product description: TD-LTE Wireless Data Terminal Type designation(s): easytrans 800 Trademark: iFLYTEK Batch / Serial number: Object of the declaration (further identification of the radio equipment allowing traceability;...
  • Page 8 Draft EN 301 489-1 V2.2.0 Draft EN 301 489-17 V3.2.0 Draft EN 301 489-52 V1.1.0 Draft EN 301 489-19 V2.1.0 EN 301 511 V12.5.1 EN 301 908-1 V11.1.1 EN 301 908-2 V11.1.2 EN 301 908-13 V11.1.2 EN 300 328 V2.1.1 EN 303 413 V1.1.1 EN 301 893 V2.1.1 EN 300 440 V2.2.0...
  • Page 9 Information Table for the Product’s RoHS Certification Name and Content of Hazardous Substances in the Product Part Name Lead Mercury Cadmium Hexavalent PBDE chromium Circuit board Metal shell SIM card slot Metal connector Antenna o: hazardous content in all the homogeneous materials of the part falls below the standard threshold of GB/T 26572-2011.
