Tools Needed:
Phillips Head Screwdriver
Marking Tool
Level

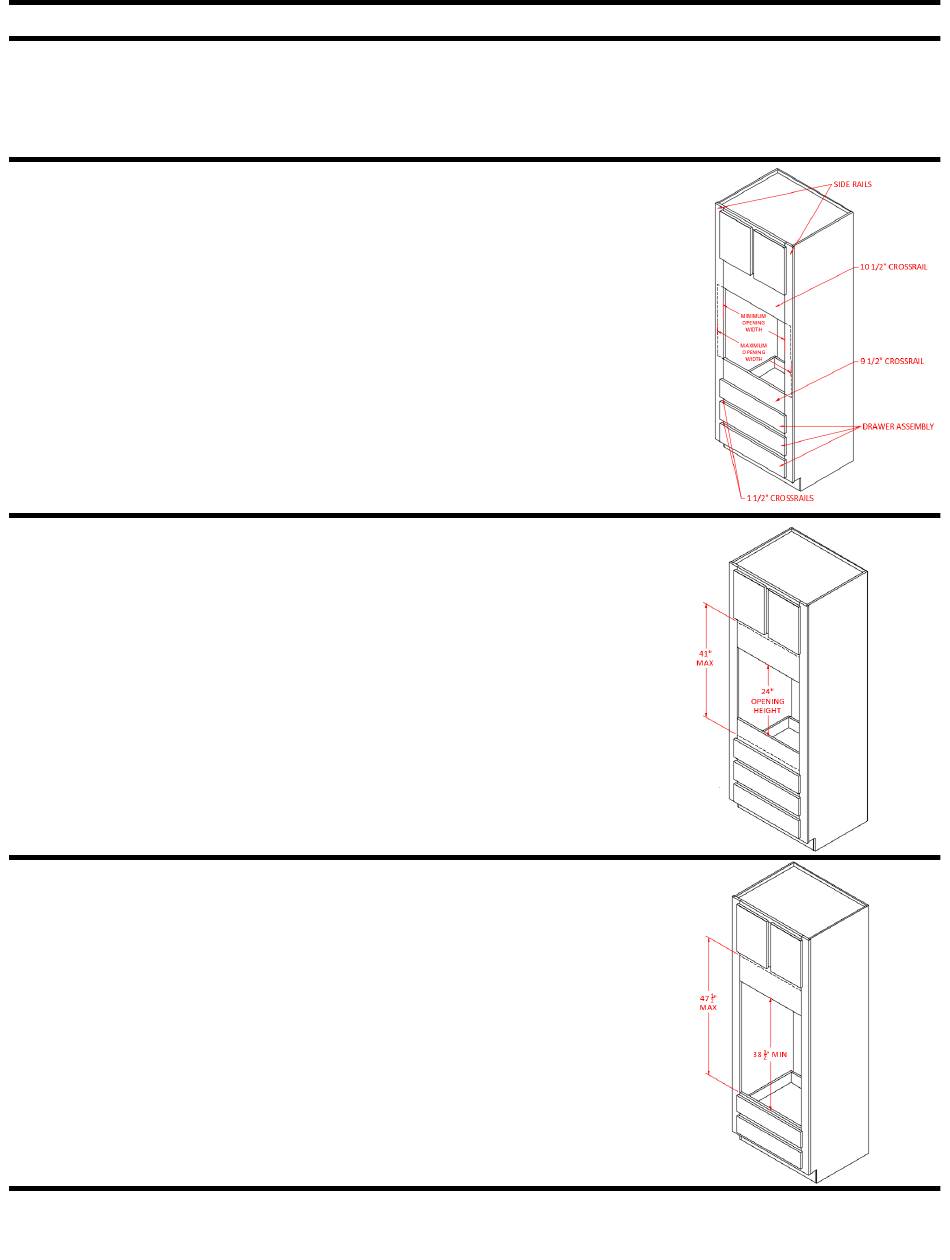

The oven cabinet you received is manufactured
with a minimum opening size of 27"W x 24" High
STEP 1
By cutting the required dimensions out of the side
rails, the width of the opening cabinet expanded to
31 1/2" wide.
By cutting the required dimensions out
STEP 2
of the top 10 1/2" crossrail and the
bottom 9 1/2" crossrail, the opening
height can be expanded to 41", leaving
1 1/2" crossrail on top and bottom of
the opening.
STEP 3
By removing the 9 1/2" crossrail and the top drawer
assembly, the height of the opening can be further
expanded to 47 1/2". Adjustments above the minimum,
up to the maximum, are made by cutting the required
dimensions out of the top 10 1/2" crossrail.
(2/11/2019)
Instructions for Oven Cabinet
Drill with 3/32" Bit
Tape Measure
Saw
Parts Included:
Oven Cabinet
Oven Supports
#8 x 3/4" Pan Head Screws
#6 x 1/2" Flat Head Screws
A5158R0
Advertisement
Summary of Contents for Mantra Oven Cabinet
- Page 1 Level #8 x 3/4” Pan Head Screws #6 x 1/2” Flat Head Screws The oven cabinet you received is manufactured with a minimum opening size of 27”W x 24” High STEP 1 By cutting the required dimensions out of the side rails, the width of the opening cabinet expanded to 31 1/2”...
- Page 2 By removing the next 1 1/2” crossrail and STEP 4 drawer assembly, the opening height can be expanded to 54”. Adjustments above the minimum, up to the maximum, are made by cutting the required dimensions out of the top 10 1/2” crossrail. STEP 5 To obtain the maximum opening height of the cabinet, remove the next 1 1/2”...
- Page 3 Check the bottom of the oven to be installed for leg/support locations. If oven utilizes legs/supports, place the oven supports onto oven cabinet rails to match this location. STEP 8 With the oven supports into place, mark the (2) hole locations per support onto the crossrail.
