TREX DeckLighting Installation Instructions

TREX DECKLIGHTING
®
Installation Instructions
HOW TO INSTALL TREX

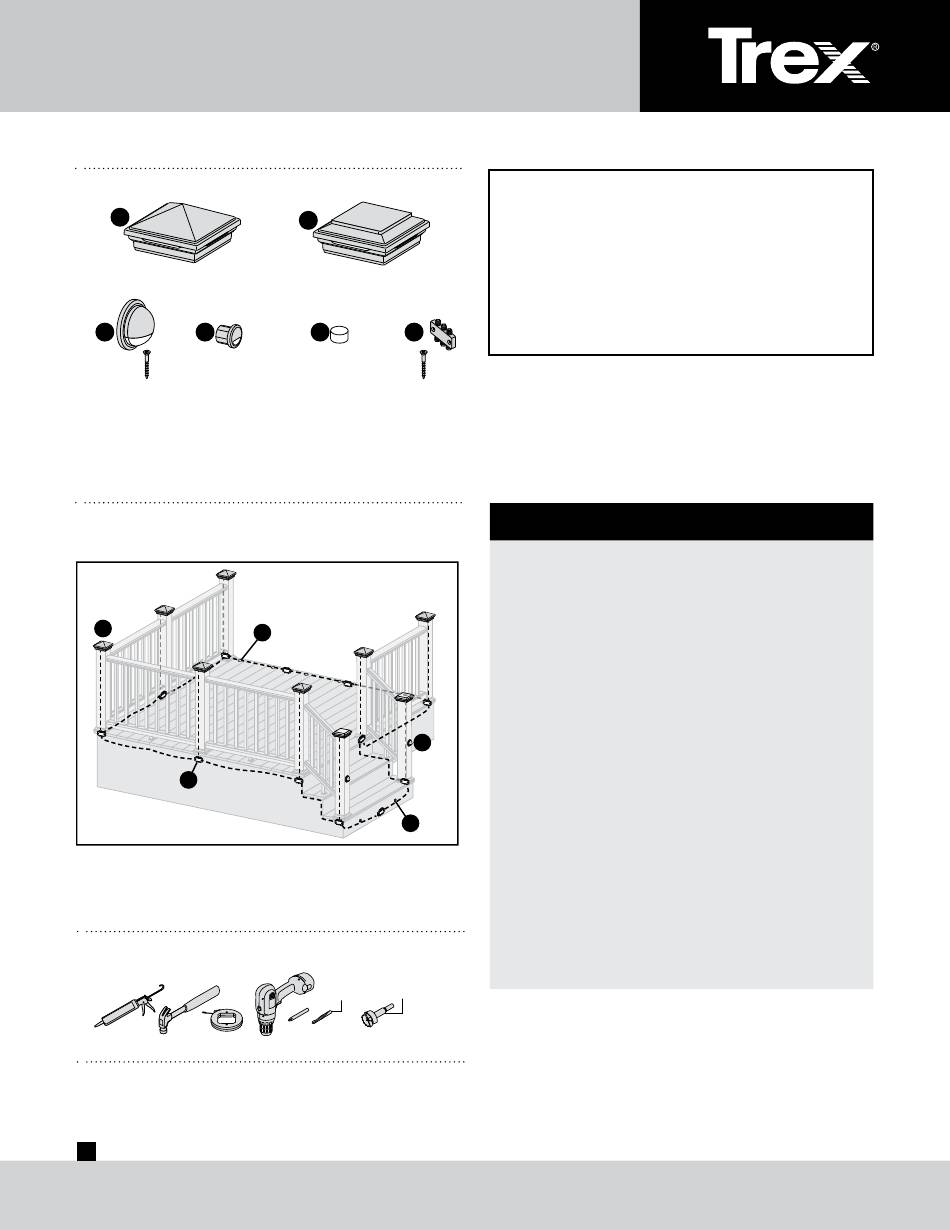

PARTS
A
Pyramid Post Cap Light
B C
x2 x2
Deck Rail Light Riser Light
» 5ft, 10ft, 20ft, 40ft, and 60ft connection/
extension wires sold separately (these are
male-to-male connection wires).
Lighting and Wiring Overview
A
E
NOTE: All wiring and splitters are mounted to the inside
of framing. Picture above is a general representation of
where to place them.
TOOLS NEEDED
1
www.SolarPostCapsDirect.com | (800) 878-7829 | Sales@SolarPostCapsDirect.com
™
DECKLIGHTING
®
A

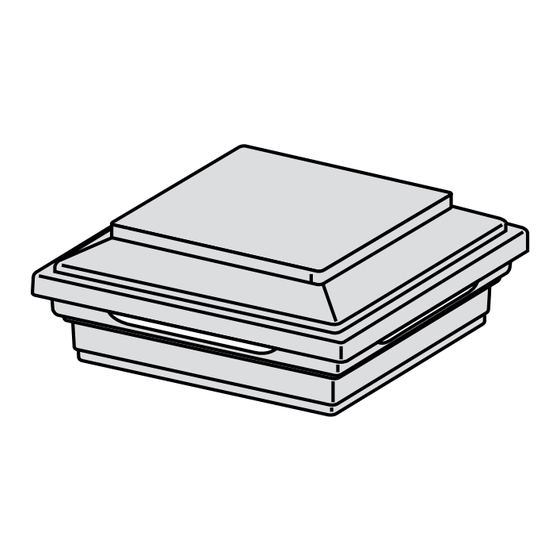

Flat Post Cap Light
D E
x2 x2
Recessed Deck Light Splitter
B
D
B
C
1"
1/2"
(25 mm)
(13 mm)
™
WARNING:
» DO NOT INSTALL DECKLIGHTING IN CLOSE
PROXIMITY TO POOLS OR HOT TUBS,
AS CHEMICALS FROM THE WATER CAN
DAMAGE LIGHTING FIXTURES.
» DO NOT INSTALL WIRING UNDER HEAVY
WEIGHT OR LOAD AS THIS CAN DAMAGE
WIRING.
NOTE: Avoid railing brackets and locations for deck rail
lights when running wires up posts.
NOTE: Install wiring and splitters before decking and rail-
C D
ing have been installed. DO NOT run wires between joists
and deck boards.
x2 x2 x2 x2 x2 x2 x2 x2
HELPFUL TIPS
» Please note that Trex lighting operates on DC
power. NEVER mix AC and DC fixtures on the
same circuit. Doing so will result in extremely
premature fixture failure and is not covered by
the Trex limited warranty. You must use a Trex
transformer on all Trex lighting installations.
» Never fully drive staples when securing wire.
Wire should move under staple.
» ALWAYS protect any wire that is close to the
ground with conduit or wire loom to prevent
rodent damage.
» Cap all unused female connections with caps
(provided) or weather-resistant silicone to
prevent water damage or corrosion.
» Each dimmer operates on a separate remote.
» It is recommended to have power source
installed and turned on when installing lights to
ensure all components work.
» When installing wiring, avoid extreme angles,
pressure, or tension on the wiring, as this can
cause pinching of the wiring and create a
lighting failure.
