R.U. Ready SportTIMER-3000 Operating Instructions Manual

Auto racing timer dual channel, controller, independent start/finish ir beams 4 or 6 digit big display optional, includes 2 sets of ir beams

Advertisement

Quick Links

SportTIMER-3000
Auto Racing Timer
Dual Channel
Controller, Independent START/FINISH
4 or 6 Digit Big Display (optional)
Operating Instruction Manual
Version 1

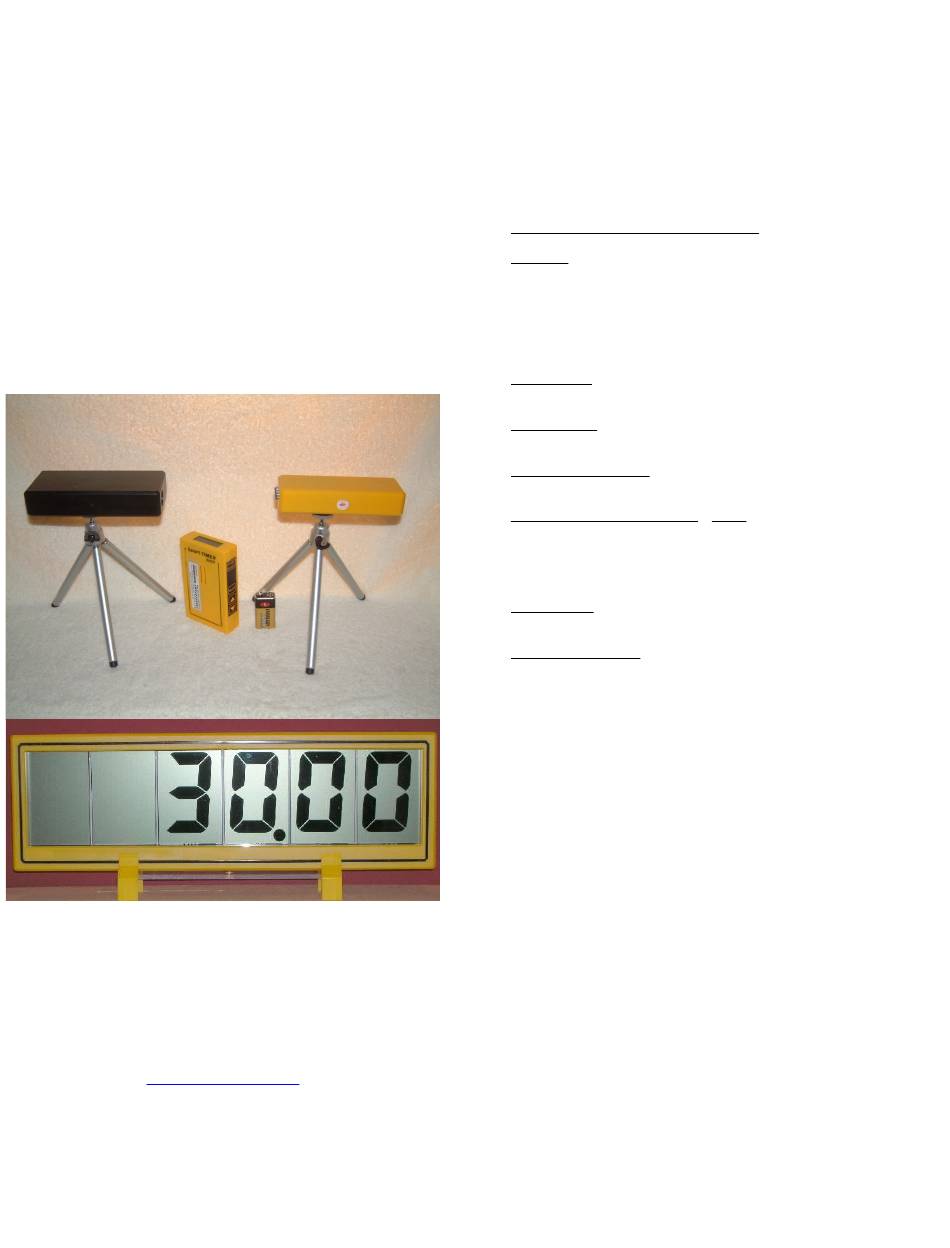

Includes 2 Sets of IR Beams (one set shown)
(optional mini-tripods and 6-digit display shown)
Distributed By:
THUNDERPAWS Racing Equipment
P.O. Box 3033
Leslie, MO 63056
573-484-0030
support@raceqp.com
www.raceqp.com
IR Beams
July 17, 2009
Version 1.0
Auto Racing Timer
Controller, START and FINISH Beams and Display
Thank you for purchasing our SportTIMER-3000 Controller, Beams and
Display. A portable, flexible and economic answer to your timing and
scoring needs.
Please check the shipping
components on your order were received undamaged:
Controller, 2 sets of IR Beams (consisting of a Transmitter and Receiver),
Beam cables, Optional Tripod Mounts, Optional Big LCD Display with
9/110 Volt AC Power Supply, optional Special Wiring Harness.
A Brief Description of the Components:
Controller
A yellow in color, small box, which has a small LCD Display, a four button
keyboard and a RJ9 (telephone style jack on the side) Turn the Controller
ON by pressing and holding the START/RESET button for 3 seconds. If
the Countdown Timer beep is turned ON, it will beep when it comes on.
Turn the Controller OFF by pressing and holding the MODE button for 3
seconds.
IR Beam Set – Consisting of a black box (the Receiver) and a small
yellow box (the Transmitter)
Beam Cables - Custom length RJ11/RJ11 Cable (From Beam to
Controller). Optional Special Wiring Harness
Optional Tripod Mounts Used to position IR Beam at START/FINISH line.
Also used to hold the optional Big Display upright on a flat surface.
Big LCD Display (If Purchased) - Either a 6.75" x 14.5" (4 Digit Display)
or 6.75 x 21" (6 Digit Display)
window on one side. It can be used with either the enclosed AC Adapter,
or a 9VDC Alkaline Battery. It is turned on with the small black button on
left side of Display - Up for 'On' and Down for 'Off'.
Power Supply 9/110 Volt AC Power Adapter that can be used if 110 Volt
Power is available, included with a Big Display.
Operating Instructions - which you are now reading.
(Components may not all be exactly as shown due to manufacturing revisions)
The Auto Racing Timer offers multiple configurations
of START and STOP functions
Independent START & FINISH lines using IR Beams
Manual pushbutton START, IR Beam STOP
IR Beam START, manual pushbutton STOP
Manual pushbutton START and STOP (stopwatch mode)
with or without IR Beams attached
Multiple START/STOP IR Beams – Any START Beam
STARTS, any STOP Beam STOPS Timer (Requires Special
Wiring Harness and other parts)
Some functions may require additional parts or cables
(not included)
box
to
make sure all
yellow case with a clear plastic display
Junly 17, 2009
Version 1.0
