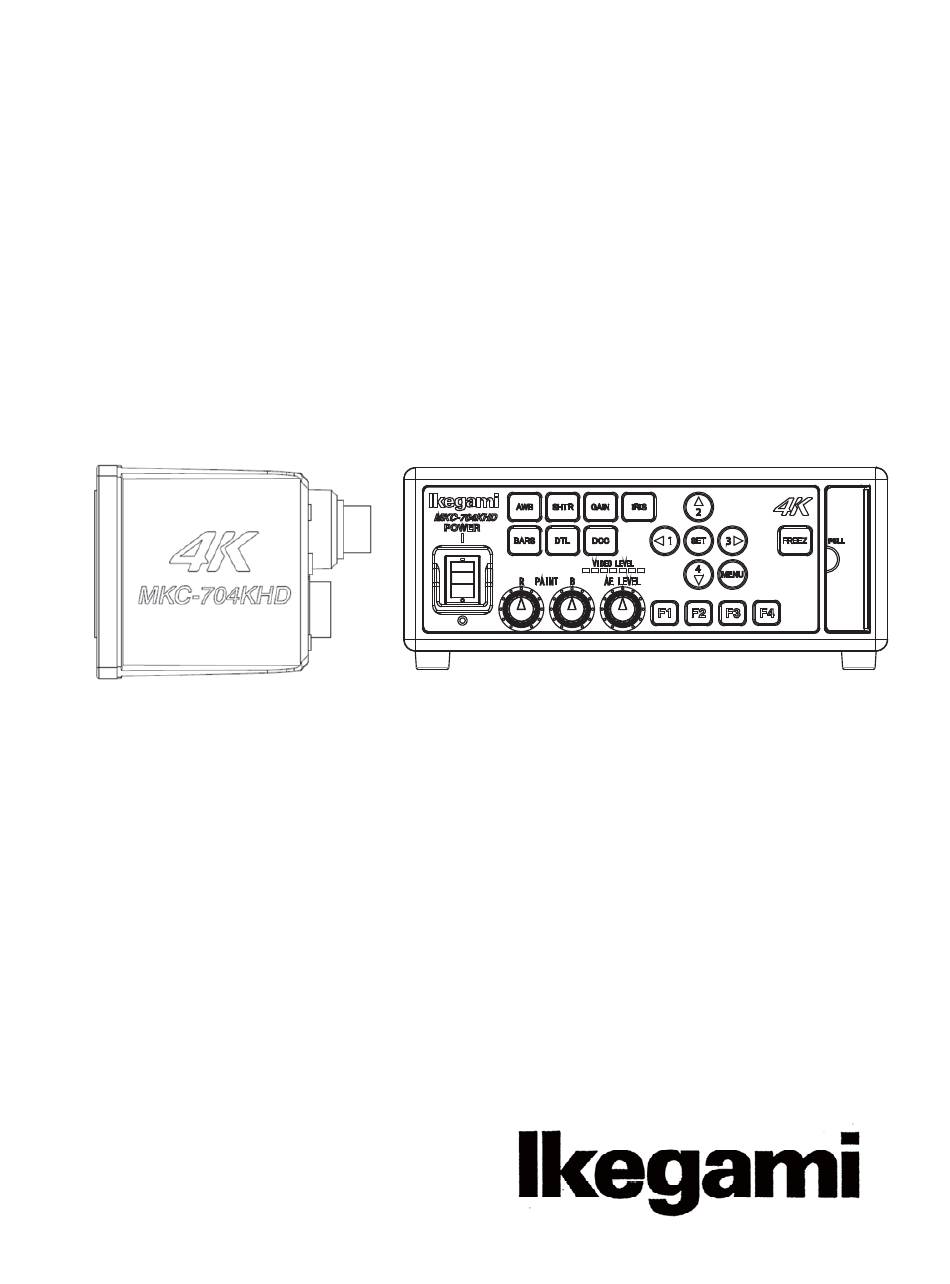

- Page 1 MKC-704KHD Digital Process Compact 3CMOS Color Camera Operation Manual...
- Page 2 The software that we have manufactured is copyrighted by IKEGAMI TSUSHINKI CO., LTD. You may not reproduce or alter it, in whole or in part, without permission.
- Page 3 Safety Precautions CAUTION When using the unit: For safe and correct usage Do not place a receptacle containing water or a Thoroughly read the “Safety Precautions” and the small metallic piece on the unit! If water spills in the unit, a fire or electric shock operation manual before using the unit.
- Page 4 Do not place the equipment in the way of difficult disconnecting the power plug. 601-1 Class IP rating of THE MKC-704KHD is IPX0. THE MKC-704KHD is a device for continuous operation. Hints on proper usage When using the unit: When using the unit in a water-place such as bathroom, poolside, etc., prevent water from flowing...
- Page 5 The MKC-704KHD is not AP APG equipment. The BATTERY for BT1 in MKC-704KHD, that should be used same model as below when you need to exchange it.
- Page 6 0.5 cycle for 0.5 cycle hospital environment. If the user power supply input 40% Ut 40% Ut of the MODEL MKC-704KHD lines. (60% dip In Ut) (60% dip In Ut) requires continued operation for 5 cycle for 5 cycle...
- Page 7 Guidance and manufacturer's declaration - electromagnetic emissions The Model MKC-704KHD is intended for use in the electromagnetic environment specified below. The customer or the user of the Model MKC-704KHD should assure that it is used in such an environment. Immunity test...
-
Page 8: Table Of Contents
Table of Contents Overview ..........................8 Names and Functions of Parts ................... 8 2.1. Camera Head ......................8 2.2. CCU Front ........................9 2.3. CCU Back ........................11 Service..........................13 3.1. Connection Example ....................13 3.2. Powering Up ......................15 3.3. - Page 9 5.3. Scene File ......................... 40 5.3.1 Saving a Scene File....................40 5.3.2 Initializing a Scene File ..................40 5.3.3 Setting a Scene File ..................... 41 Specification ........................43 6.1. Rating ........................43 6.2. Performance ......................44 6.3. Function ........................44 Appearances ........................
-
Page 10: Overview
1. Overview MKC-704KHD is the ultra-small HDTV camera equipped with the 1/3 inch 3CMOS sensor for medical field, microscope, slit lamp, operation theatre light, especially Endoscopy. The sensitivity of near infrared light has been improved. And the fluorescence, such as ICG and 5-ALA can be observed. It equips the 4K signal output as a standard, and it performs highly image resolution to detail. -
Page 11: Ccu Front
2.2. CCU Front Power button This is the power on/off Switch of the MKC-704KHD. White balance button This executes the automatic white balance function. (Page16) Electronic shutter button This controls electronic shutter speed automatically, and adjusts to the most suitable output level. - Page 12 Arrow keys This is used for selecting a menu item. And, it is possible to confirm the scene file of each key. Page22 Set button This is used for deciding about performance of the function in the menu item Menu button This opens a menu, which a user can set as desired, on a monitor screen.
-
Page 13: Ccu Back
2.3. CCU Back VBS OUT (SD) connector A VBS-input-compatible monitor etc. is connected here. A coaxial cable with a 75 impedance should be used for connection. S-VIDEO OUT (SD) connector An S-VIDEO-input-compatible monitor etc. is connected here. An S-VIDEO cable (option) is required for connection. - Page 14 To synchronize the phase of a video with another system, this inputs a synchronizing signal from that system. A 3-value sync (HD) is supported. SYNC connector To synchronize the phase of a video with another system, this outputs a synchronizing signal to that system.
-
Page 15: Service
3. Service 3.1. Connection Example MKC-704KHD camera head HDD/DVD recorder Foot switch S-VIDEO cable Camera cable MKC-704KHD CCU Supplied power cable 4KHD-SDI -compatible DVI-D cable HD-SDI-compatible coaxial cable coaxial cable DVI-D 4KHD-SDI -compatible DVI-compatible HD-SDI-compatible * The output from VIDEO OUT should be 75 terminated at the receiver. - Page 16 SW the IEC60529- IP1. DVI connector This connector outputs a digital signal. Connect a DVI cable to this connector. * Use a DVI cable with a ferrite core at both ends. Contact Ikegami if you are unable to obtain such a cable.
-
Page 17: Powering Up
3.2. Powering Up Before power-up, make sure that the external equipment, such as the camera head and a monitor, is connected properly. Power up the external devices such as a monitor Turn ON the main power switch on the CCU back. The supplied power cable should always be connected to the AC inlet on the CCU back. -
Page 18: Setting A White Balance
3.3. Setting a White Balance When using MKC-704KHD for the first time, or when the light source has been changed, adjust the White Balance. The white balance can be adjusted automatically. Operation Shoot a white photographic object on the screen largely, and press the white balance button. - Page 19 When “AWB ERROR” appears, the white balance is not adjusted successfully. Recheck the image pickup conditions (a white subject, brightness, etc.), and readjust the white balance. If the image level is too low. If the image level is too high. When the automatic adjustment is complete, the light of the auto white button will go out automatically.
-
Page 20: Adjusting A Paint
3.4. Adjusting a Paint After white balance adjustment it is possible with the MKC-704KHD to carry out fine adjustment of the red level and blue level/density of picture as desire of user. Operation 1. Turn the color correction volume (red) and the one (blue) to make adjustments. -
Page 21: Adjusting An Ae Level
3.5. Adjusting an AE Level The MKC-704KHD can adjust a shutter speed, sensitivity Iris gain, and an iris automatically, according to the preset exposure level. A screen becomes easy to see by raising the level when the screen is too dark, or reducing it when too bright. -
Page 22: Outputting A Still Image
3.6. Outputting a Still Image It is possible on the MKC-700HD to temporarily stop moving image output and switch to freeze frame output. Operation Press the freeze button. A still image will be output immediately. While a still image is output, the freeze button lights up. Freeze button To unfreeze the image, press the freeze button again. -
Page 23: Outputting Color Bars
3.7. Outputting Color Bars It is possible with the MKC-704KHD to output a color bar. This is used when adjusting the color monitor brightness, contrast, etc. Operation Press the color bar button. Color bars will be output immediately. While color bars are output, the color bar button is lit in green. -
Page 24: Selecting A Scene File
3.8. Selecting a Scene File By storing settings often used on the MKC-704KHD beforehand in a scene file, it is possible to read them at any time. A maximum of four scene files can be stored. Loading The arrow key corresponding to the currently selected scene file is lit. -
Page 25: Menu Operation
4. Menu Operation The MKC-704KHD has various kinds of functions that are very useful in service. A user can select and set these functions as desired. The basic procedure for operation is as follows. 4.1. Operation Procedure When you press the menu button on the CCU front, a menu will open on a monitor screen, where you can set various kinds of camera functions. -
Page 26: Picture
4.2. PICTURE 4.2.1 Exposure This is a setting for exposure of video. PICTURE>Exposure Measurement Area Middle Area Display AE Level Speed Middle Peak Ratio Shutter Auto Gain Auto High Sens. Iris Control Auto The 2nd hierarchy The 3rd hierarchy Item Defaults setting Item... -
Page 27: Level
4.2.2 Level This is a setting for level of video. PICTURE>Level Pedestal Flare Gamma White Shading Black Balance R Paint B Paint Knee The 2nd hierarchy The 3rd hierarchy Item Defaults setting Item Defaults setting Pedestal -128 127 Flare 0 50 Gamma -128 127 White Shading... -
Page 28: Dtl
4.2.3 DTL This is a setting for edge enhancement. PICTURE>DTL Gain Boost 20MHz Skin Gain Soft Slim Item Defaults setting Gain 128 127 Boost 20MHz [2MHz[ [26MHz] Skin Gain 128 127 Soft [ON] [OFF] Slim [ON] [OFF]... -
Page 29: Color
4.2.4 Color This is a setting for color correction. PICTURE>Color White Balance Chroma Matrix Color Correct The 2nd hierarchy The 3rd hierarchy Item Defaults setting Item Defaults setting White Balance [AWB] [ATW] [Manual] Manual Gain Red -128 Manual Gain Blue -128 Chroma -64 through 63... -
Page 30: Scene File
4.2.5 Scene File You can save or load the setting information as a scene file. Up to four scene files can be created. PICTURE>Scene File Scene Number No.1 Store Scene Ready Initialize Scene Ready Item Defaults setting Scene Number No.1 [No.1] [No.2] [No.3] [No.4] Store Scene Ready... -
Page 31: Function
4.3. FUNCTION 4.3.1 Function Mode This is a setting for other functions. FUNCTION>Function Mode Digital Zoom ×1.0 Flip DNR Level Real Time DPC Auto Contrast Fluorescein The 2nd hierarchy The 3rd hierarchy Item Defaults setting Item Defaults setting Digital Zoom x1.0 x1.0 x4.0... -
Page 32: Foot Switch 1
4.3.2 Foot Switch Set the behavior of a foot switch when operated. A maximum of four foot switch functions can be stored. FUNCTION>Foot Switch Foot Switch1 None Foot Switch2 None Foot Switch3 None Foot Switch4 None Item Defaults setting [None] [Flip] [Mirror] [Rotate] [ICG] [Fluorescein] [Zoom in] [Zoom Out] [A. -
Page 33: Function Key 1
4.3.3 Function Key Set the behavior of a function key when operated. A maximum of four function keys can be stored. FUNCTION>Function Key Function Key1 None Function Key2 None Function Key3 None Function Key4 None Item Defaults setting Function Key 1 None [None] [Flip] [Mirror] [Rotate] [ICG] [Fluorescein] [Zoom In] [Zoom Out] Function Key 2... -
Page 34: System
4.4. SYSTEM 4.4.1 Video Output Format This is a setting for an item about video signal. SYSTEM>Video Output Format Frame Rate 59.94fps SDI Output 1080i DVI Output 1080p SD Aspect Side Cut H Position V Position Genlock H Phase Genlock V Phase Center Marker Item Defaults... - Page 35 Example When it was changed to 50Hz from 59.94Hz in Frame Rate. SYSTEM>Video Output Format Frame Rate 59.94fps 50fps SDI Output 1080i DVI Output 1080p SD Aspect Side Cut H Position V Position Genlock H Phase Genlock V Phase Center Marker Processing appears SYSTEM>Video Output Format...
- Page 36 Yes/No appears If the following indication goes out, it's chosen whether `Yes' is chosen and continued or the `No' be chosen and canceled. It will be returned in the previous state automatically in several seconds without doing everything. SYSTEM>Video Output Format Frame Rate 50fps SDI Output...
-
Page 37: System/Information
4.4.2 System/Information To reset the set value in the state of the time of shipment from factory, record of setting data and reading and set on which the menu screen is fixed can be performed here. The version of the software appears. SYSTEM>System/Information Initialize Ready... -
Page 38: Option
4.5. Option MKC-704KHD has the following OPTION. CVA-300R/RI FC-300R/RI CVA-300R/RI is a surgical microscope adapter for MKC-704KHD. FC-300R/RI is a remote control for the CVA-300R/RI. Advanced features of the CVA-300R/RI, FC-300R/RI, please refer to the operation manual of CVA-300RI. CVA-300RI / FC-300RI are connected to a camera head... -
Page 39: Advance Use
SYNC input conditions: 3-value SYNC: 0.6 Vp-p / 75 5.1.1 Wiring Example Prepare two sets of the CCU and camera for MKC-704KHD. Connect the SYNC connector on the CCU (master) and the GENLOCK connector on the CCU (slave) with each other, using a coaxial cable. -
Page 40: Setting
5.1.2 Setting Observing the SYNC output waveforms of the master and the slave CCU, adjust PHASE so that H/V phases may become consistent with each other. The slave one (whose GENLOCK connector is connected) should be a target for the adjustment. - Page 41 You can set the position and size of a metering frame by using the part of the Slanted line. Setting the Position It is possible to move a frame of the slanted line part using in the CCU front ,and to fix the location of a metering frame using decision' button.( A fixed part is indicated by a white frame.) But, The size of the frame of the slanted line part which becomes a basis can't be changed.
-
Page 42: Scene File
metering Change the size of a frame. Canceling the frame When you would like to cancel a metering frame (a white frame) fixed, please move a slanted line frame to the frame which would like to cancel the metering frame. And press a 'decision' button. Saving a setting When a menu button of a front panel is pressed, it returns to the previous menu screen, and setting is preserved automatically. -
Page 43: Setting A Scene File
5.3.3 Setting a Scene File To apply the saved scene file, operate a front panel (Page22) or a foot switch, a function switch. - Page 44 (Blank page)
-
Page 45: Specification
6. Specification 6.1. Rating (1) Lens mount C-mount (2) Optical system RGB prism (3) Image pickup device 1/3-inch CMOS sensor x 3 Effective pixels: 1920 x 1080 (4) Scan mode Progressive scan (5) Aspect ratio H16 : V9 (6) External synchronization input 3-value SYNC: 0.6 Vp-p / 75 Note: The color frame in down-conversion will not be locked. -
Page 46: Performance
6.2. Performance (1) Resolution Horizontal:1000 TV lines Vertical 1000 TV lines (1080I 59.94/50 Hz) (2) S/N ratio 58 dB targeted ( and detail OFF) (3) Sensitivity Standard 2000lux F16/3200K or more (at the time of LIN MIX ON) (4) Registration Error Full Screen within 0.05% 6.3. -
Page 47: Appearances
7. Appearances 7.1. Camera Head Unit: mm 7.2. CCU... - Page 48 Ikegami Tsushinki Co., Ltd. © September 2016 Ikegami Tsushinki Co., Ltd. All rights reserved. Reproduction or duplication, without permission of Ikegami Tsushinki Co., Ltd. of editorial or pictorial content in whole or in part, in any manner, is prohibited. Specifications and design are subject to change without prior notice.
- Page 49 Ikegami Tsushinki Co., Ltd. 5-6-16, Ikegami, Ohta-ku, Tokyo, 146 Japan Phone: 03-5700-1111, Fax: 03-5700-1137 Ikegami Electronics (U.S.A.), Inc. 37 Brook Avenue, Maywood, New Jersey 07607, U.S.A. Phone: (201)368-9171, Fax: (201)569-1626 Ikegami Electronics (Europe) GmbH Ikegami strasse 1, D-41460 Neuss, Germany...
