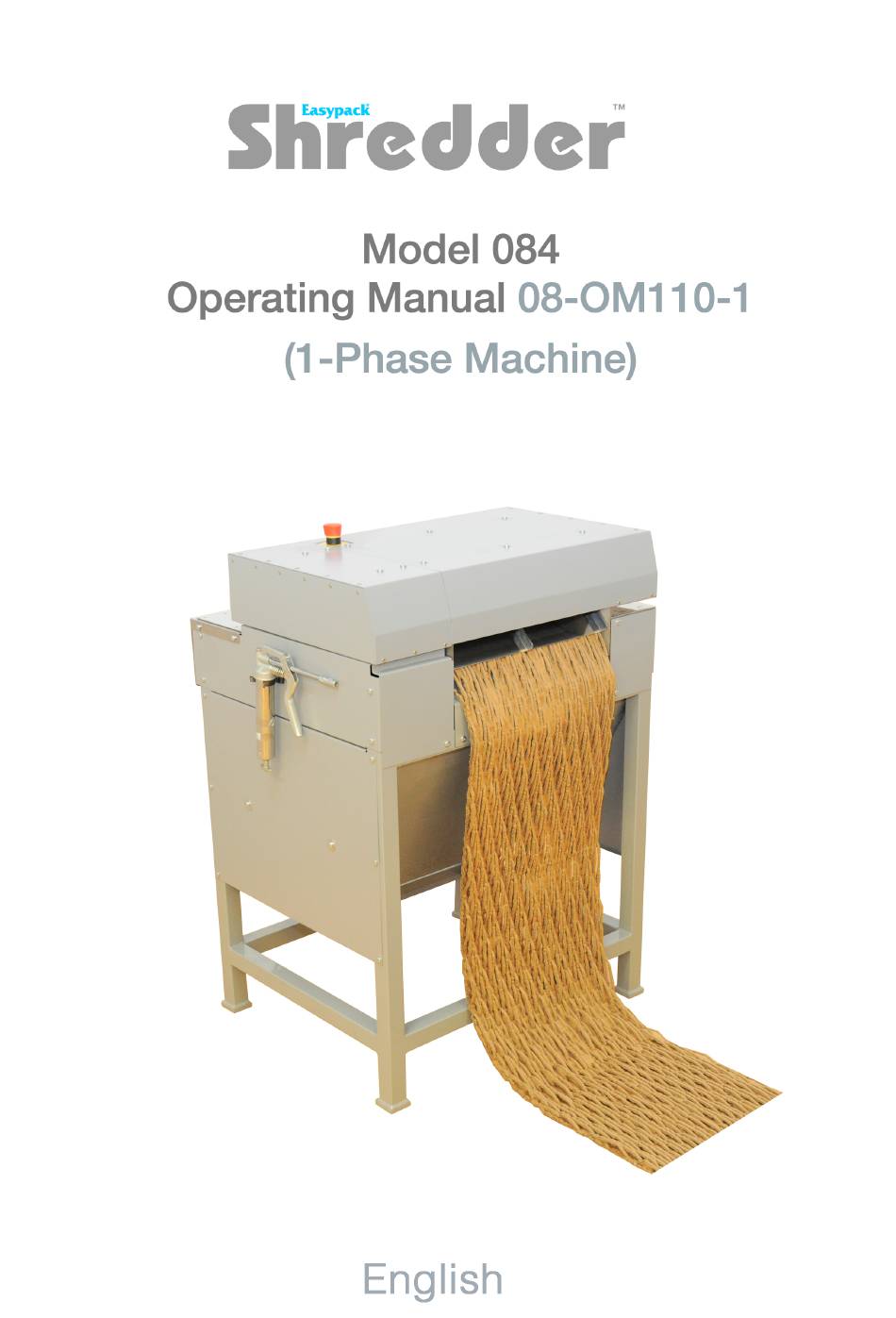

Summary of Contents for Easypack Shredder 084
-
Page 2: Table Of Contents
Contents Safety Information 3 3 3 3 Description and Purpose of Machine 4 4 4 4 Specification and Installation 5 5 5 5 Controls 6 6 6 6 Pre-start Checks 7 7 7 7 Instructions for Use 8 8 8 8 Maintenance 9 9 9 9 Troubleshooting... - Page 3 Safety Information It is important that this machine is installed, maintained and used correctly to avoid It is important that this machine is installed, maintained and used correctly to avoid It is important that this machine is installed, maintained and used correctly to avoid It is important that this machine is installed, maintained and used correctly to avoid the risk of injury.
- Page 4 Description and Purpose of Machine The Easypack Shredder converts surplus corrugated cardboard boxes into protective void fill material for transit packing. The resulting lattice structure allows flexibility for packing a variety of shapes and sizes. It is tough enough to prevent damage to heavy items.
- Page 5 Specification and Installation Specification Specification Specification Specification Dimensions 1056 (H) x 750 (W) x 615mm (D) Weight 180 kg Voltage 230V (±10%), 50Hz Max Power 1.7 kW Cardboard thickness 5-15mm thick Max cutting width 420mm wide Installation Installation Installation Installation The Machine must only be installed and operated in an area that is suitable for its use, with ample space for feeding flat boxes, and collection of the shredded lattice.
- Page 6 Controls Emergency Stop Button Emergency Stop Button Emergency Stop Button Emergency Stop Button A red mushroom push button is mounted on top of the machine. When pressed it locks down and stops the machine. Turn clockwise to reset. Power Indicator Power Indicator Power Indicator Power Indicator...
- Page 7 Pre-start Checks The machine is connected to the mains supply and the Power Indicator is illuminated. The Emergency Stop button is released (turn clockwise). Outfeed is clear of restriction to allow the shredded cardboard to exit.
-
Page 9: Maintenance
Maintenance Always disconnect the shredder from the power supply before removing any covers. Always disconnect the shredder from the power supply before removing any covers. Always disconnect the shredder from the power supply before removing any covers. Always disconnect the shredder from the power supply before removing any covers. The machine is to be serviced or repaired only by suitably trained or qualified personnel. -
Page 10: Troubleshooting
Inverter has not tripped out due to overload (switch machine off for 20 seconds to reset). If the above information does not clear the fault, contact Easypack for further assistance on 0845 838 0168. Please have the serial number of the shredder... -
Page 11: Spare Parts List
Spare Parts List Part No. Part No. Part No. Part No. Description Description Description Description 99-399 Grease gun 99-531 Spring clip for grease gun 99-972 Bearing 40 ID (for shredding wheel ‘split’ end) 99-974 Bearing 50 ID (for shredding wheel drive end) 99-451 Oil seal (for 40 ID bearing) 99-452... - Page 12 Spare Parts List Part No. Part No. Part No. Part No. Description Description Description Description 08-510 Front panel (electrical chassis access) 08-511 Side panel (same both sides) 08-512 Lower angled panel 08-515 Drive end top cover 08-516 Top main cover 08-450 Bar card restrictor (fasten to main top cover) 99-143...
-
Page 13: Wiring Diagram
Wiring Diagram... -
Page 14: Declaration Of Conformity
Machinery Directive 98/37/EC, the Electrical Equipment Directive (LVD) 73/23/EEC and its amendments and the Electromagnetic Compatibility Directive 89/336/EEC and its amendments. Manufacturer: Easypack Ltd Address Unit 1, The io Centre, Whittle Way, Arlington Business Park, Stevenage, Hertfordshire,...
